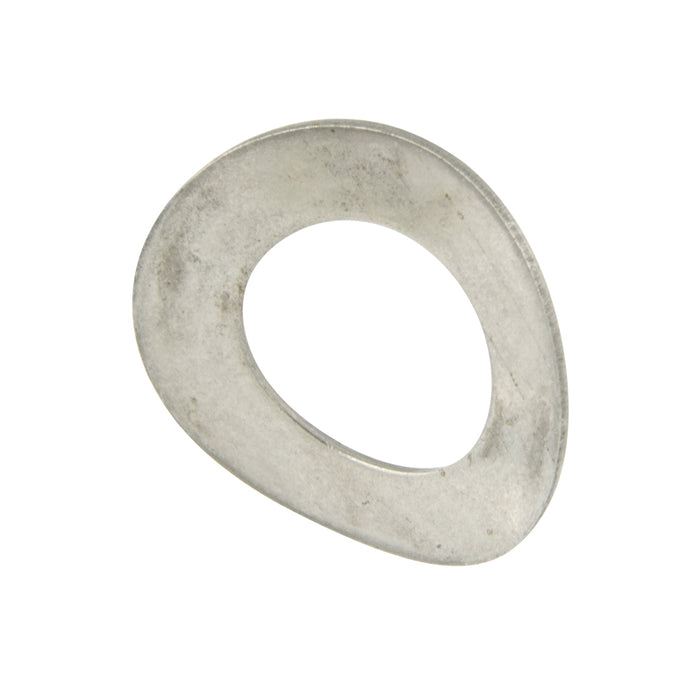

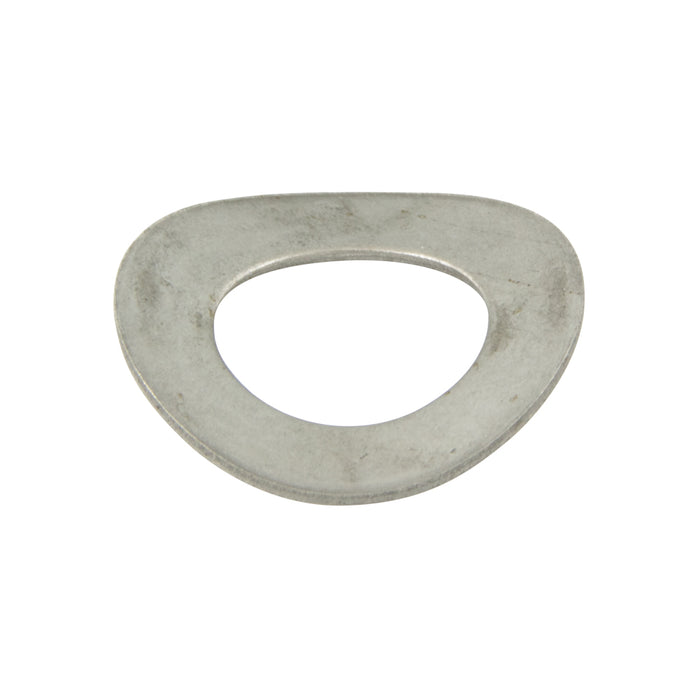

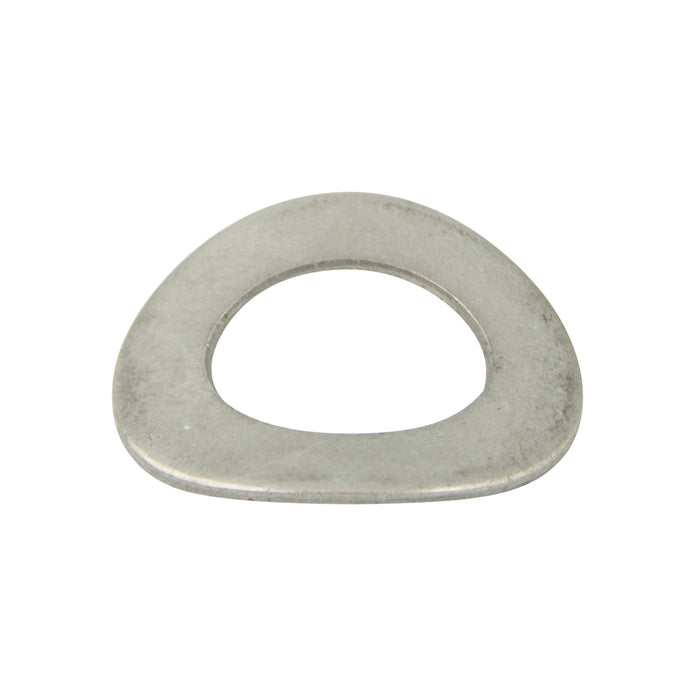

Bowed Spring Washer, DIN 137A M2 A2 Stainless Steel DIN 137A/A2 M2 by Spaenaur Inc.

Part Number: 681-D25-1T

Legacy Part Number(s): 681-816

Bowed Spring Washer, DIN 137A M2 A2 Stainless Steel DIN 137A/A2 M2

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-D25-1T
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 681-816
Washer Type Bowed
Compatible Bolt Size 24 mm
Inside Diameter 2.2 mm Min.; .087" Min. Approximate
Outside Diameter 4.5 mm Max.; .177" Max. Approximate
Overall Height 0.50 mm Min.; .020" Min. Approximate
Thickness 0.3 mm; .012" Approximate
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137A
