Part Number: 681-D24-1N

Legacy Part Number(s): 681-111ZP

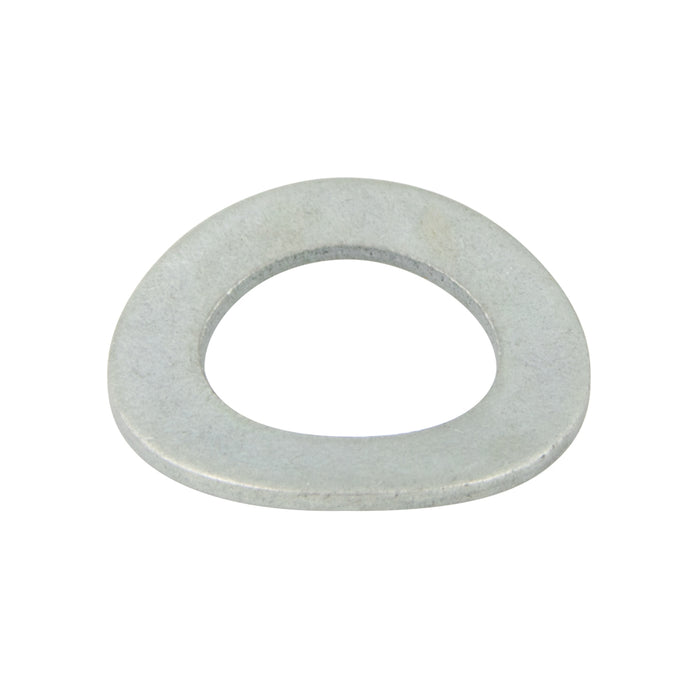

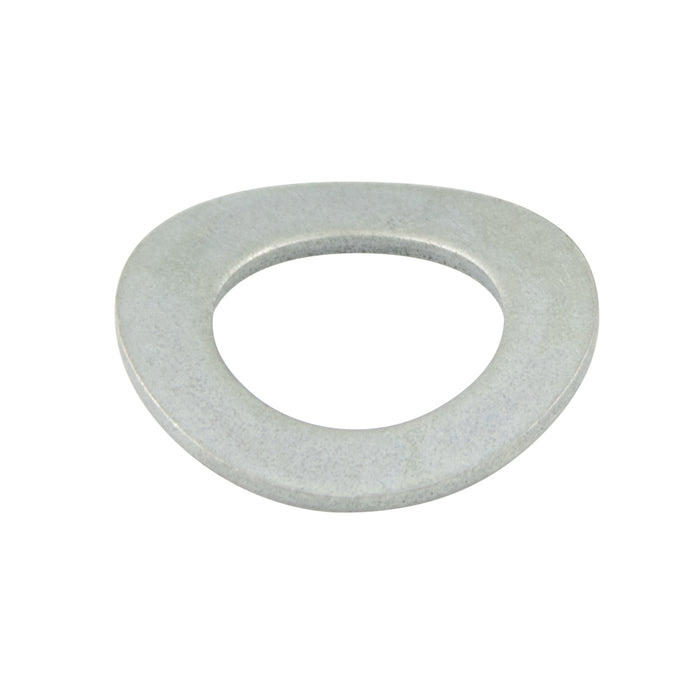

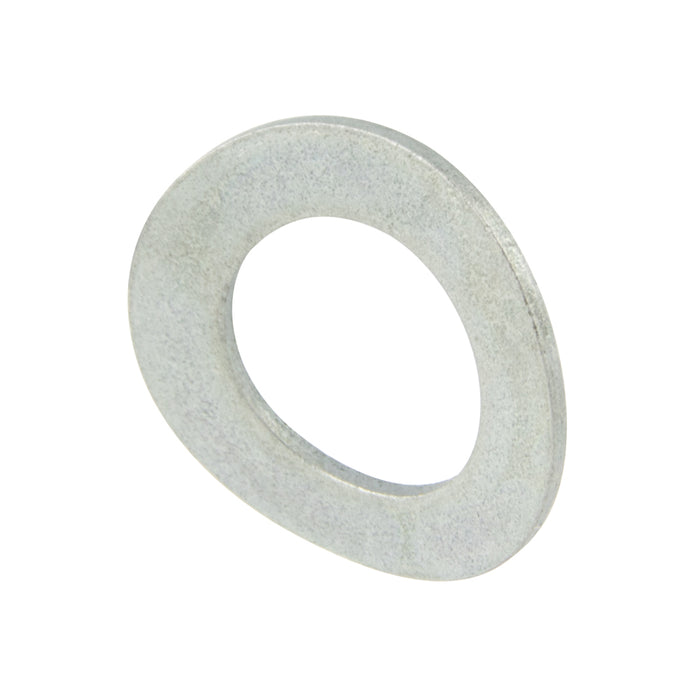

Single Wave Spring Washer DIN 137B M3 Spring Steel Mechanical Zinc Plated DIN 137B/ST-ZP M3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-D24-1N

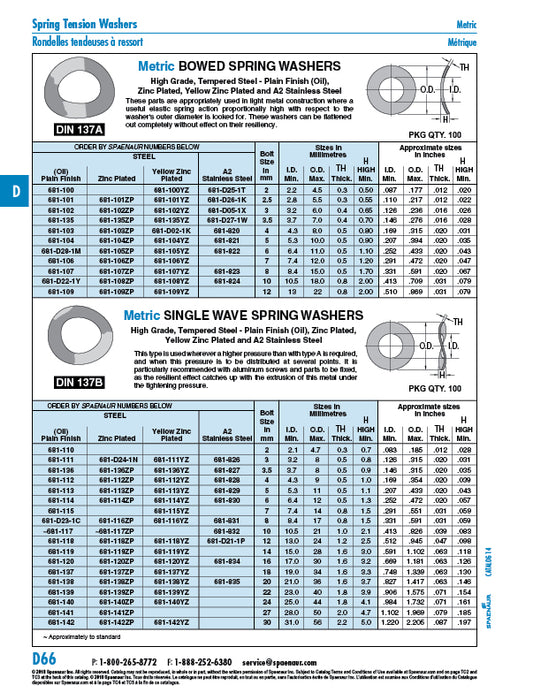

Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 681-111ZP
Washer Type Single Wave
Compatible Bolt Size 3 mm
Inside Diameter 3.2 mm Min.; .126" Min. Approximate
Outside Diameter 8 mm Max.; .315" Max. Approximate
Overall Height 0.8 mm Min.; .031" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Tempered Steel
Finish Zinc Plated
Standard DIN 137B
