Specifications

Part Number 681-831
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

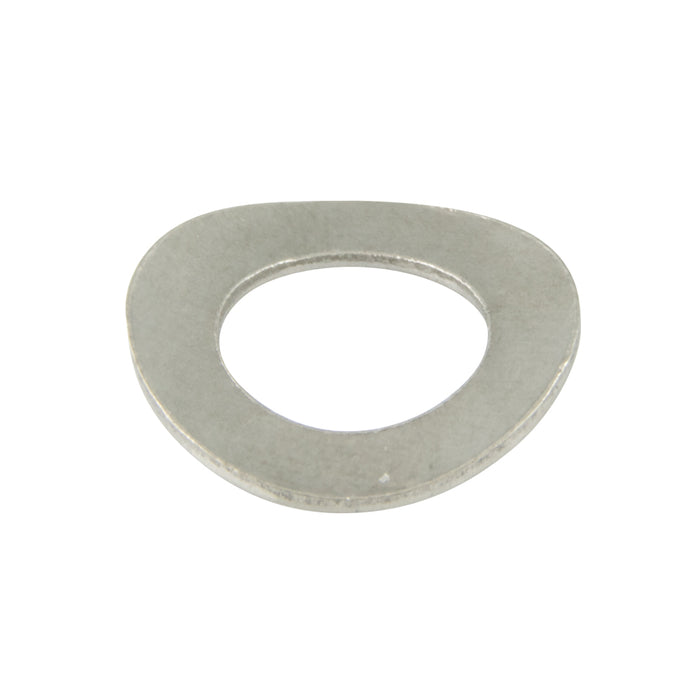

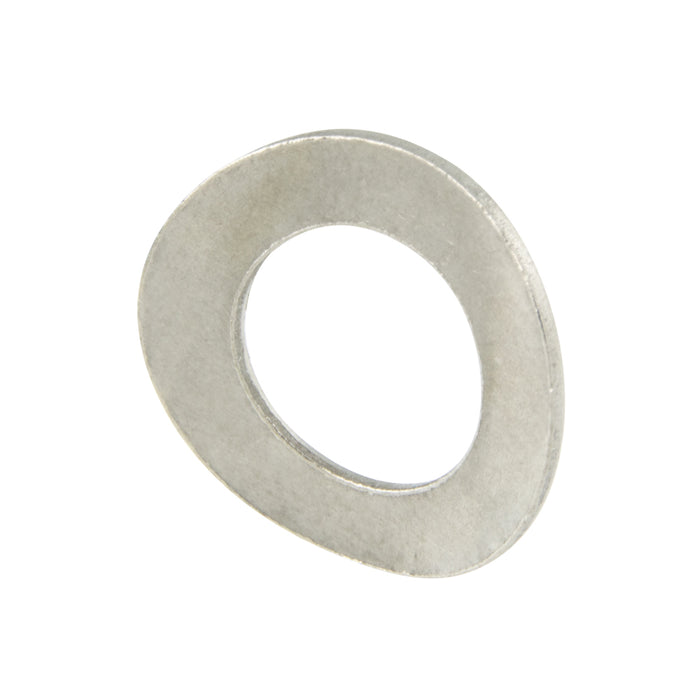

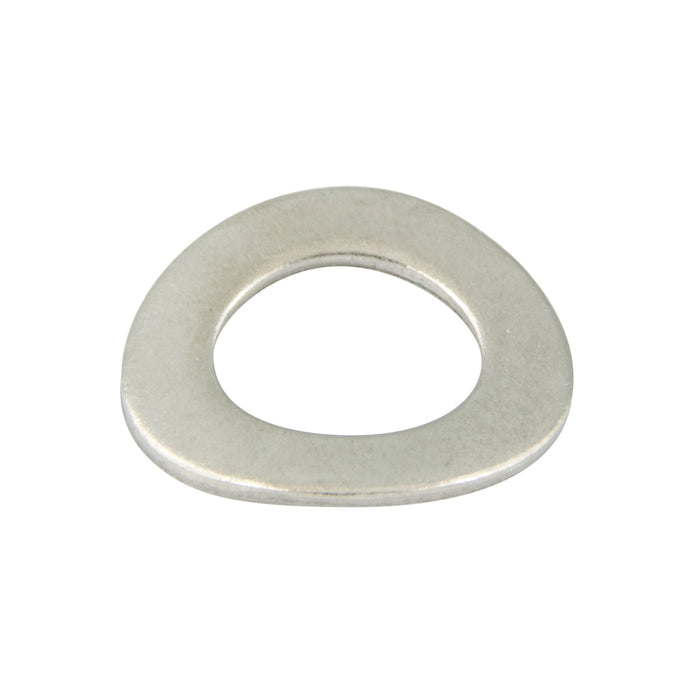

Washer Type Single Wave
Compatible Bolt Size 8 mm
Inside Diameter 8.4 mm Min.; .331" Min. Approximate
Outside Diameter 17 mm Max.; .591" Max. Approximate
Overall Height 1.5 mm Min.; .059" Min. Approximate
Thickness 0.8 mm; .031" Approximate
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137B
