Specifications

Part Number 681-829

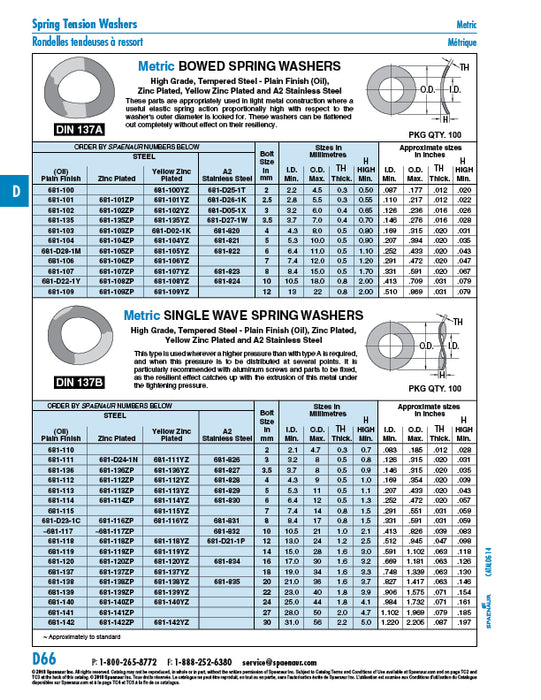

Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

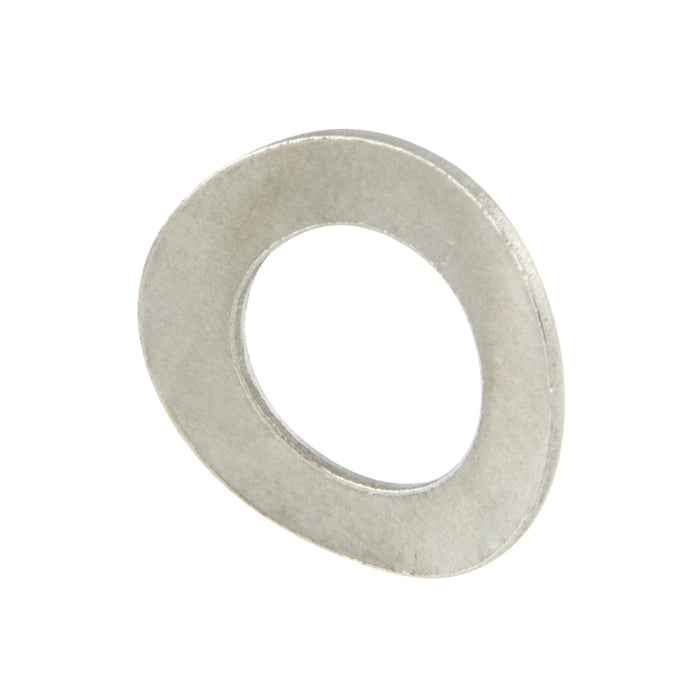

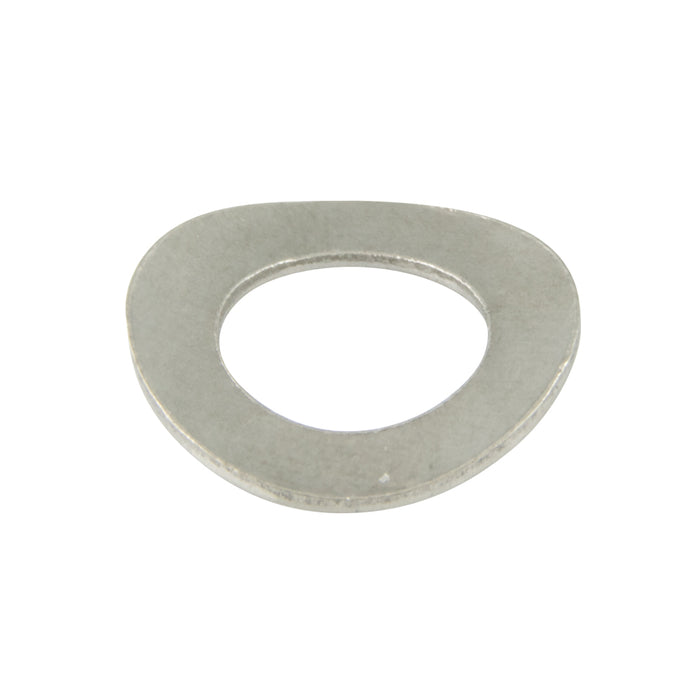

Washer Type Single Wave
Compatible Bolt Size 5 mm
Inside Diameter 5.3 mm Min.; .207" Min. Approximate
Outside Diameter 11 mm Max.; .433" Max. Approximate
Overall Height 1.1 mm Min.; .043" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 137B
