Specifications

Part Number 681-142
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

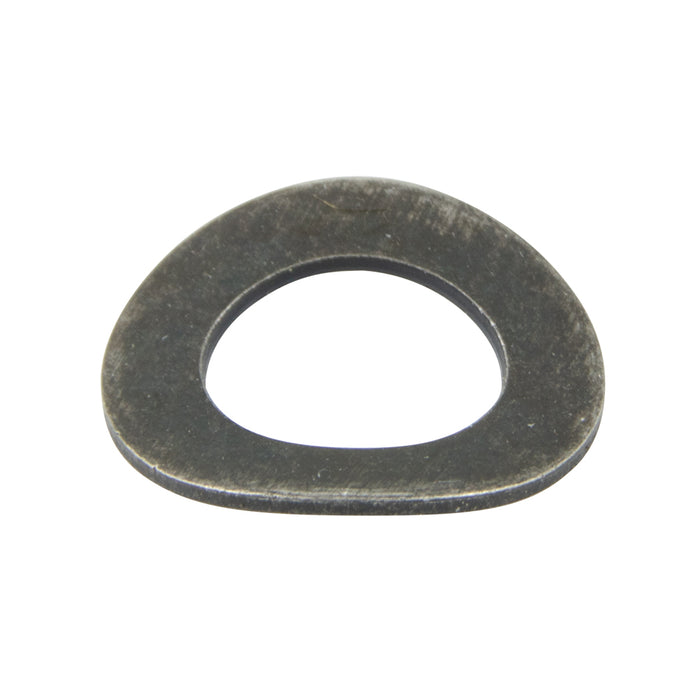

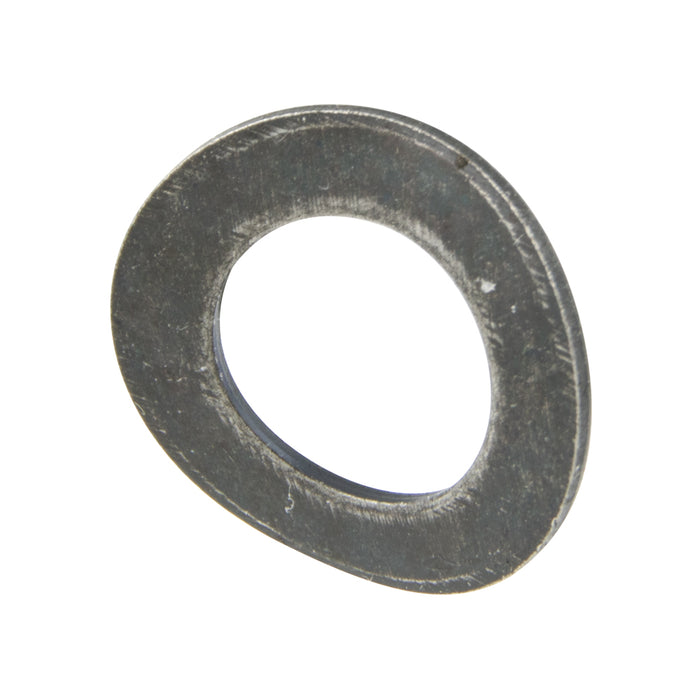

Washer Type Single Wave
Compatible Bolt Size 30 mm
Inside Diameter 31.0 mm Min.; 1.220" Min. Approximate
Outside Diameter 56 mm Max.; 2.205" Max. Approximate
Overall Height 5.0 mm Min.; .197" Min. Approximate
Thickness 2.2 mm; .087" Approximate
Material Tempered Steel
Finish Plain Oil
Standard DIN 137B
