Specifications

Part Number 681-138YZ

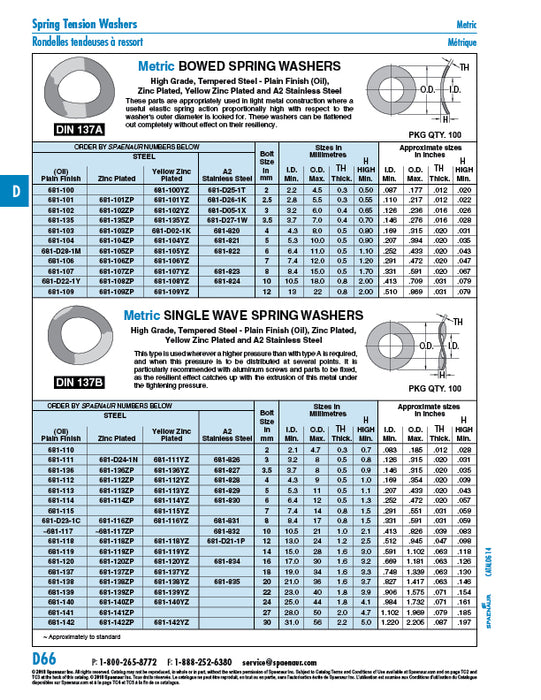

Catalog Page(s) D66
System of Measurement Metric

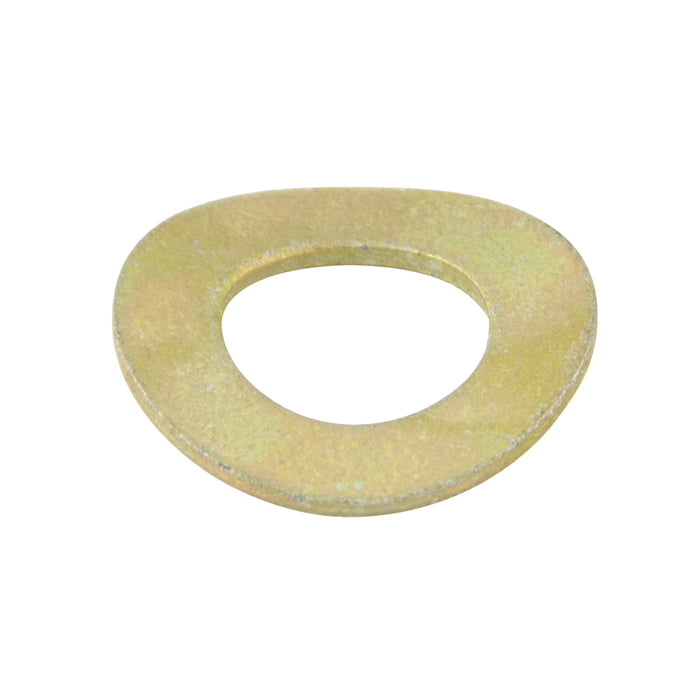

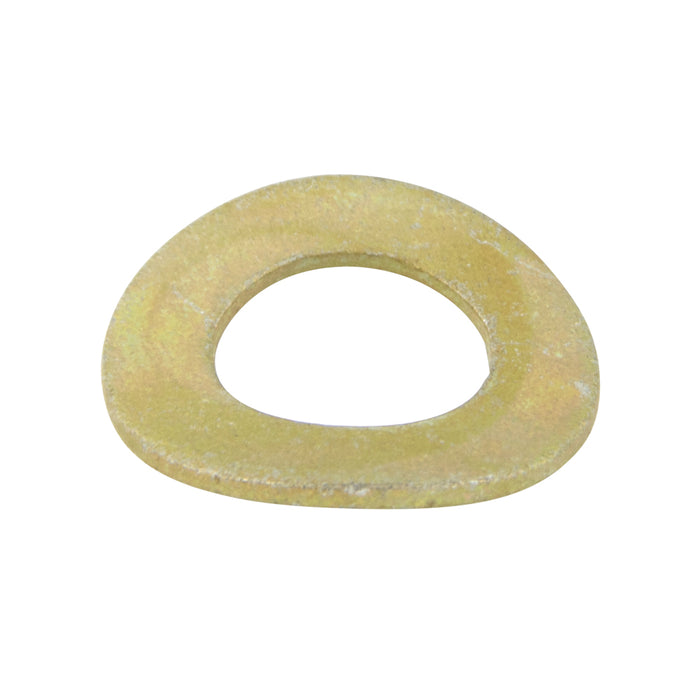

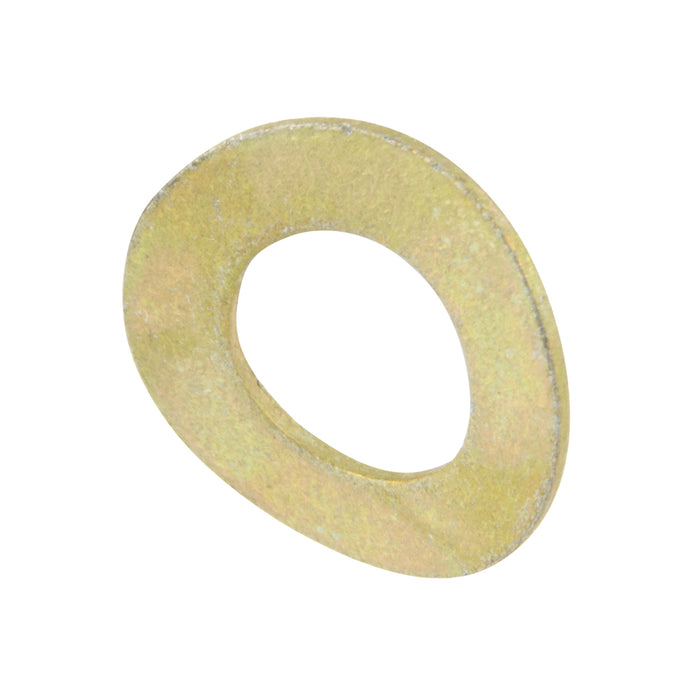

Washer Type Single Wave
Compatible Bolt Size 20 mm
Inside Diameter 21.0 mm Min.; .827" Min. Approximate
Outside Diameter 36 mm Max.; 1.417" Max. Approximate
Overall Height 3.7 mm Min.; .146" Min. Approximate
Thickness 1.6 mm; .063" Approximate
Material Tempered Steel
Finish Yellow Zinc Plated
Standard DIN 137B
