Specifications

Part Number 681-137YZ
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

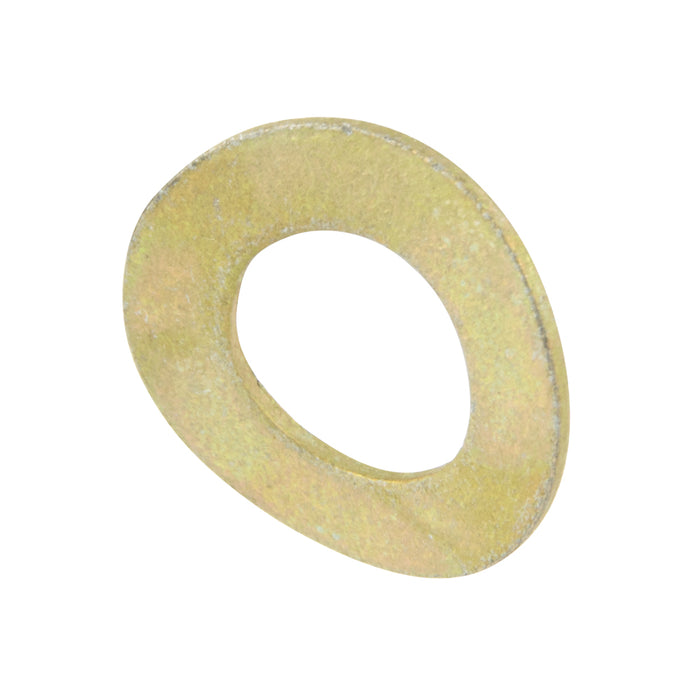

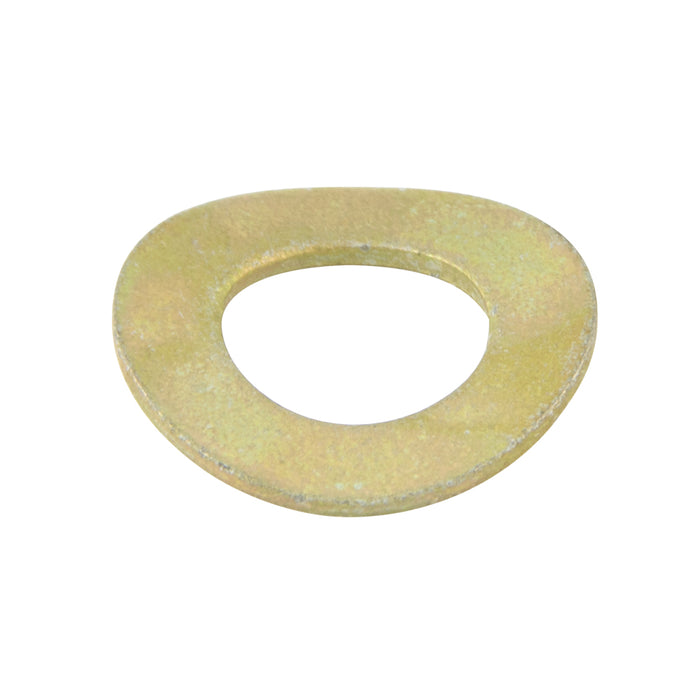

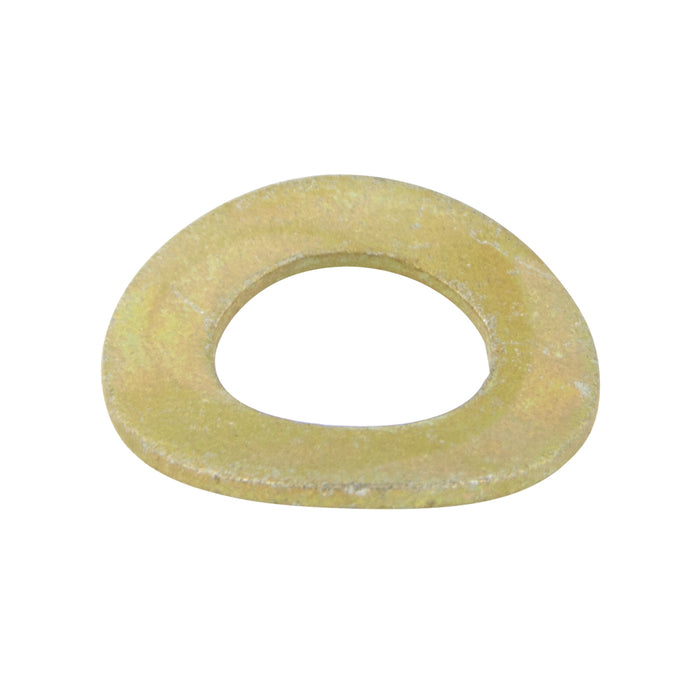

Washer Type Single Wave
Compatible Bolt Size 18 mm
Inside Diameter 19.0 mm Min.; .748" Min. Approximate
Outside Diameter 34 mm Max.; 1.339" Max. Approximate
Overall Height 3.3 mm Min.; .130" Min. Approximate
Thickness 1.6 mm; .063" Approximate
Material Tempered Steel
Finish Yellow Zinc Plated
Standard DIN 137B
