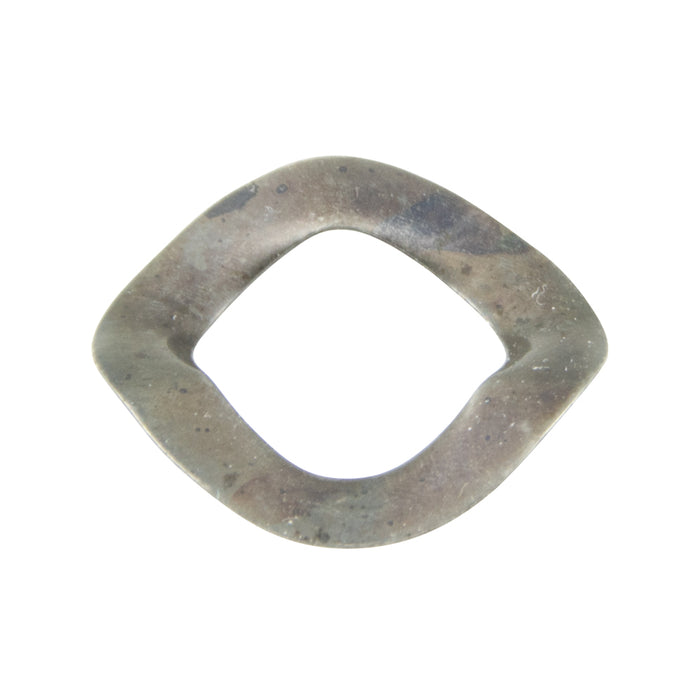

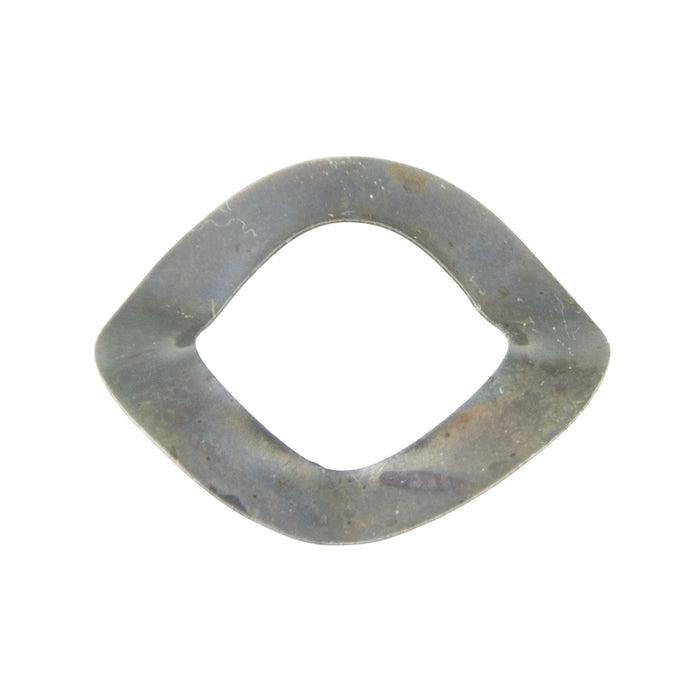

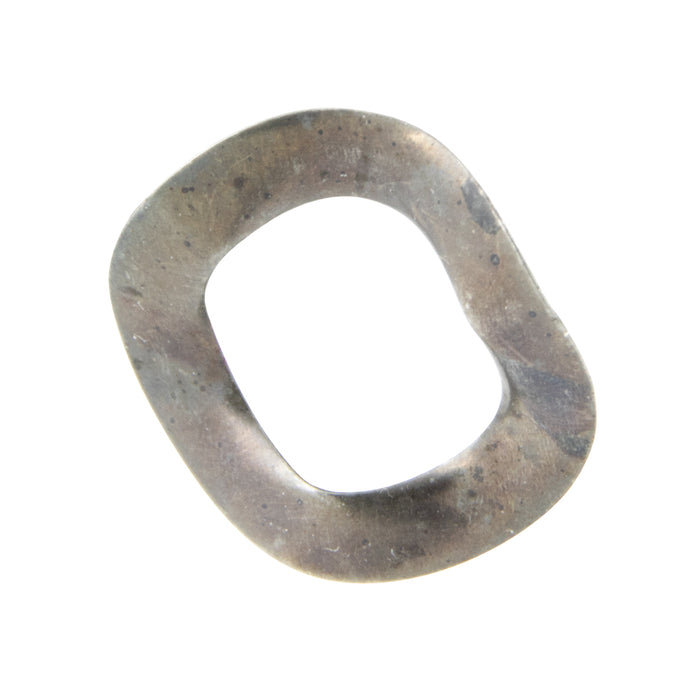

Double Wave Spring Washer Metric Similar to DIN 137-D Bolt Size M8 8.1mm ID x 13.8mm OD x 0.2mm TH Spring Steel Heat Treated Plain by Spaenaur Inc.

Part Number: 681-129

Double Wave Spring Washer Metric Similar to DIN 137-D Bolt Size M8 8.1mm ID x 13.8mm OD x 0.2mm TH Spring Steel Heat Treated Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-129

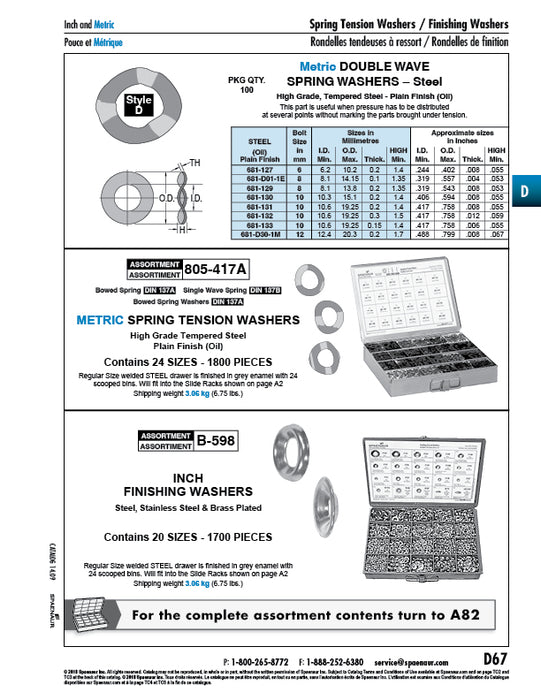

Catalog Page(s) D67
System of Measurement Metric
Washer Type Double Wave
Compatible Bolt Size 8 mm
Inside Diameter 8.1 mm Min.; .319" Min. Approximate
Outside Diameter 13.8 mm Max.; .543" Max. Approximate
Overall Height 1.35 mm Min.; .053" Min. Approximate
Thickness 0.2 mm; .008" Approximate
Material Tempered Steel
Finish Plain Oil
