Specifications

Part Number 681-117
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

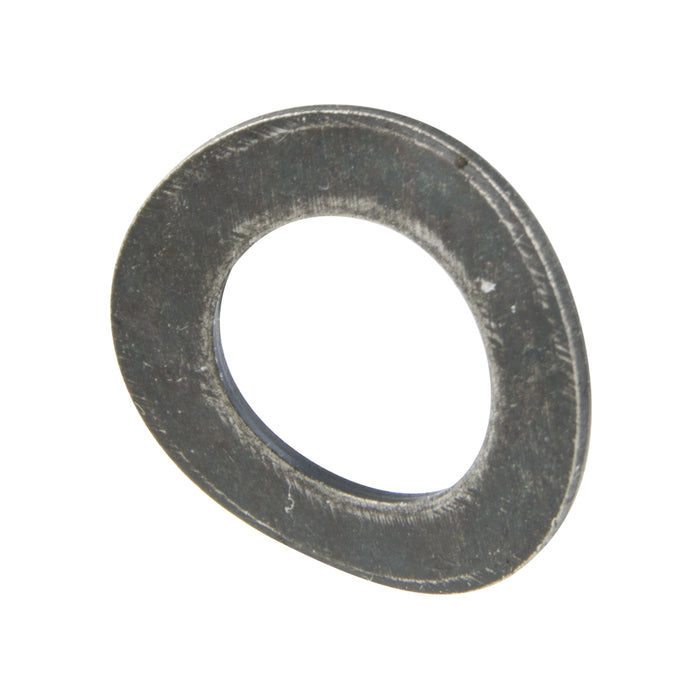

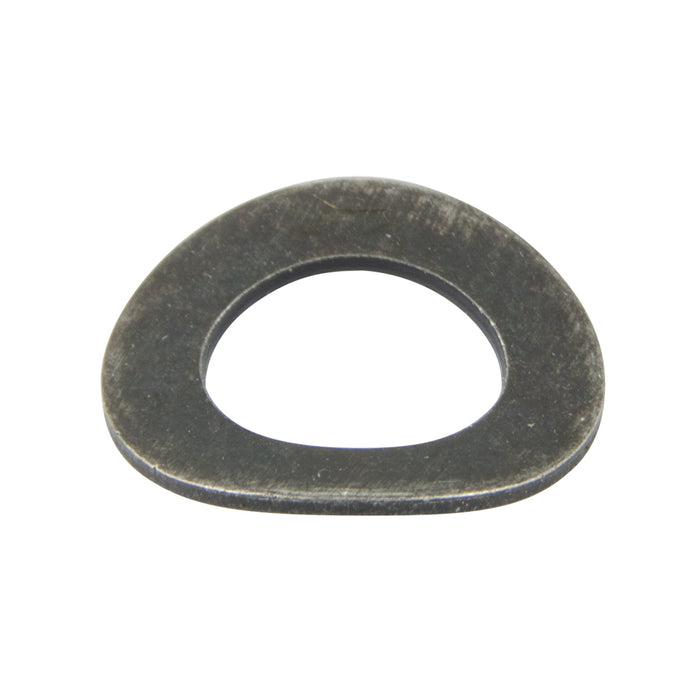

Washer Type Single Wave
Compatible Bolt Size 10 mm
Inside Diameter 10.5 mm Min.; .413" Min. Approximate
Outside Diameter 21 mm Max.; .826" Max. Approximate
Overall Height 2.1 mm Min.; .083" Min. Approximate
Thickness 1.0 mm; .039" Approximate
Material Tempered Steel
Finish Plain Oil
Standard DIN 137B
