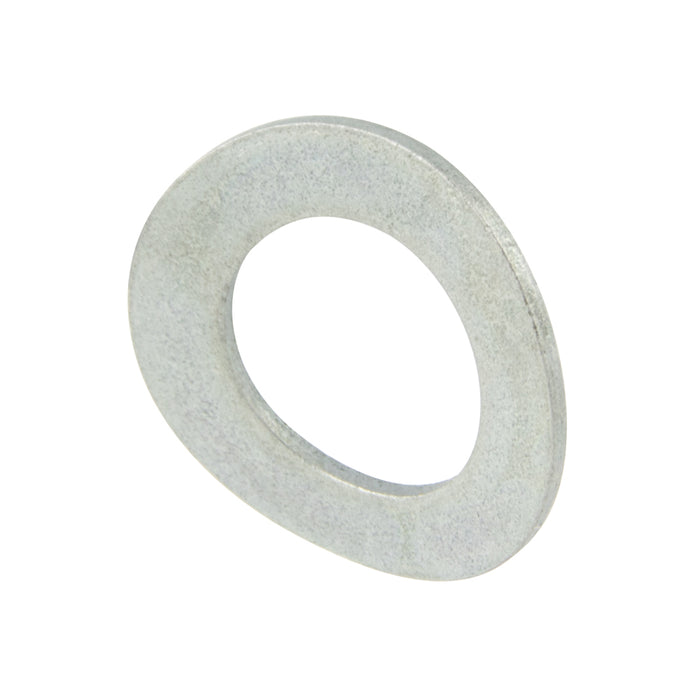

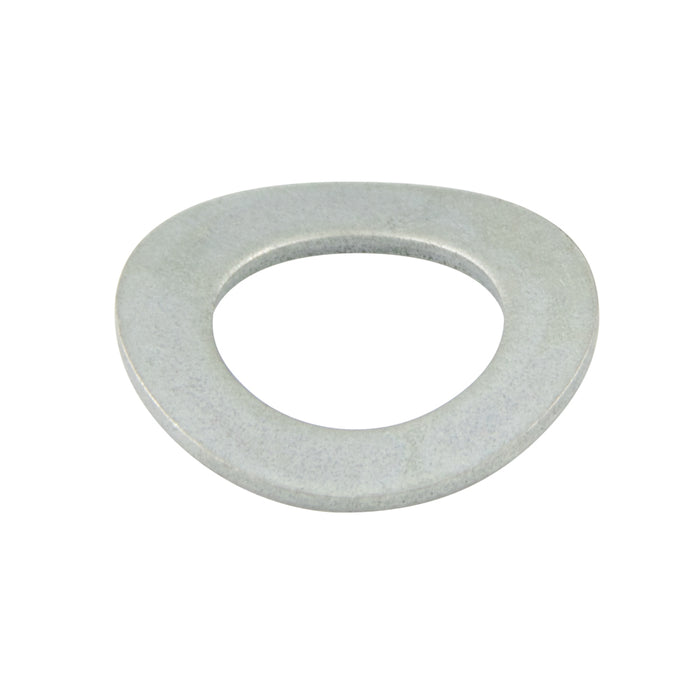

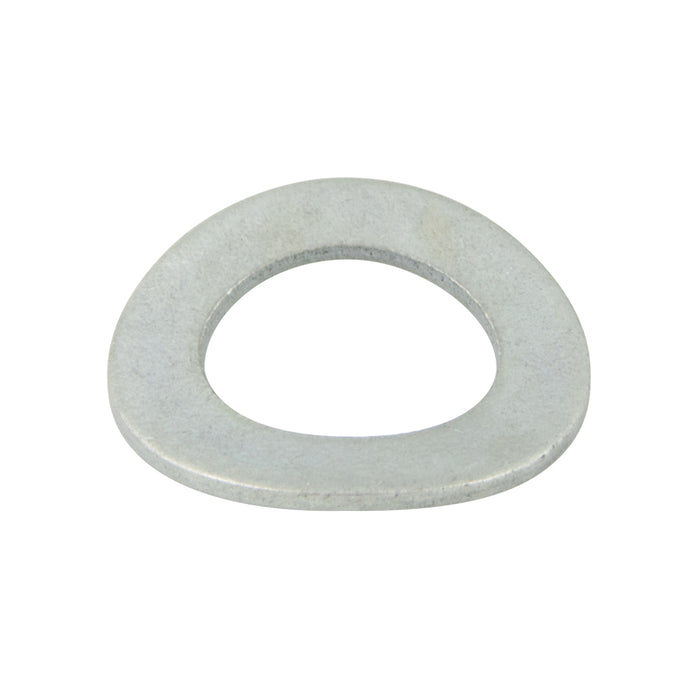

Spring Wave Spring Washer DIN 137B M5 Spring Steel Zinc Plated DIN 137B/ST-ZP M5 by Spaenaur Inc.

Part Number: 681-113ZP

Spring Wave Spring Washer DIN 137B M5 Spring Steel Zinc Plated DIN 137B/ST-ZP M5

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-113ZP
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Single Wave
Compatible Bolt Size 5 mm
Inside Diameter 5.3 mm Min.; .207" Min. Approximate
Outside Diameter 11 mm Max.; .433" Max. Approximate
Overall Height 1.1 mm Min.; .043" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Tempered Steel
Finish Zinc Plated
Standard DIN 137B
