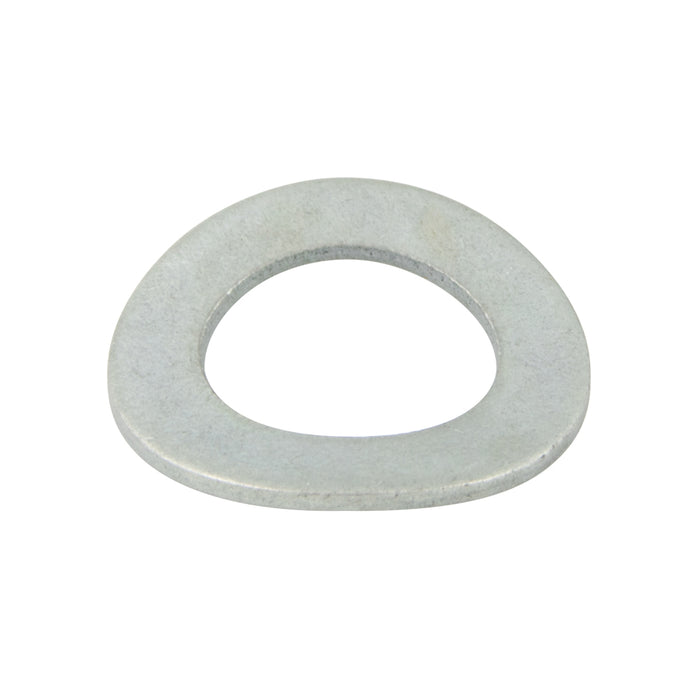

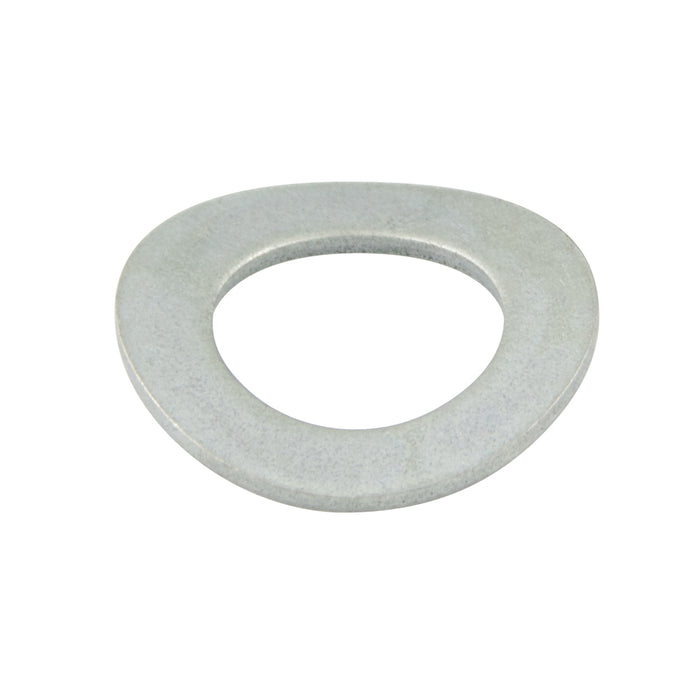

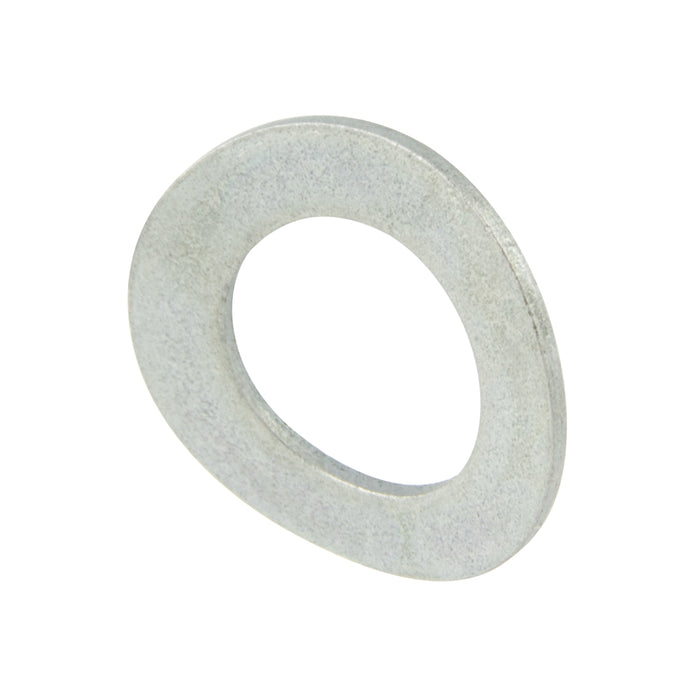

Single Wave Spring Washer DIN 137B M4 Spring Steel Zinc Plated DIN 137B/ST-ZP M4 by Spaenaur Inc.

Part Number: 681-112ZP

Single Wave Spring Washer DIN 137B M4 Spring Steel Zinc Plated DIN 137B/ST-ZP M4

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-112ZP
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Single Wave
Compatible Bolt Size 4 mm
Inside Diameter 4.3 mm Min.; .169" Min. Approximate
Outside Diameter 9 mm Max.; .354" Max. Approximate
Overall Height 1.0 mm Min.; .039" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Tempered Steel
Finish Zinc Plated
Standard DIN 137B
