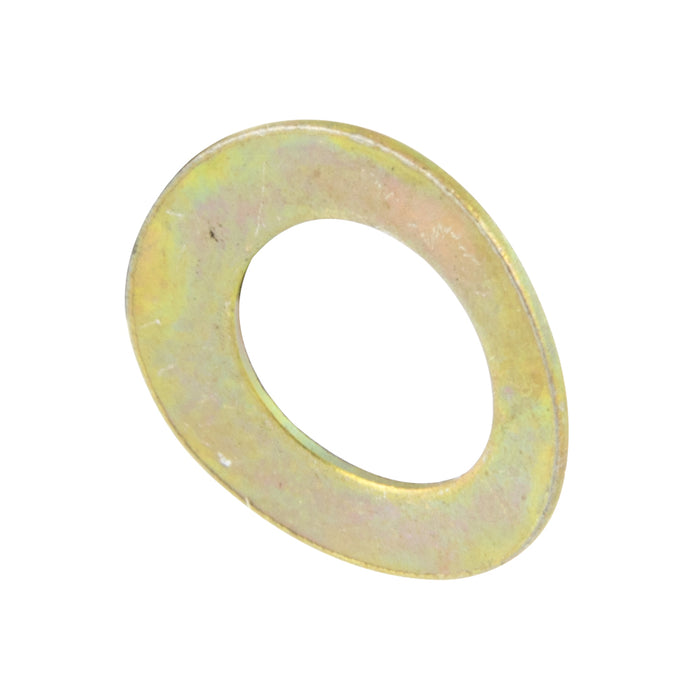

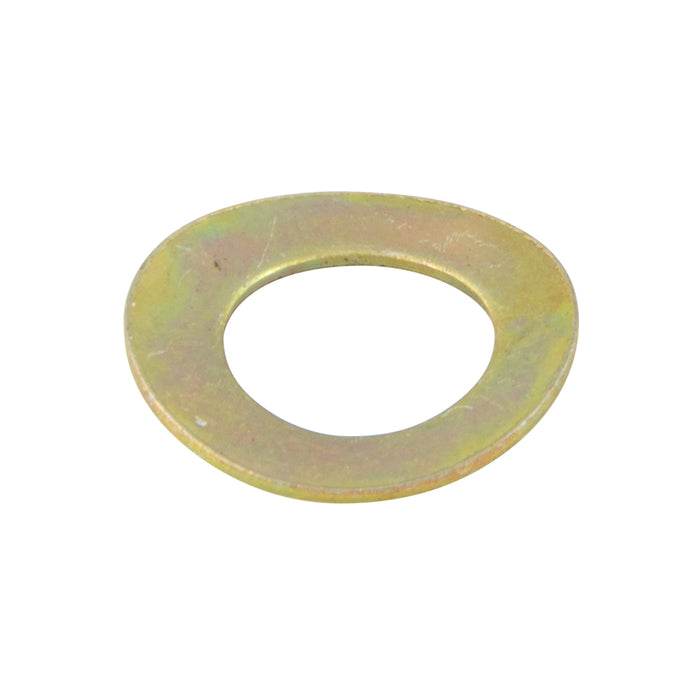

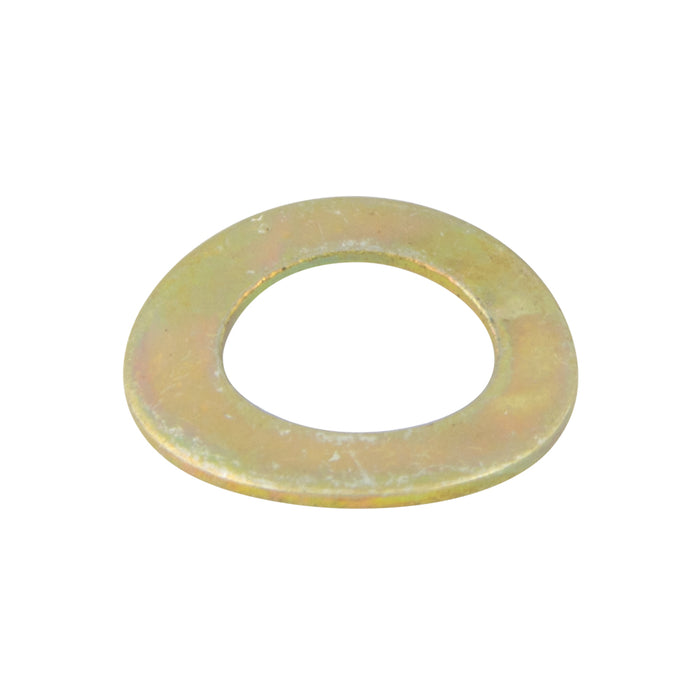

Bowed Spring Washer DIN 137A M7 Spring Steel Yellow Zinc Plated DIN 137A/ST-YZ M7 by Spaenaur Inc.

Part Number: 681-106YZ

Bowed Spring Washer DIN 137A M7 Spring Steel Yellow Zinc Plated DIN 137A/ST-YZ M7

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-106YZ
Catalog Page(s) D66
System of Measurement Metric
Washer Type Bowed
Compatible Bolt Size 24 mm
Inside Diameter 7.4 mm Min.; .291" Min. Approximate
Outside Diameter 12.0 mm Max.; .472" Max. Approximate
Overall Height 1.20 mm Min.; .047" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Tempered Steel
Finish Yellow Zinc Plated
Standard DIN 137A
