Specifications

Part Number 681-106
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]

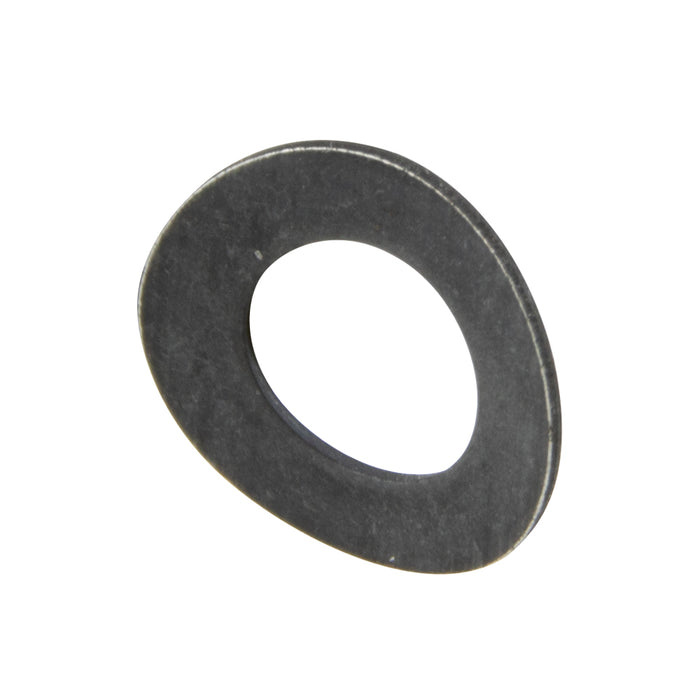

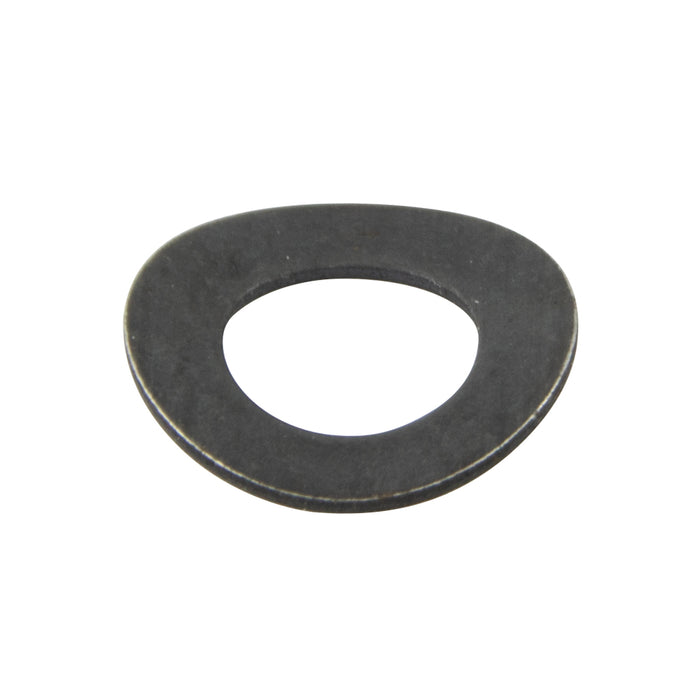

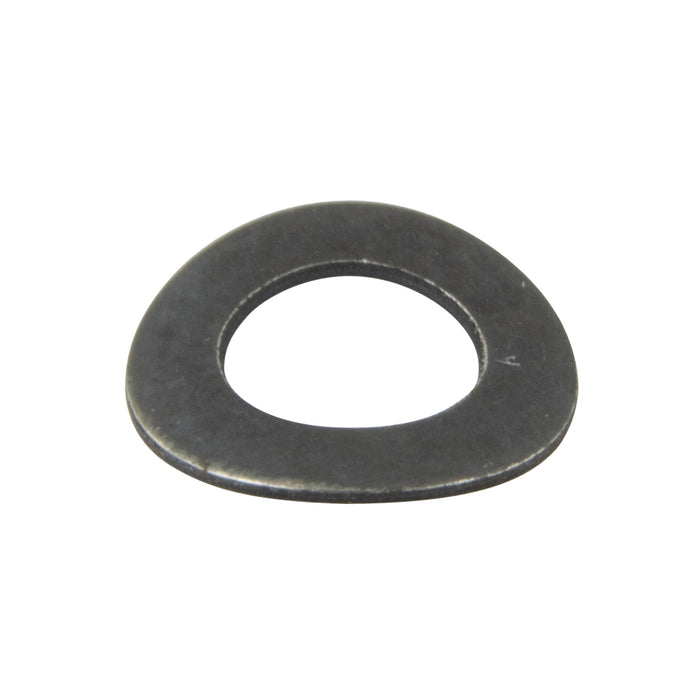

Washer Type Bowed
Compatible Bolt Size 24 mm
Inside Diameter 7.4 mm Min.; .291" Min. Approximate
Outside Diameter 12.0 mm Max.; .472" Max. Approximate
Overall Height 1.20 mm Min.; .047" Min. Approximate
Thickness 0.5 mm; .020" Approximate
Material Tempered Steel
Finish Plain Oil
Standard DIN 137A
