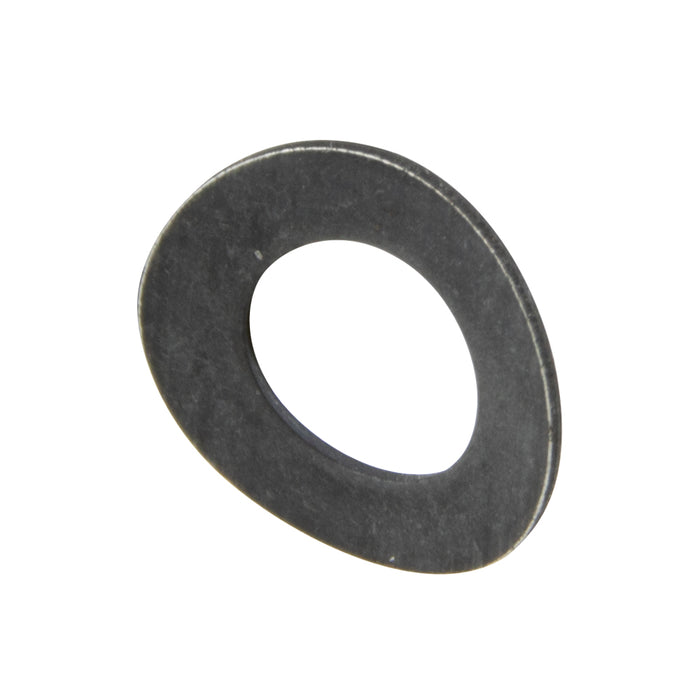

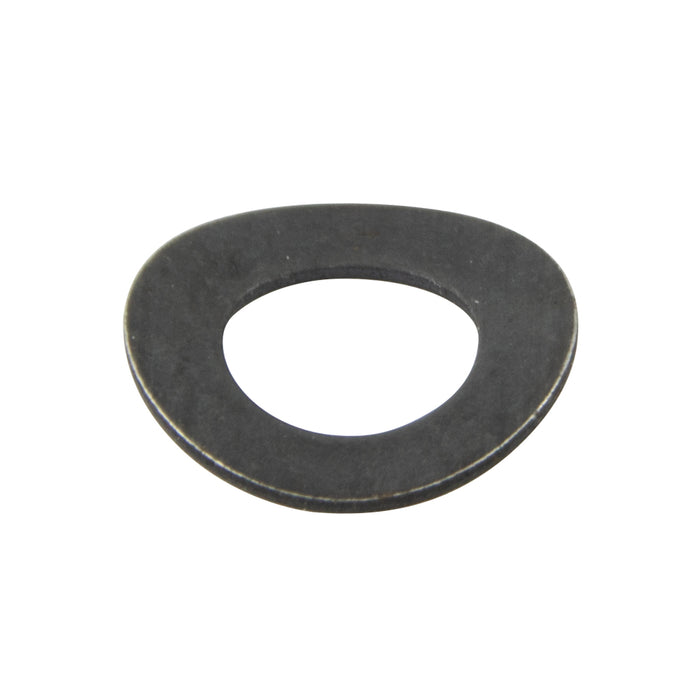

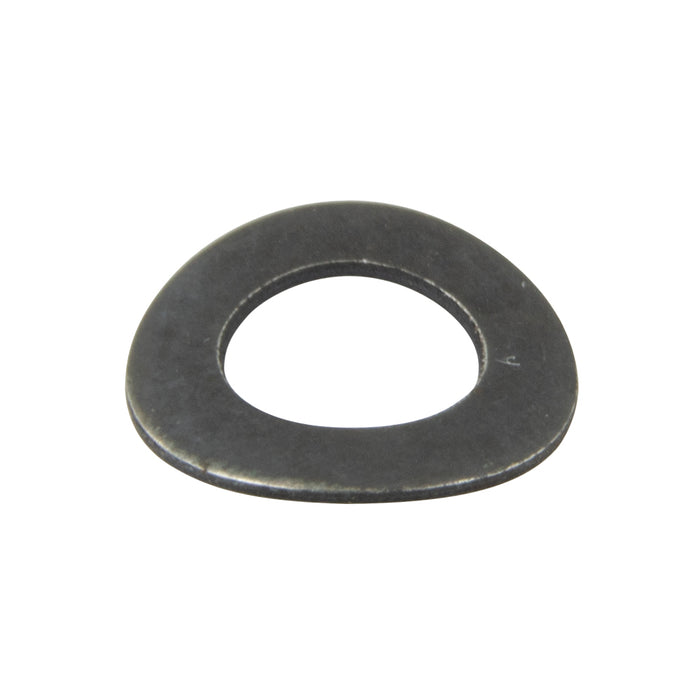

Bowed Spring Washer DIN 137A M3 (3.2mm ID x 6mm OD x .4mm THK) Spring Steel Heat Treated Plain DIN 137A/ST M3 by Spaenaur Inc.

Part Number: 681-102

Bowed Spring Washer DIN 137A M3 (3.2mm ID x 6mm OD x .4mm THK) Spring Steel Heat Treated Plain DIN 137A/ST M3

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 681-102
Catalog Page(s) D66
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Washer Type Bowed
Compatible Bolt Size 24 mm
Inside Diameter 3.2 mm Min.; .126" Min. Approximate
Outside Diameter 6.0 mm Max.; .236" Max. Approximate
Overall Height 0.65 mm Min.; .026" Min. Approximate
Thickness 0.4 mm; .016" Approximate
Material Tempered Steel
Finish Plain Oil
Standard DIN 137A
