Flat Washer with Reduced OD, for Bolt Size M3, 3.2 mm Min ID x 6 mm Max OD x 0.5 mm THK, Steel Zinc Plated, DIN 433 by Spaenaur Inc.

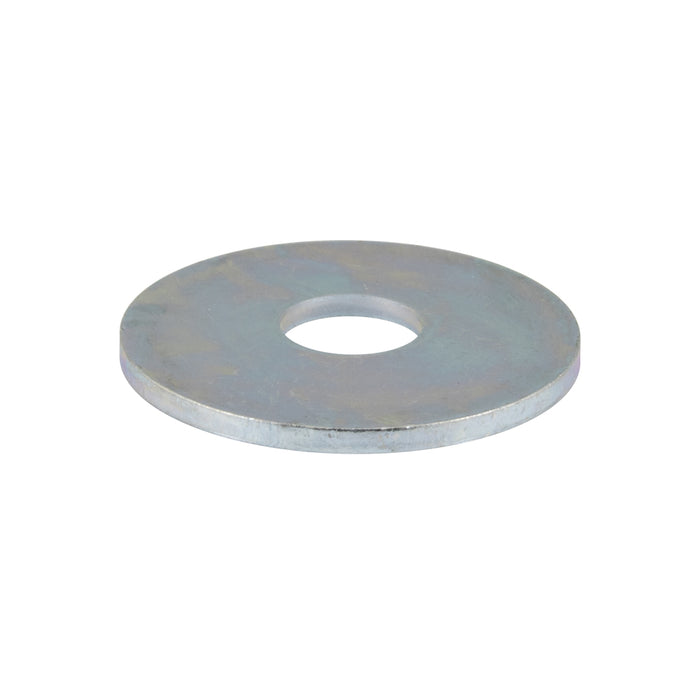

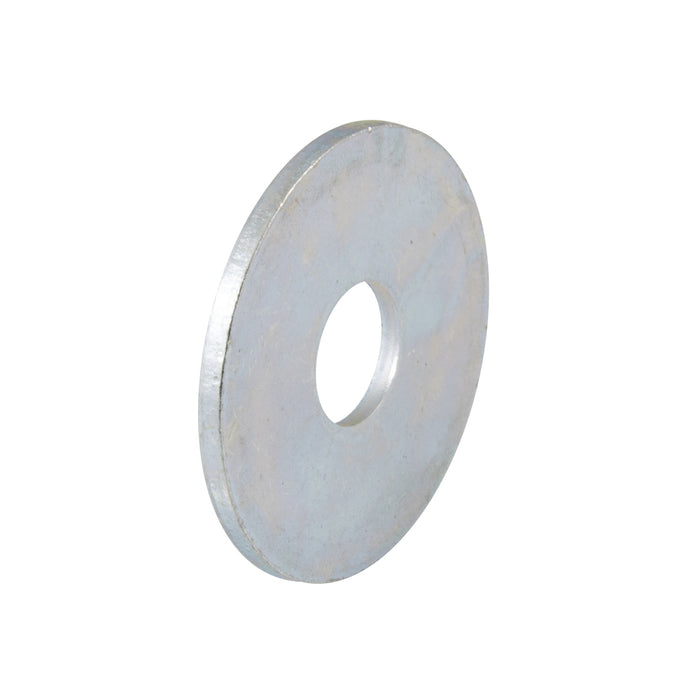

*Representative images - please refer to the product specifications for exact product information

Part Number: 657-W06-1P

Legacy Part Number(s): 657-085ZP

Flat Washer with Reduced OD, for Bolt Size M3, 3.2 mm Min ID x 6 mm Max OD x 0.5 mm THK, Steel Zinc Plated, DIN 433

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-W06-1P

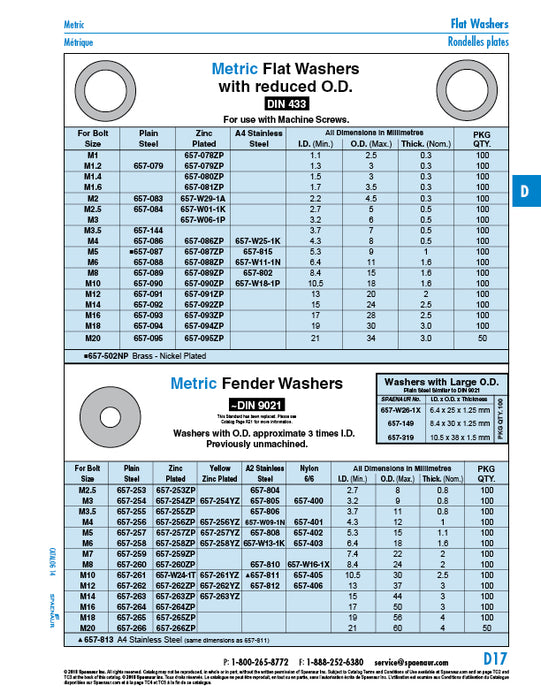

Catalog Page(s) D17
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number 657-085ZP
Material Steel
Finish Zinc Plated
Colour Blue
Compatible Bolt Size M3
Inside Diameter 3.2 mm
Outside Diameter 6 mm
Thickness 0.5 mm
Standard DIN 433
