Conical Washer, DIN 6319D M8 Case Hardened Steel DIN 6319D/ST M8 by Spaenaur Inc.

Part Number: 657-332

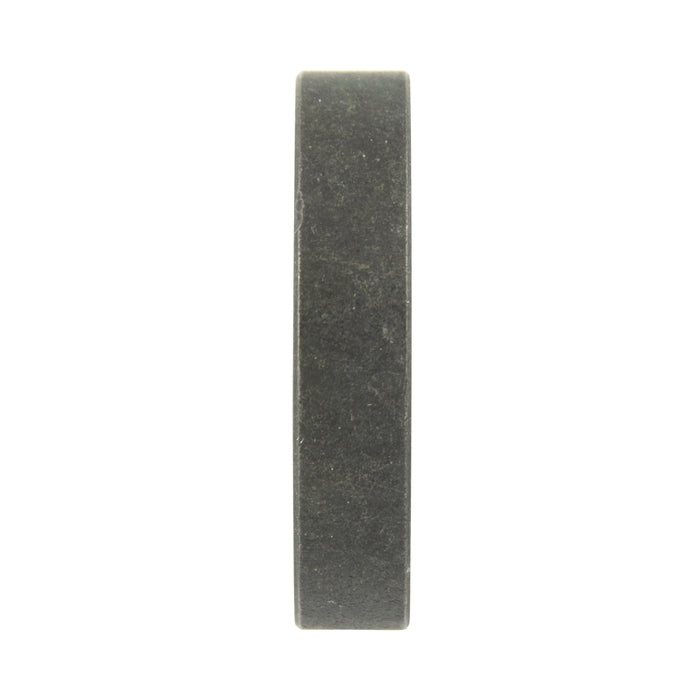

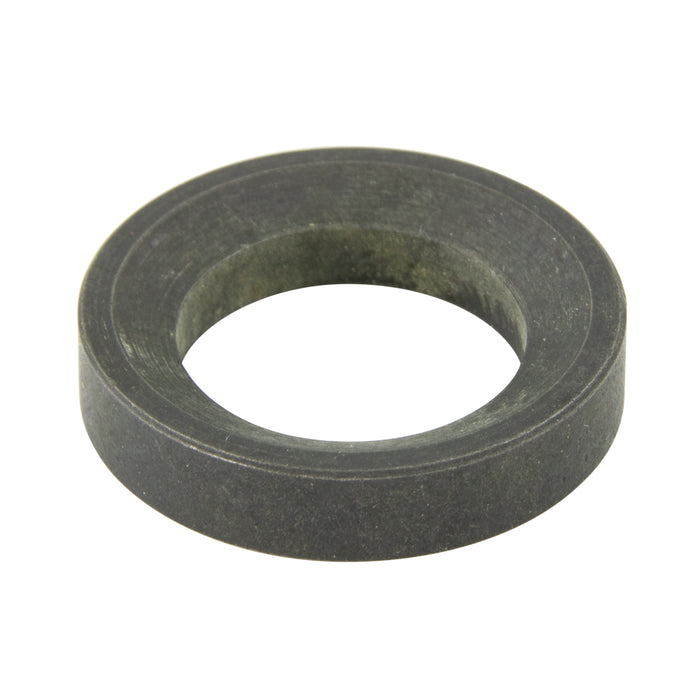

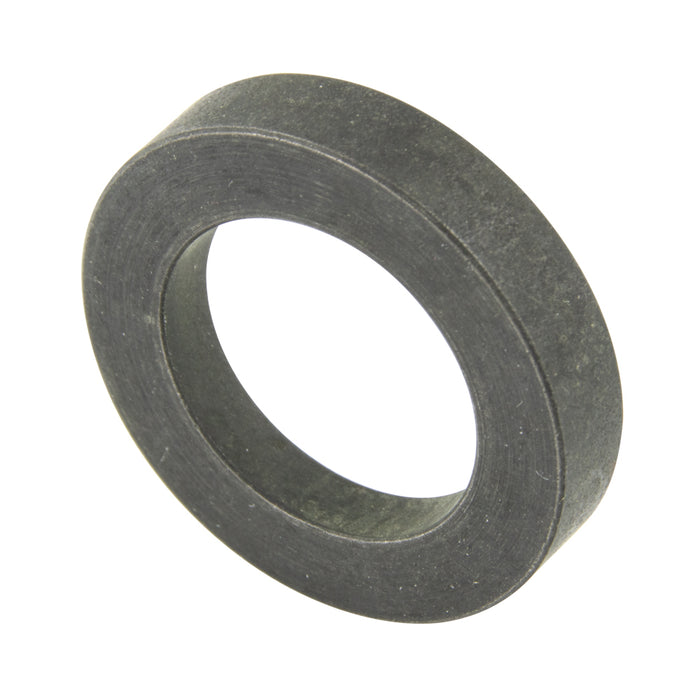

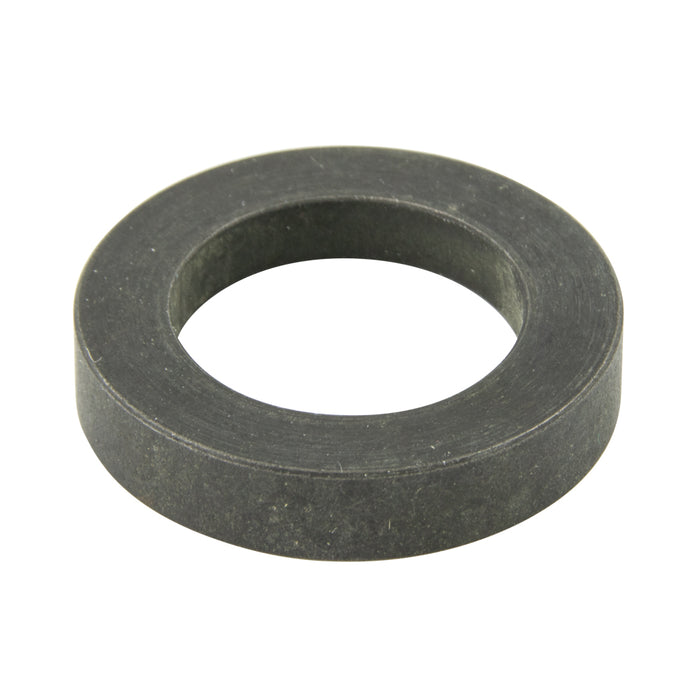

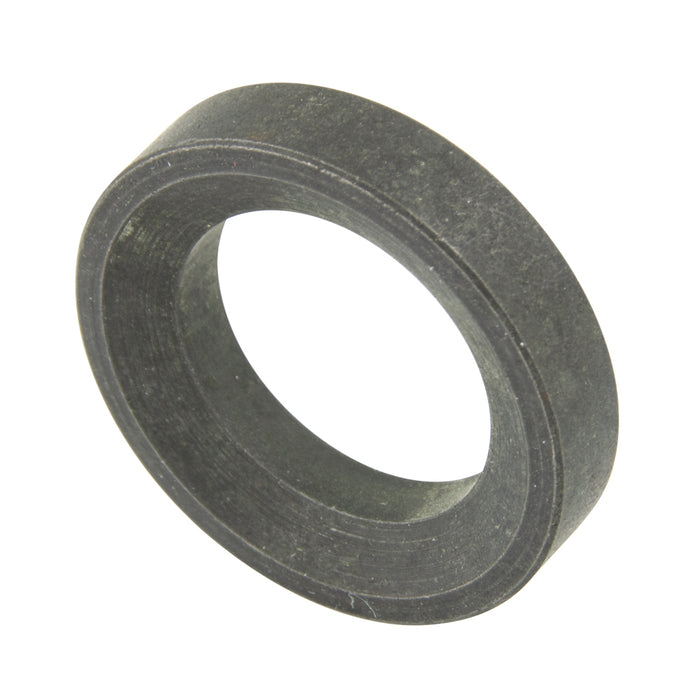

Conical Washer, DIN 6319D M8 Case Hardened Steel DIN 6319D/ST M8

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-332

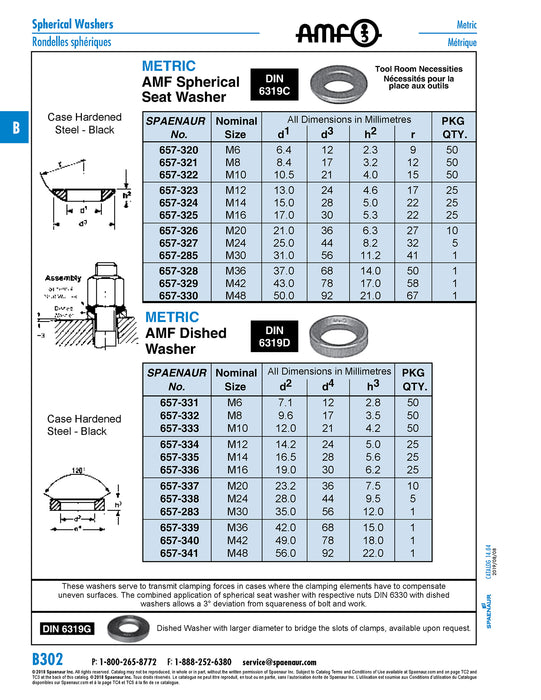

Catalog Page(s) B302
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Compatible Bolt Size M8
Inside Diameter 9.6 mm
Outside Diameter 17 mm
Thickness 3.5 mm
Material Steel
Finish Black Oxide
