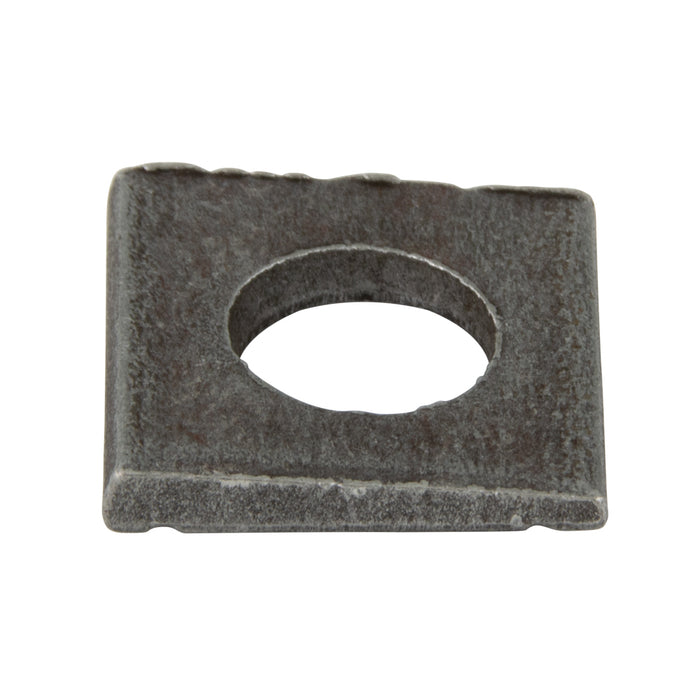

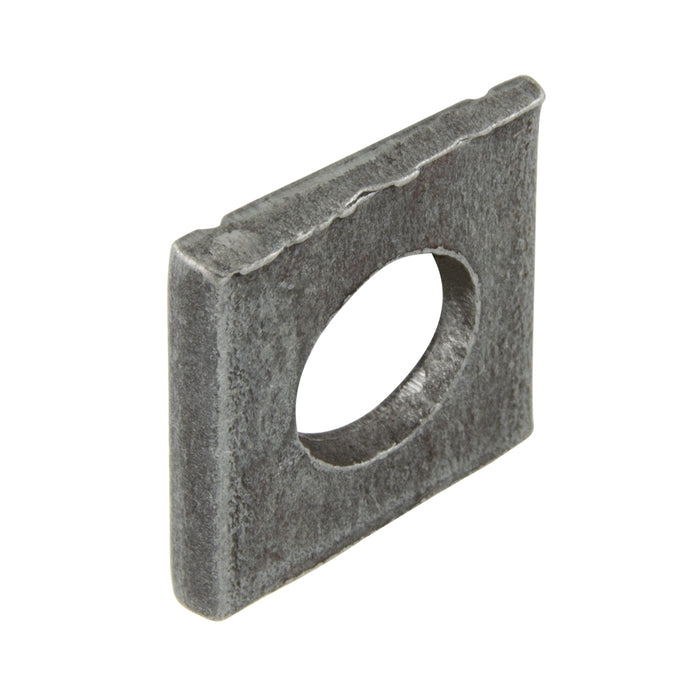

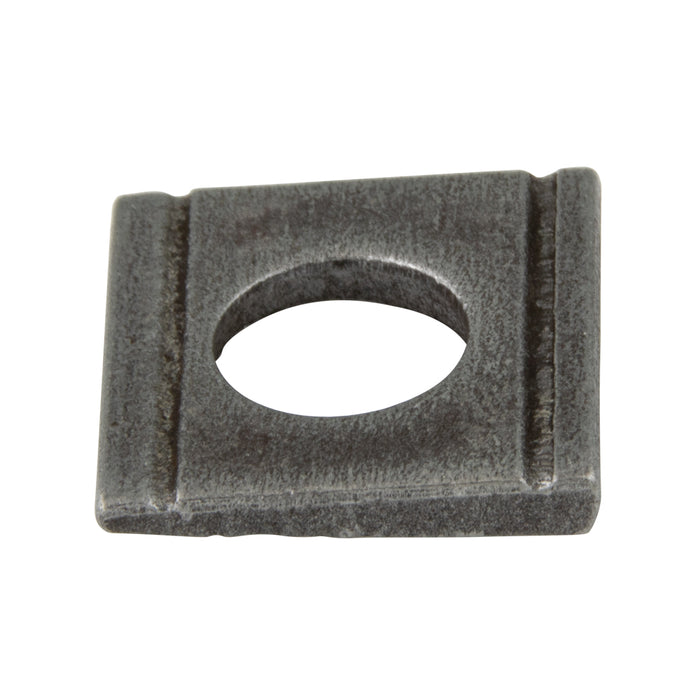

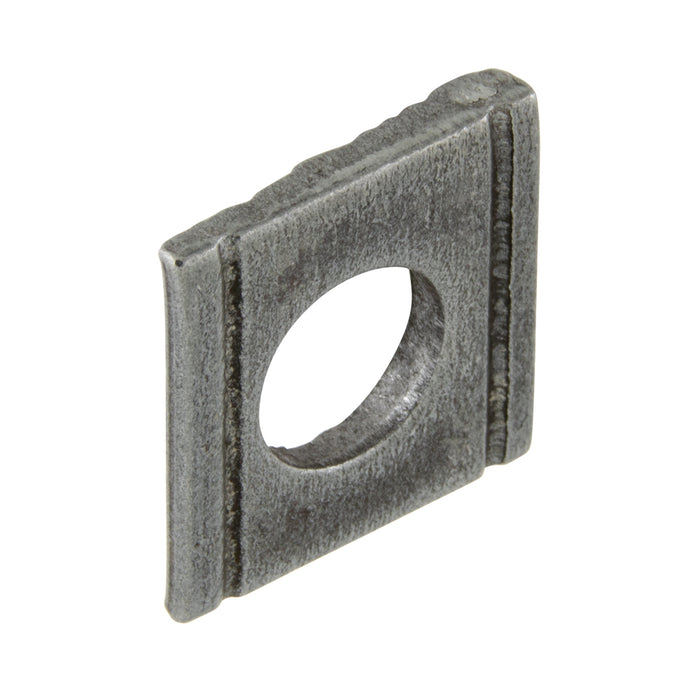

Square Washer Used with 6914 High Tension Hex Bolt, DIN 6918 M12 Steel Hardened Plain Finish DIN 6918/ST M12 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 657-208

Square Washer Used with 6914 High Tension Hex Bolt, DIN 6918 M12 Steel Hardened Plain Finish DIN 6918/ST M12

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-208

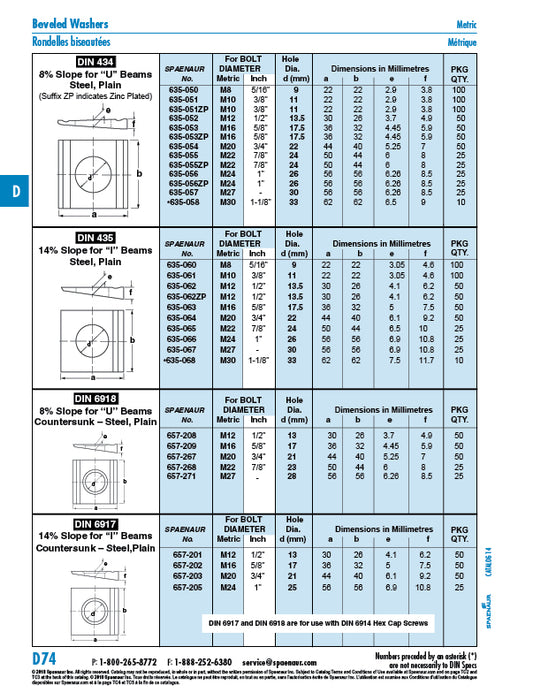

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 8%
Compatible Bolt Size M12
Hole Diameter 13 mm
Material Steel
Finish Plain
Standard DIN 6918
For Use With "U" Beams
Across Flats 26 mm
Length 30 mm
Thickness at Large Taper 4.9 mm
Thickness at Mid Taper 3.7 mm
With Countersunk Hole [yes]
