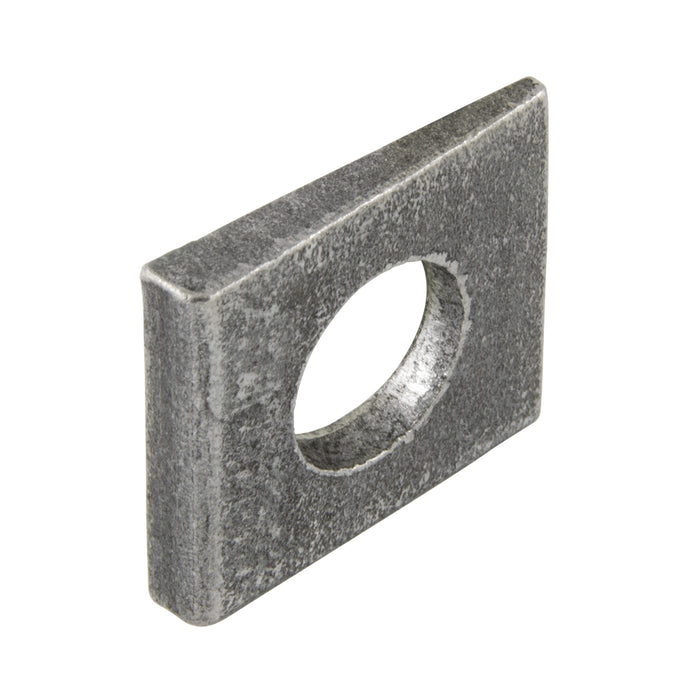

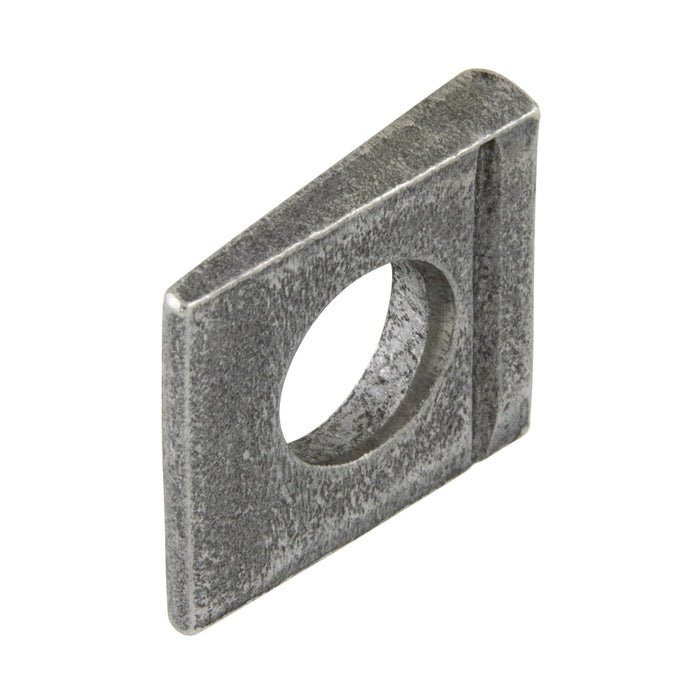

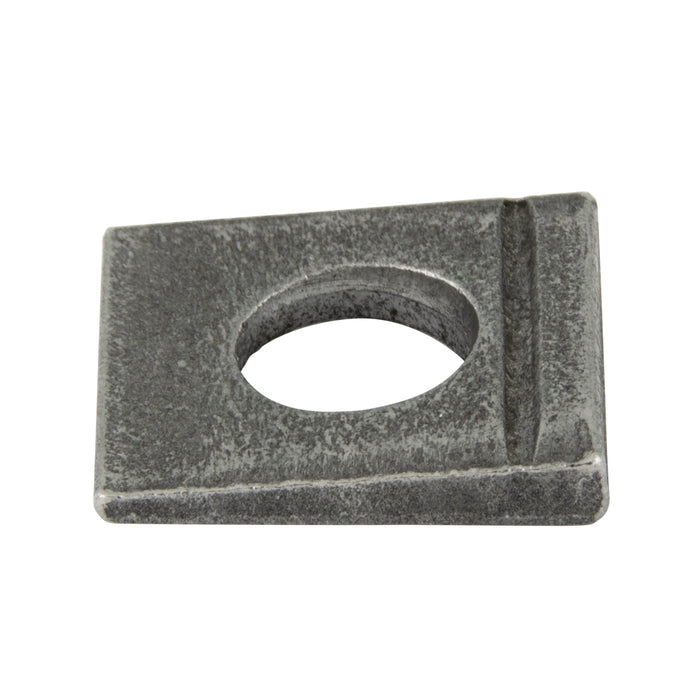

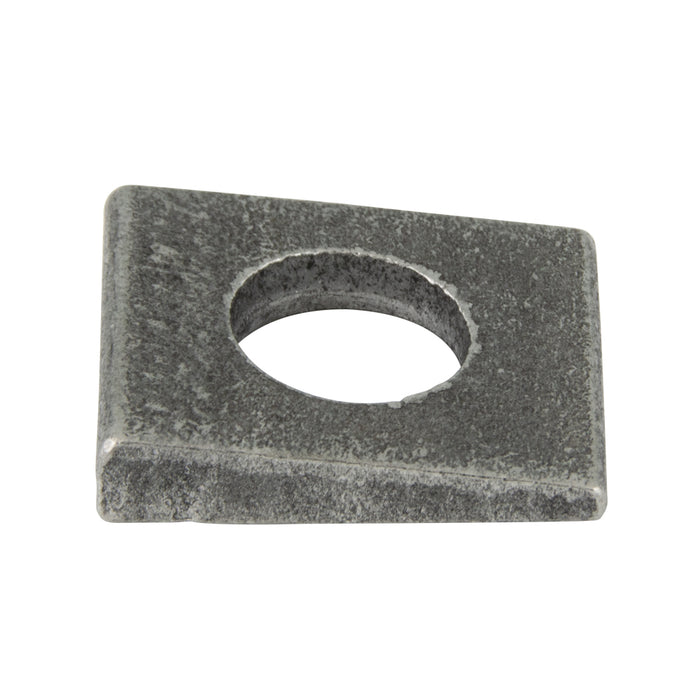

Square Washer, DIN 6917 for DIN 6914 High Tension Hex Bolt, M12 Steel Hardened Plain Finish DIN 6917/ST M12 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 657-201

Square Washer, DIN 6917 for DIN 6914 High Tension Hex Bolt, M12 Steel Hardened Plain Finish DIN 6917/ST M12

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-201

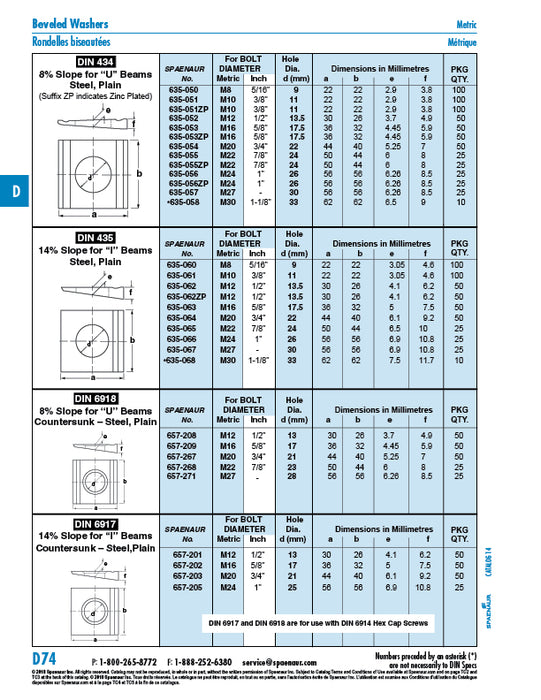

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 14%
Compatible Bolt Size M12
Hole Diameter 13 mm
Material Steel
Finish Plain
Standard DIN 6917
For Use With "I" Beams
Across Flats 26 mm
Length 30 mm
Thickness at Large Taper 6.2 mm
Thickness at Mid Taper 4.1 mm
With Countersunk Hole [yes]
