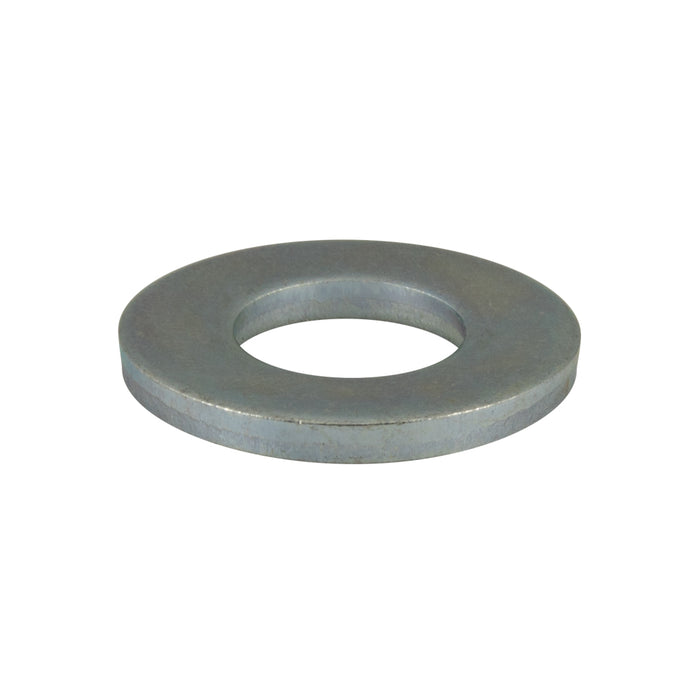

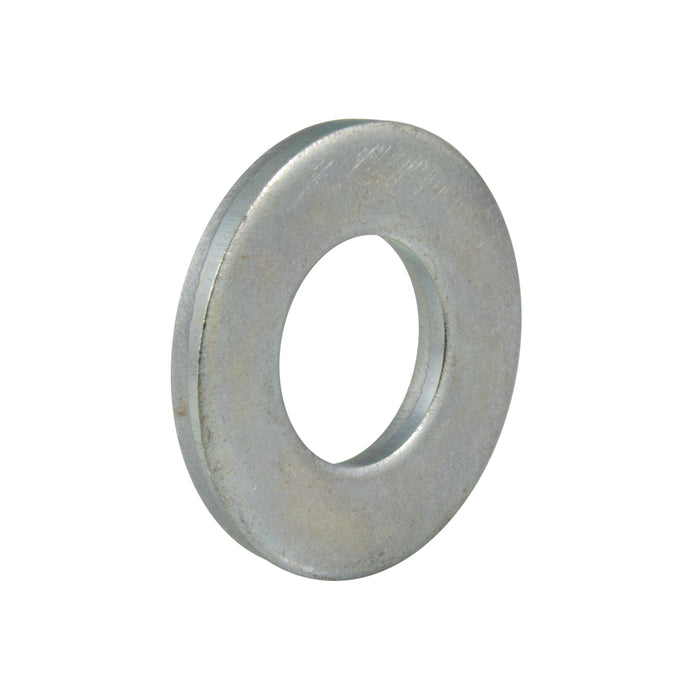

Round Flat Washer, DIN 126, No Chamfer M22 Cold Rolled Steel Zinc Plated DIN 126/ST-ZP M22

Part Number: 657-077ZP

Round Flat Washer, DIN 126, No Chamfer M22 Cold Rolled Steel Zinc Plated DIN 126/ST-ZP M22

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-077ZP

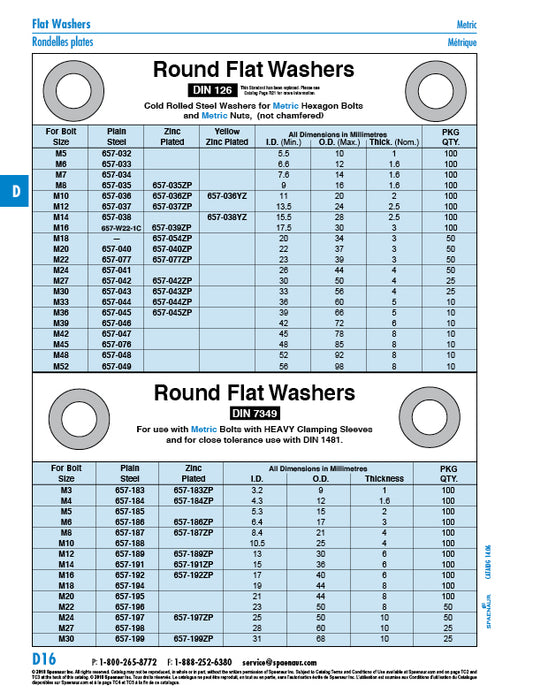

Catalog Page(s) D16
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Cold Rolled Steel
Finish Zinc Plated
Compatible Bolt Size M22
Inside Diameter 23 mm Min
Outside Diameter 39 mm Max
Thickness 3 mm
Standard DIN 126
