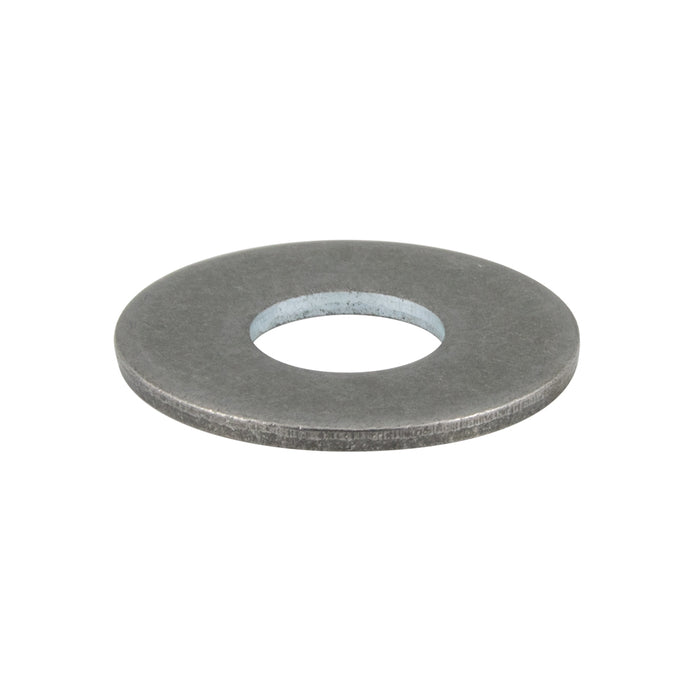

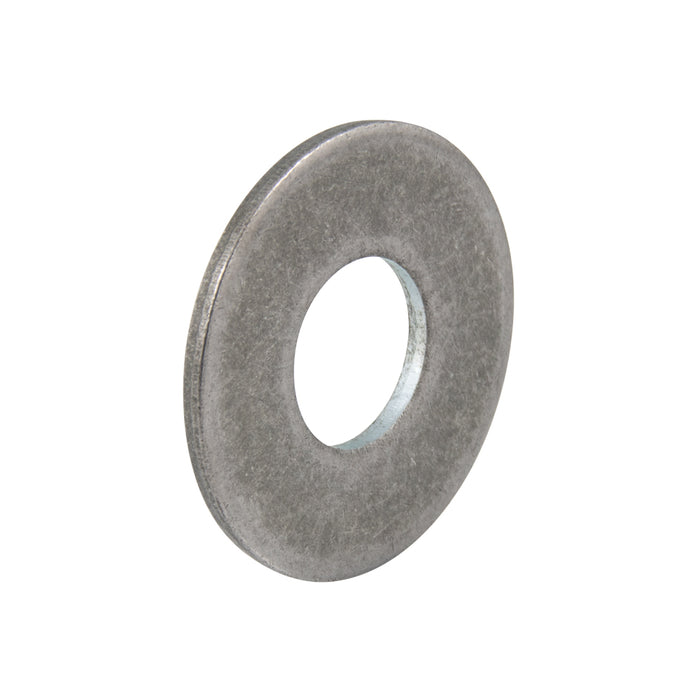

Round Flat Washer, DIN 126, No Chamfer M22 Cold Rolled Steel Plain DIN 126/ST M22 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 657-077

Round Flat Washer, DIN 126, No Chamfer M22 Cold Rolled Steel Plain DIN 126/ST M22

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 657-077

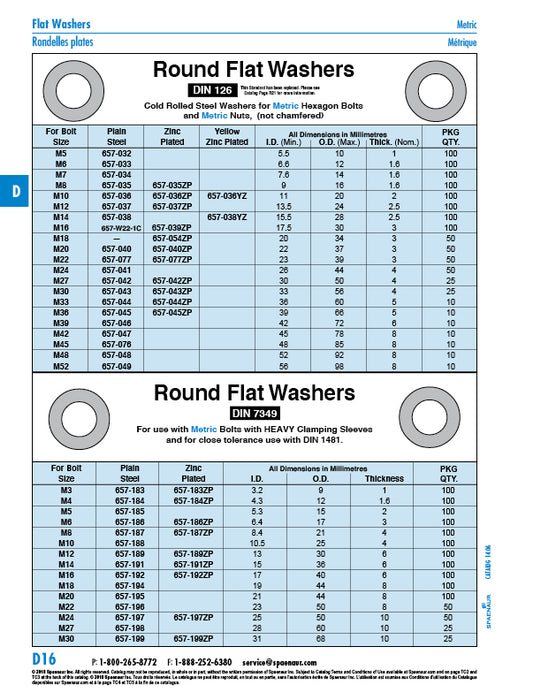

Catalog Page(s) D16
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Steel
Finish Plain
Compatible Bolt Size M22
Inside Diameter 23 mm Min
Outside Diameter 39 mm Max
Thickness 3 mm
Standard DIN 126
