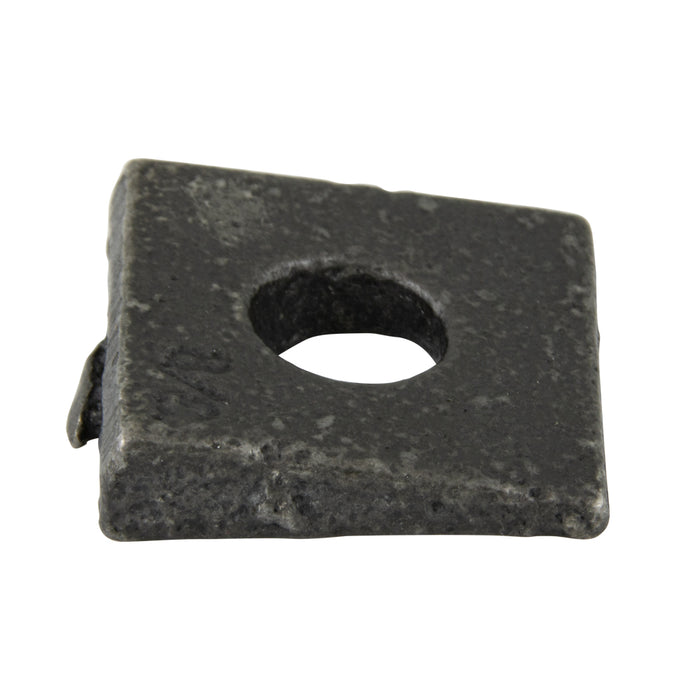

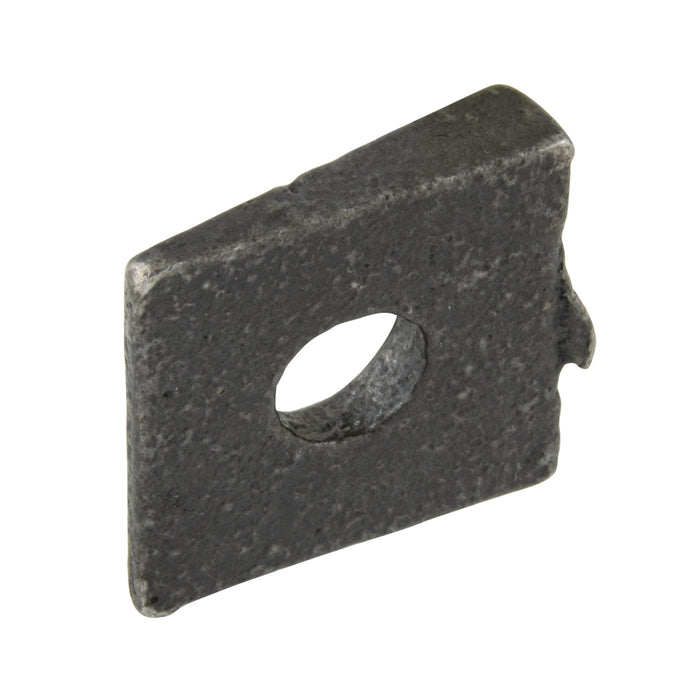

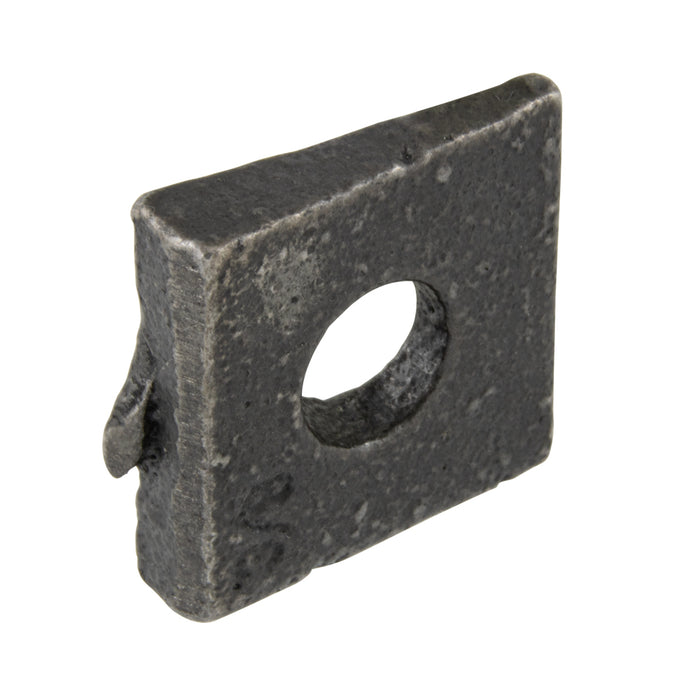

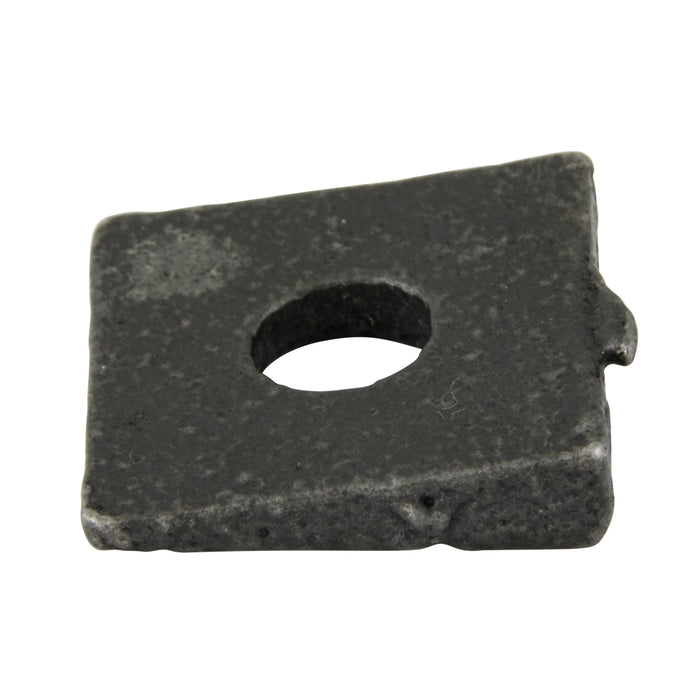

Square Bevel Washer, 16 2/3% Slope 11/32" Lrg End, 1/8" At Taper for 5/8" Bolt DIA Malleable Iron, Plain Finish by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-A01-1K

Legacy Part Number(s): W-291

Square Bevel Washer, 16 2/3% Slope 11/32" Lrg End, 1/8" At Taper for 5/8" Bolt DIA Malleable Iron, Plain Finish

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-A01-1K

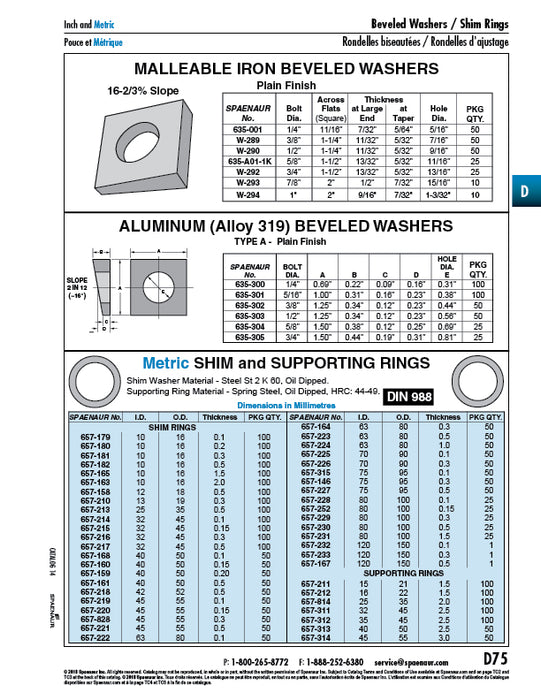

Catalog Page(s) D75,D85
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Legacy Part Number W-291
Slope 16-2/3%
Compatible Bolt Size 5/8"
Hole Diameter 11/16"
Material Malleable Iron
Finish Plain
Across Flats 1-1/2"
Length 1-1/2"
Thickness at Large Taper 13/32"
Thickness at Small Taper 5/32"
With Countersunk Hole [no]
