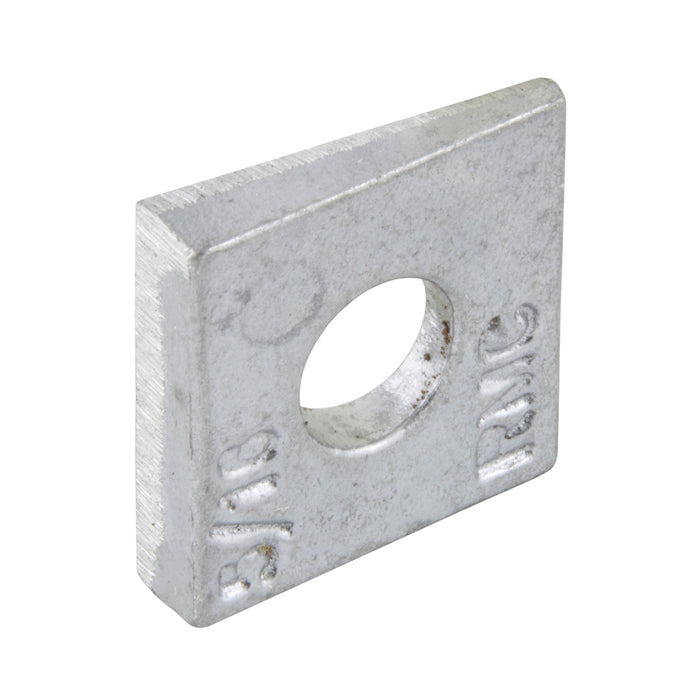

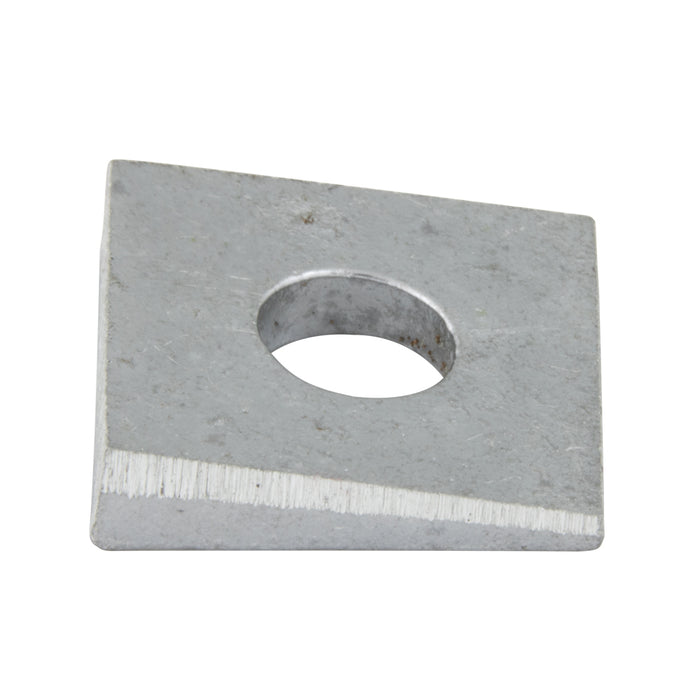

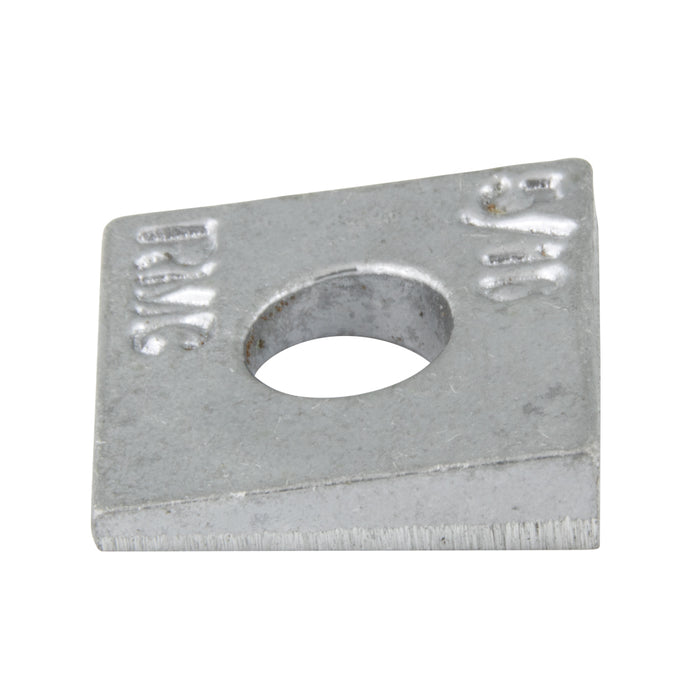

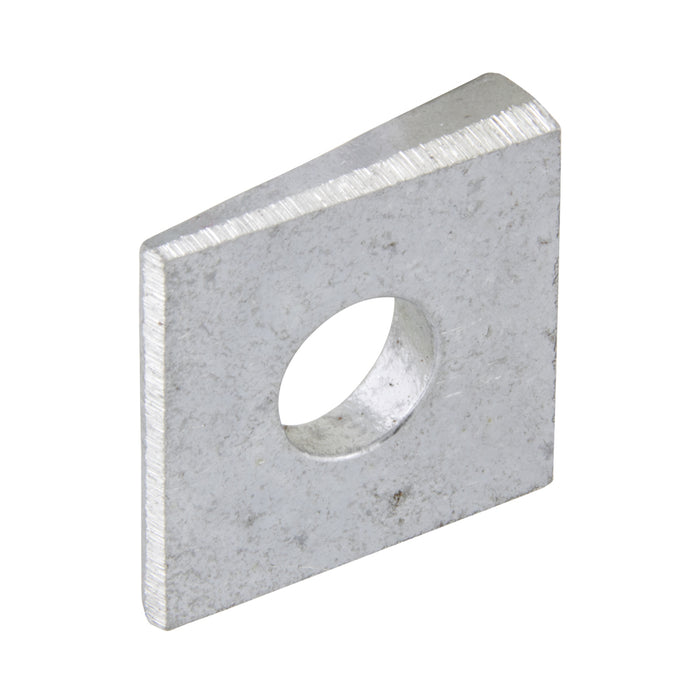

Beveled Washer Slope 2 In 12 Type A Style 1/4" Aluminum 319 by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-300

Beveled Washer Slope 2 In 12 Type A Style 1/4" Aluminum 319

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-300

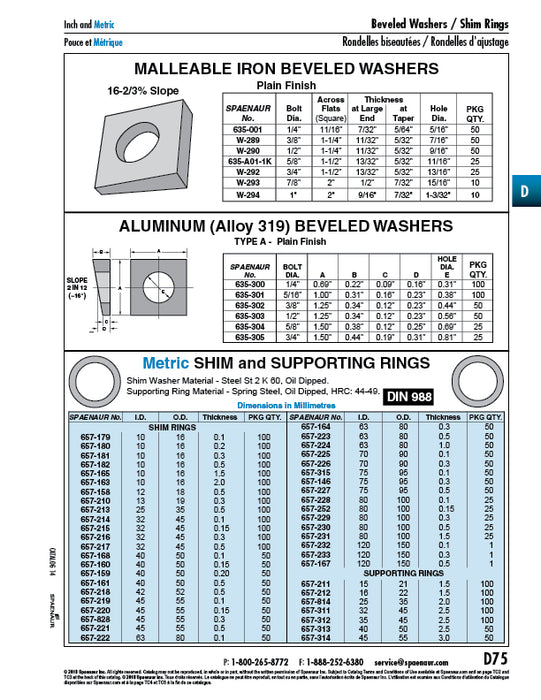

Catalog Page(s) D75,D85
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 2 IN 12; ~16°
Compatible Bolt Size 1/4"
Hole Diameter 0.31"
Material Aluminum Alloy 319
Finish Plain
Across Flats 0.69"
Length 0.69"
Thickness at Large Taper 0.22"
Thickness at Mid Taper 0.16"
Thickness at Small Taper 0.09"
With Countersunk Hole [no]
