Bevel Washer, 14% Slope for "I" Beams for M30 or 1-1/8" Bolt Size Steel Plain DIN 435 33(M30) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-068

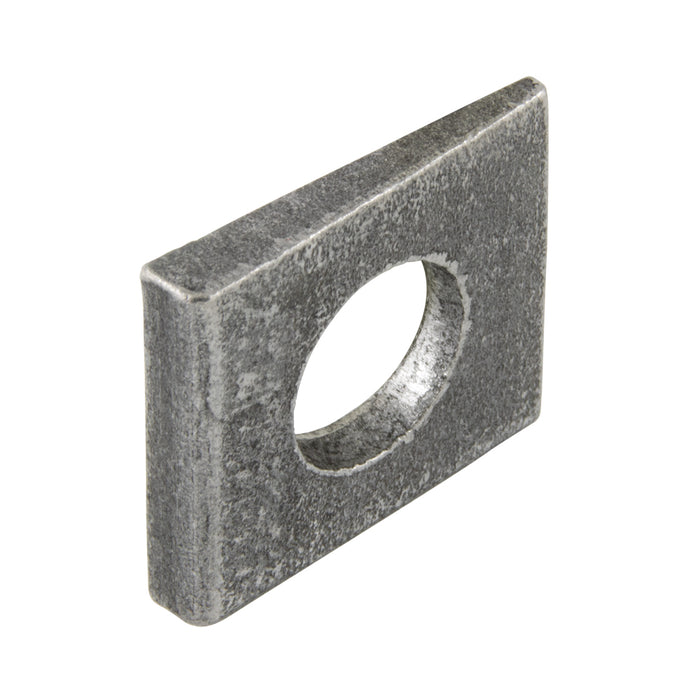

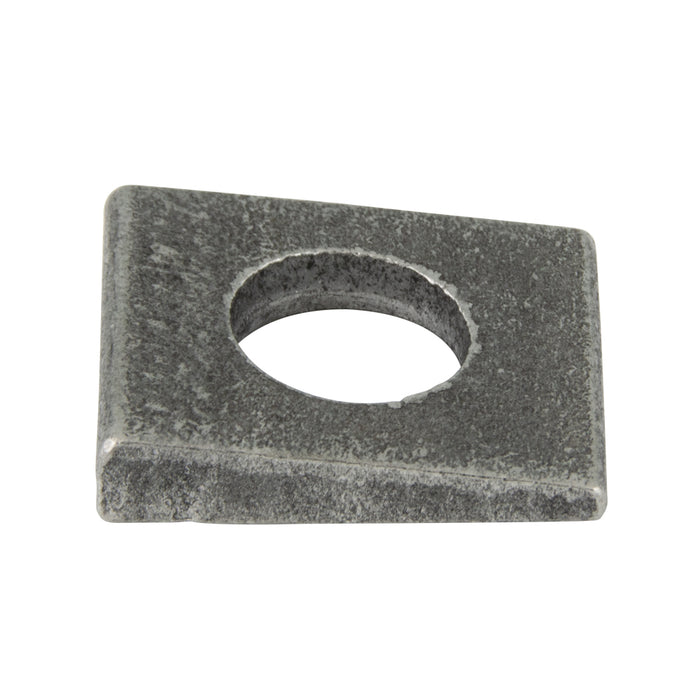

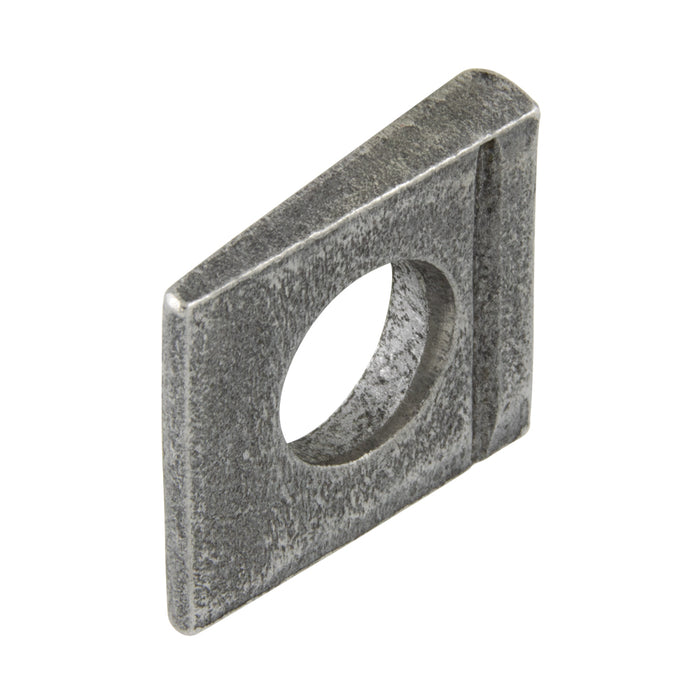

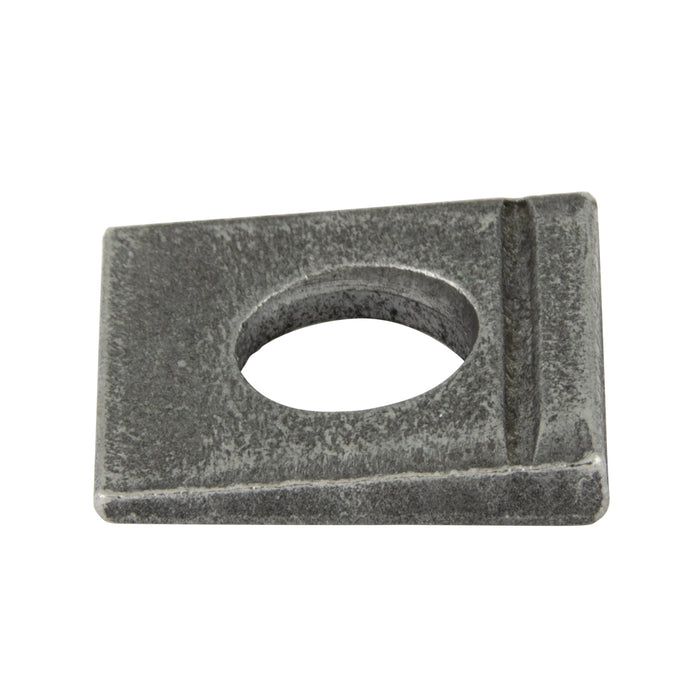

Bevel Washer, 14% Slope for "I" Beams for M30 or 1-1/8" Bolt Size Steel Plain DIN 435 33(M30)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-068

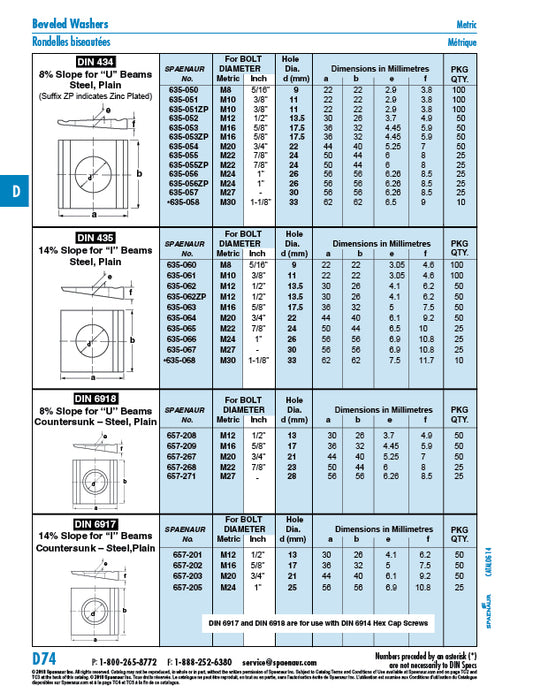

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 14%
Compatible Bolt Size M30
Hole Diameter 33 mm
Material Steel
Finish Plain
For Use With "I" Beams
Across Flats 62 mm
Length 62 mm
Thickness at Large Taper 11.7 mm
Thickness at Mid Taper 7.5 mm
With Countersunk Hole [no]
