Bevel Washer, 14% Slope for "I" Beams for M27 Bolt Size Steel Plain DIN 435 30(M27) by Spaenaur Inc.

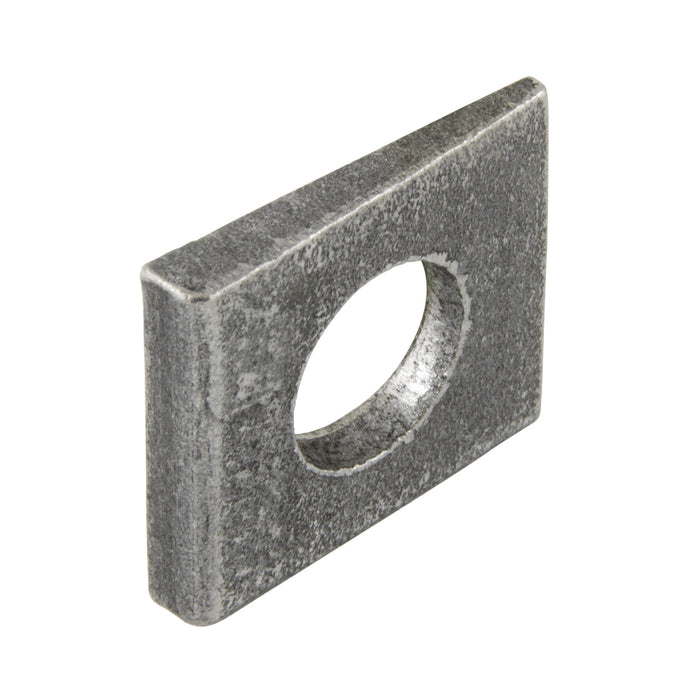

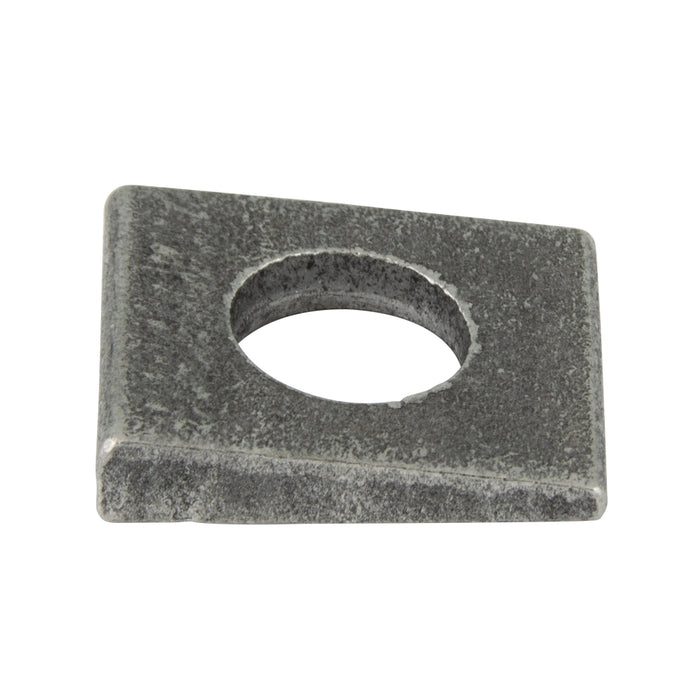

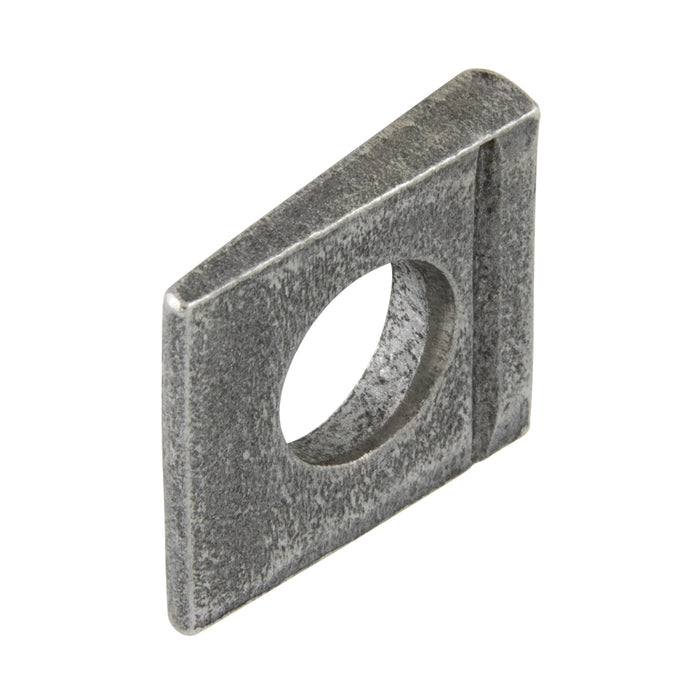

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-067

Bevel Washer, 14% Slope for "I" Beams for M27 Bolt Size Steel Plain DIN 435 30(M27)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-067

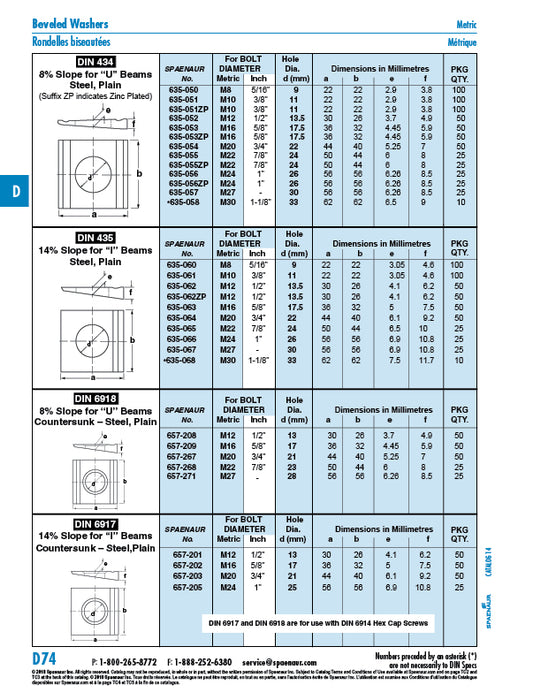

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 14%
Compatible Bolt Size M27
Hole Diameter 30 mm
Material Steel
Finish Plain
Standard DIN 435
For Use With "I" Beams
Across Flats 56 mm
Length 56 mm
Thickness at Large Taper 10.8 mm
Thickness at Mid Taper 6.9 mm
With Countersunk Hole [no]
