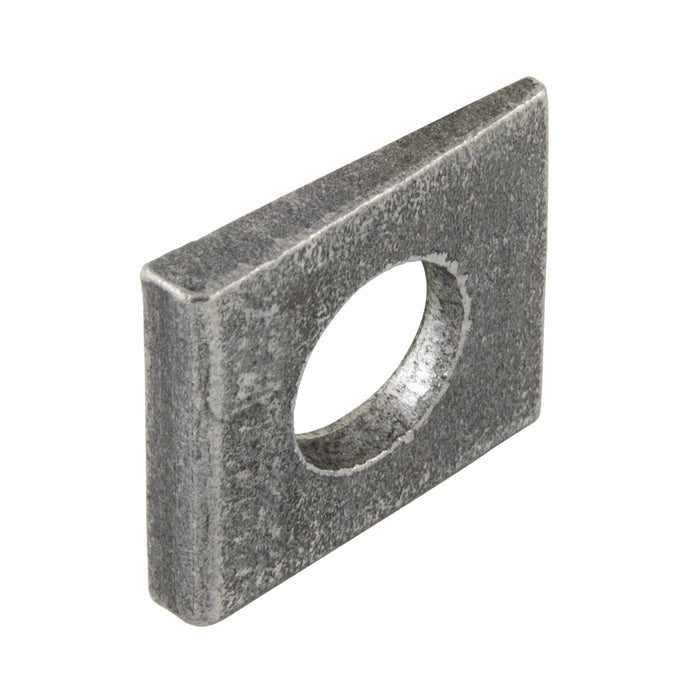

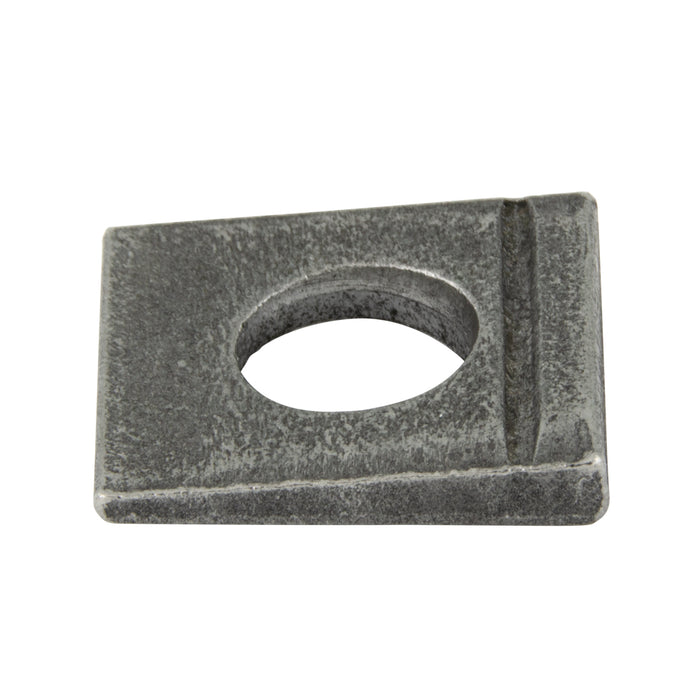

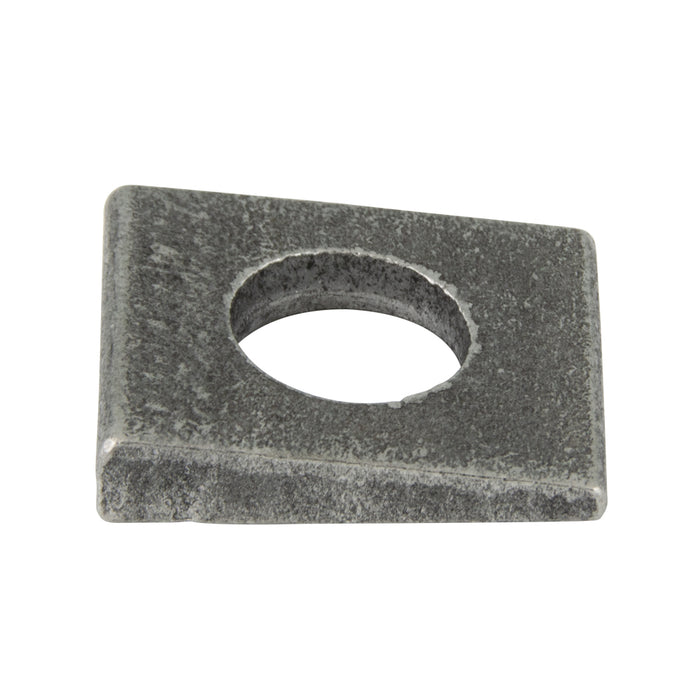

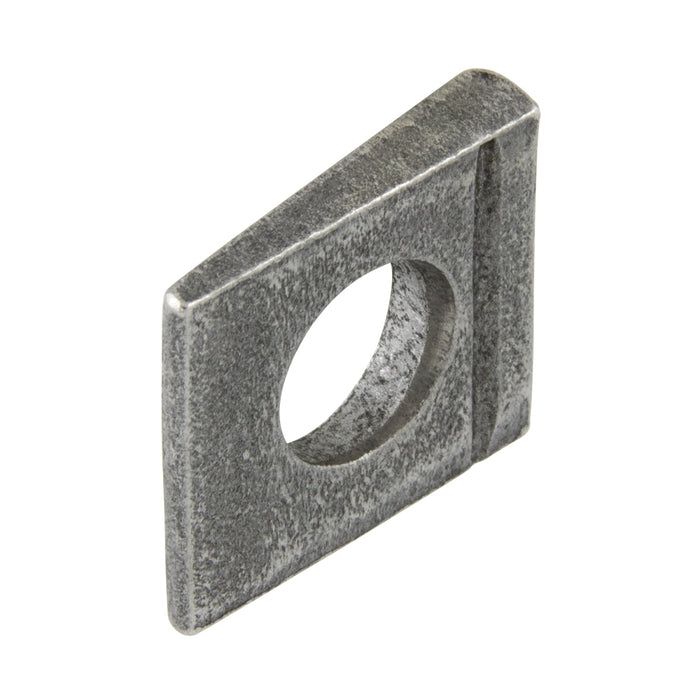

Bevel Washer, 14% Slope, DIN 435 for M24 or 1" Bolt Size Steel Plain DIN 435 26(M24) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-066

Bevel Washer, 14% Slope, DIN 435 for M24 or 1" Bolt Size Steel Plain DIN 435 26(M24)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-066

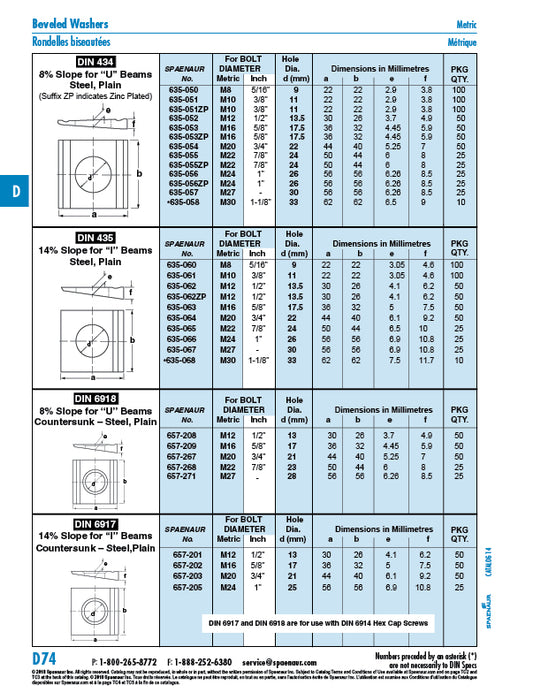

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 14%
Compatible Bolt Size M24
Hole Diameter 26 mm
Material Steel
Finish Plain
Standard DIN 435
For Use With "I" Beams
Across Flats 56 mm
Length 56 mm
Thickness at Large Taper 10.8 mm
Thickness at Mid Taper 6.9 mm
With Countersunk Hole [no]
