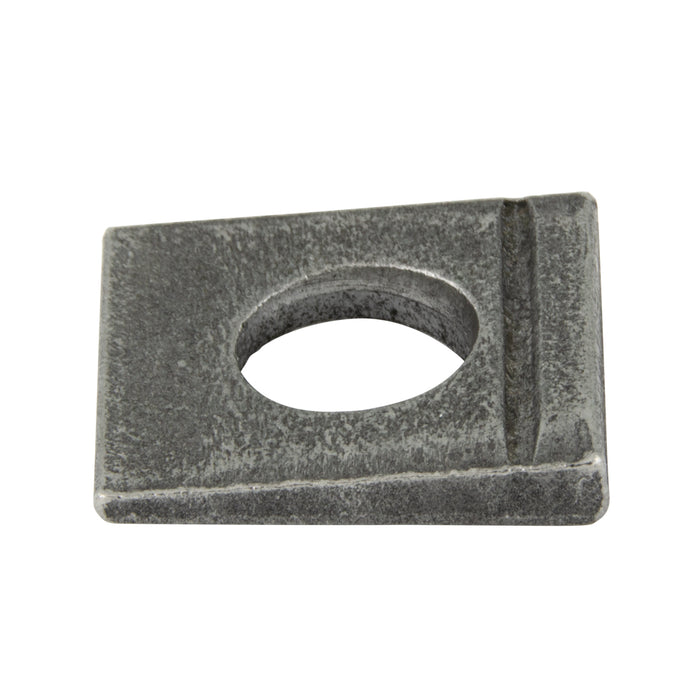

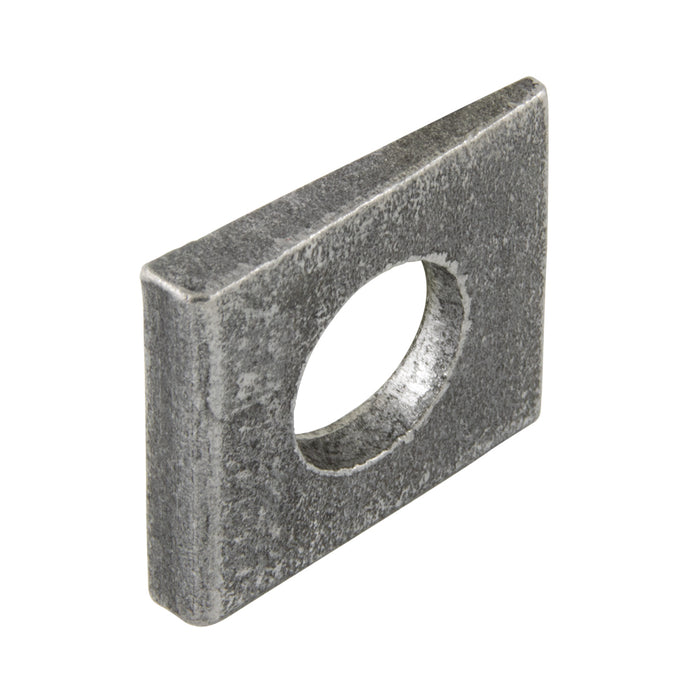

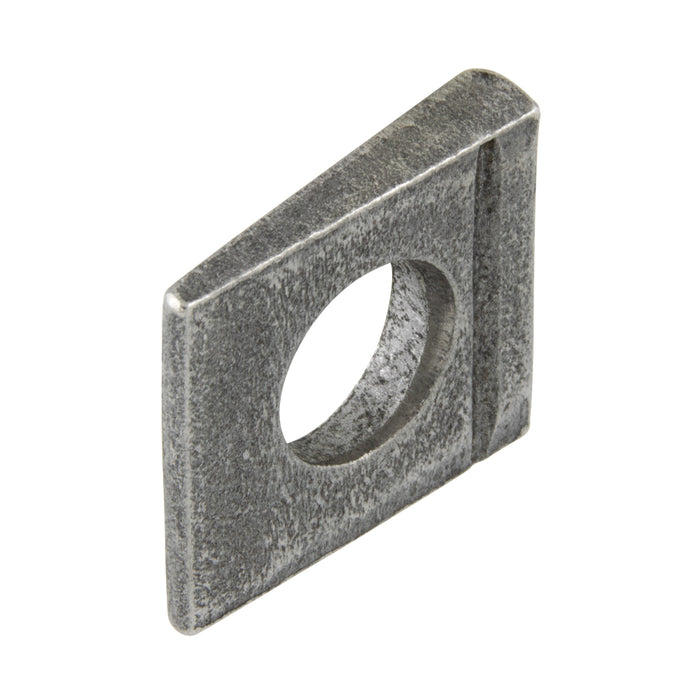

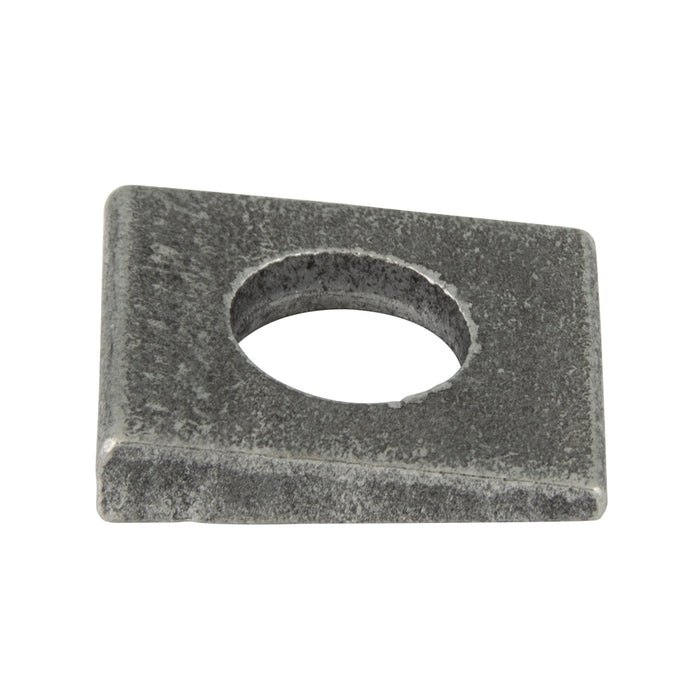

Bevel Washer, 14% Slope, DIN 435 for M22 or 7/8" Bolt Size Steel Plain DIN 435 24(M22) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-065

Bevel Washer, 14% Slope, DIN 435 for M22 or 7/8" Bolt Size Steel Plain DIN 435 24(M22)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-065

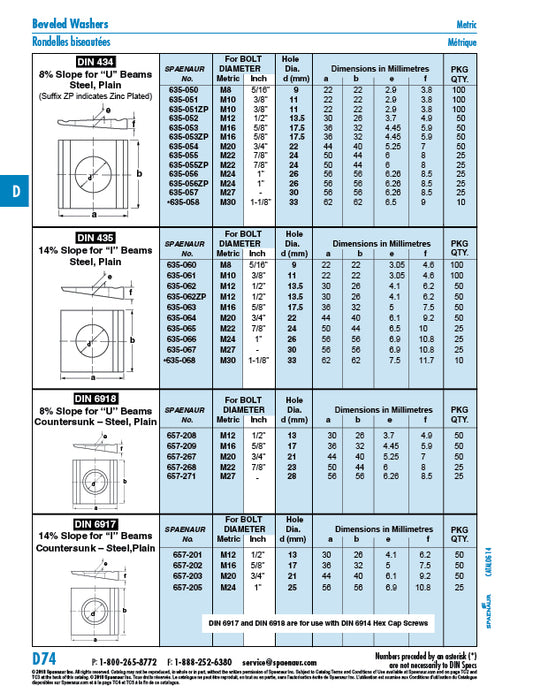

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 14%
Compatible Bolt Size M22
Hole Diameter 24 mm
Material Steel
Finish Plain
Standard DIN 435
For Use With "I" Beams
Across Flats 44 mm
Length 50 mm
Thickness at Large Taper 10 mm
Thickness at Mid Taper 6.5 mm
With Countersunk Hole [no]
