Beveled Washer, For "I" Beams, 14% Slope, for M16 Bolt Dia, 17.5 mm Hole Dia, Steel, Plain by Spaenaur Inc.

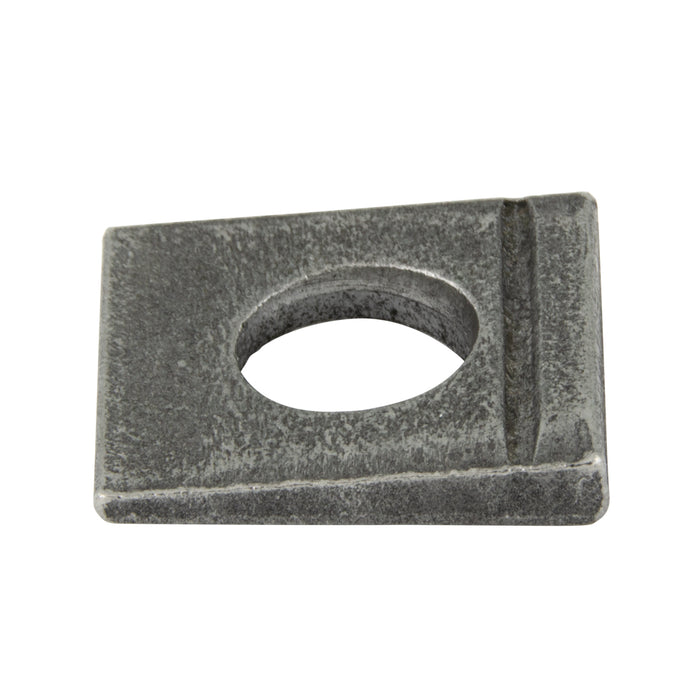

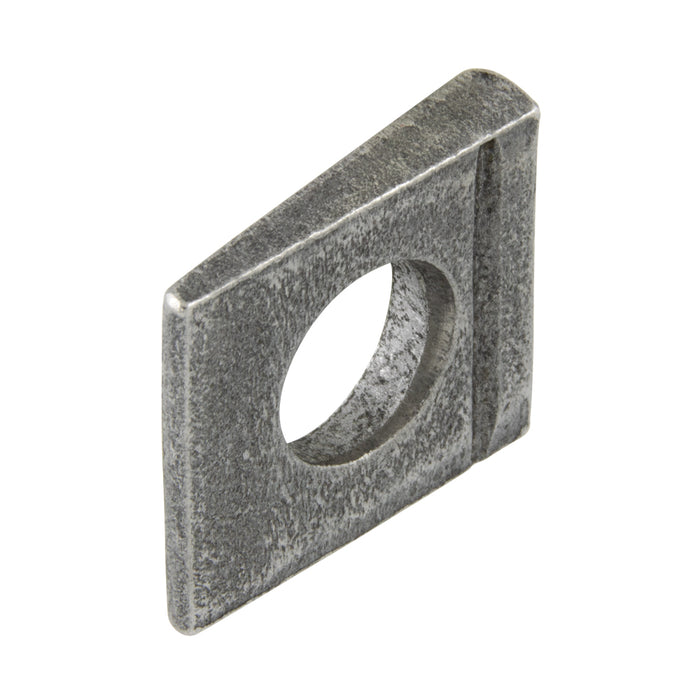

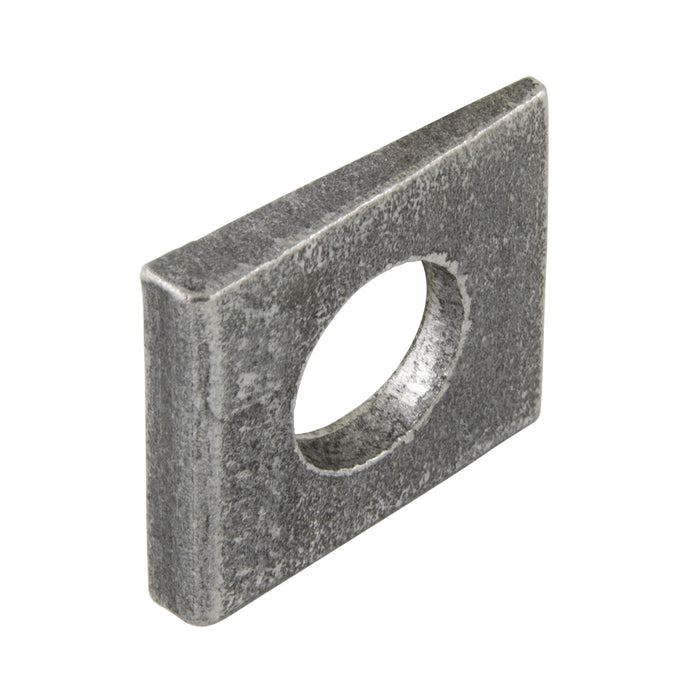

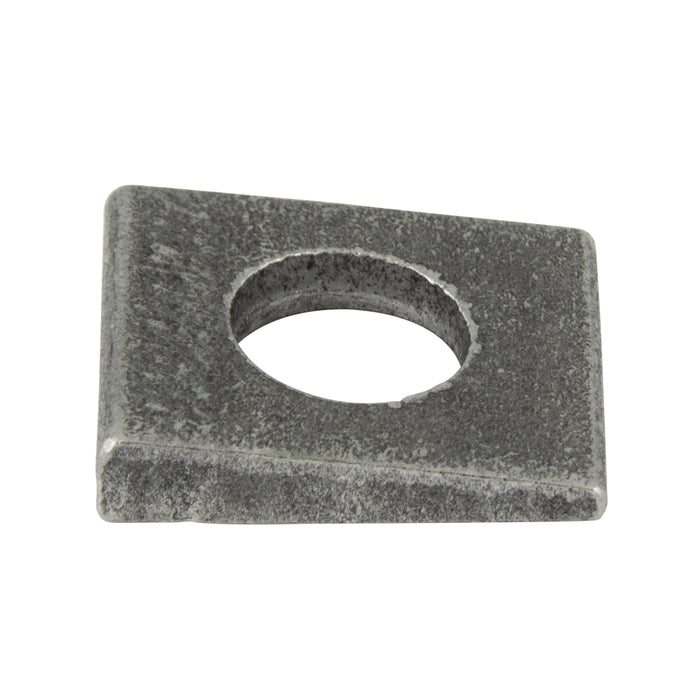

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-063

Beveled Washer, For "I" Beams, 14% Slope, for M16 Bolt Dia, 17.5 mm Hole Dia, Steel, Plain

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-063

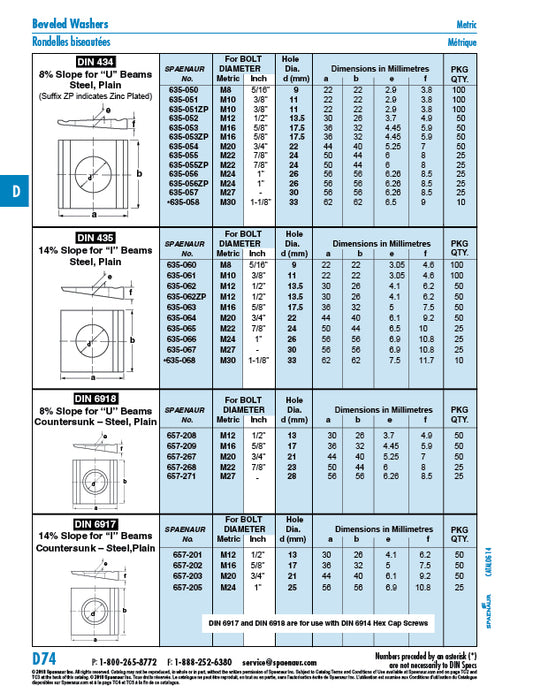

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 0.14000000000000001
Compatible Bolt Size M16
Hole Diameter 17.5 mm
Material Steel
Finish Plain
Across Flats 32 mm
Length 36 mm
Thickness at Large Taper 7.5 mm
Thickness at Small Taper 5 mm
With Countersunk Hole No
