Bevel Washer 14% Slope for "I" Beam for Bolt M12 Steel Zinc Plated DIN 435/ST-ZP 14(M12) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-062ZP

Bevel Washer 14% Slope for "I" Beam for Bolt M12 Steel Zinc Plated DIN 435/ST-ZP 14(M12)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-062ZP

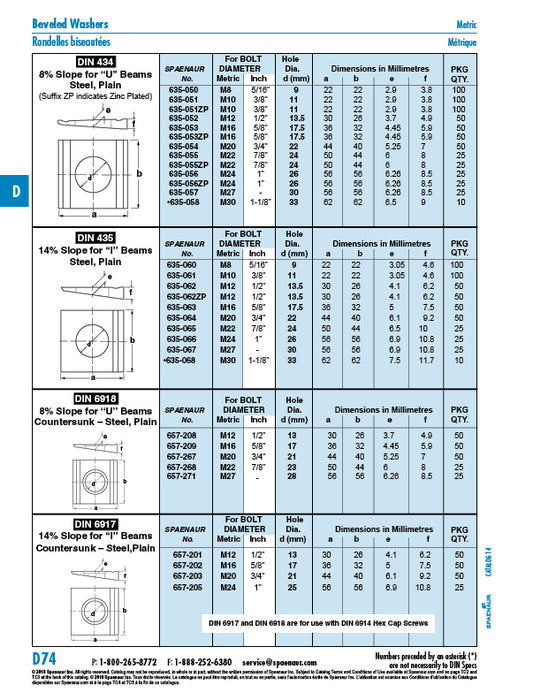

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 14%
Compatible Bolt Size M12
Hole Diameter 13.5 mm
Material Steel
Finish Zinc Plated
Standard DIN 435
For Use With "I" Beams
Across Flats 26 mm
Length 30 mm
Thickness at Large Taper 6.2 mm
Thickness at Mid Taper 4.1 mm
With Countersunk Hole [no]
