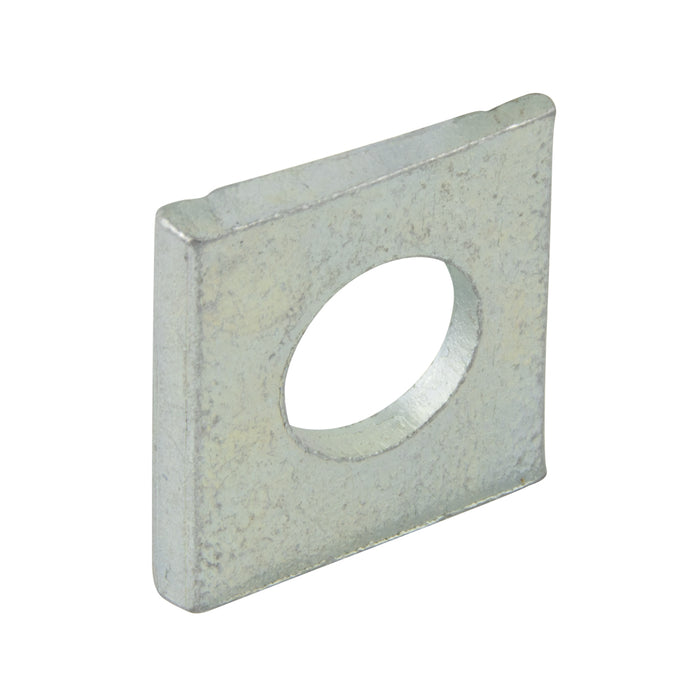

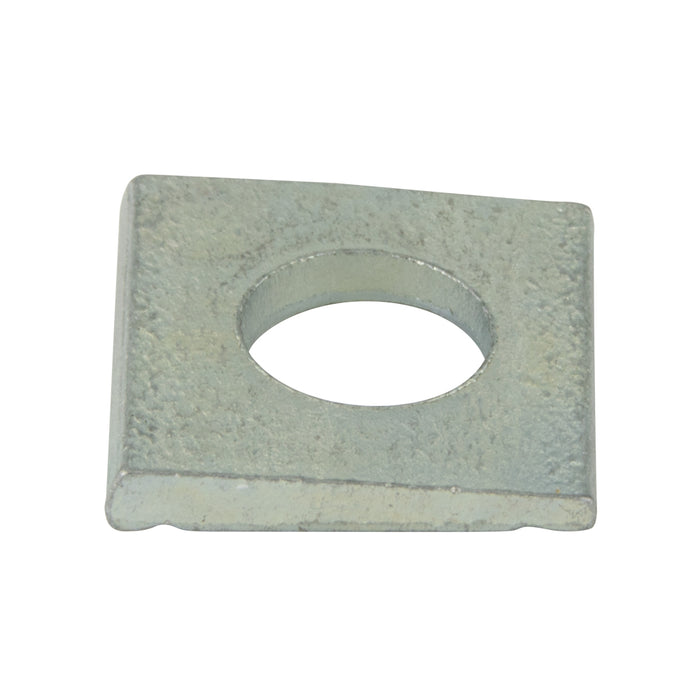

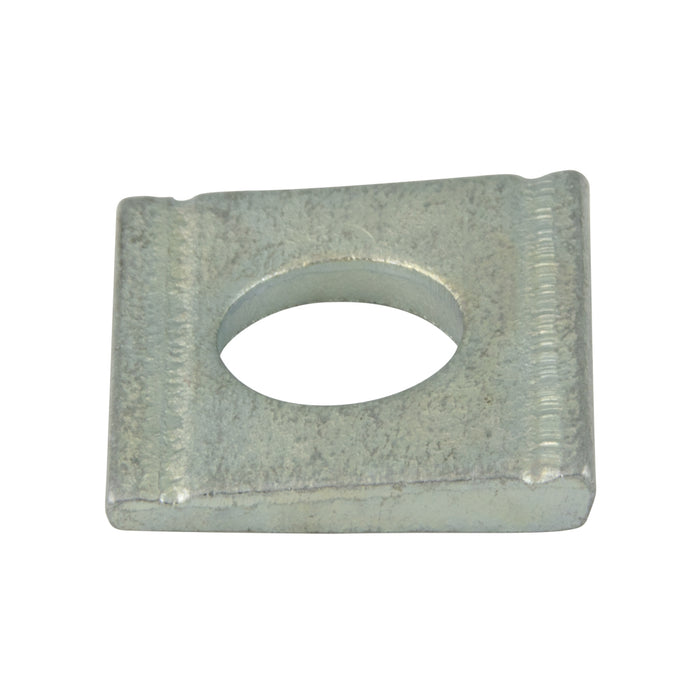

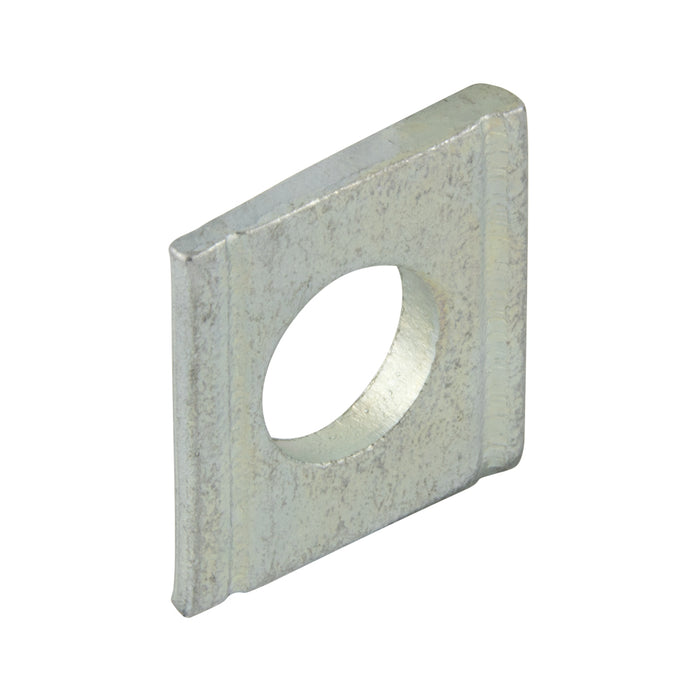

Bevel Washer 8% Slope for Bolt Size M16 Steel Zinc Plated DIN 434/ST-ZP 18(M16) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-053ZP

Bevel Washer 8% Slope for Bolt Size M16 Steel Zinc Plated DIN 434/ST-ZP 18(M16)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-053ZP

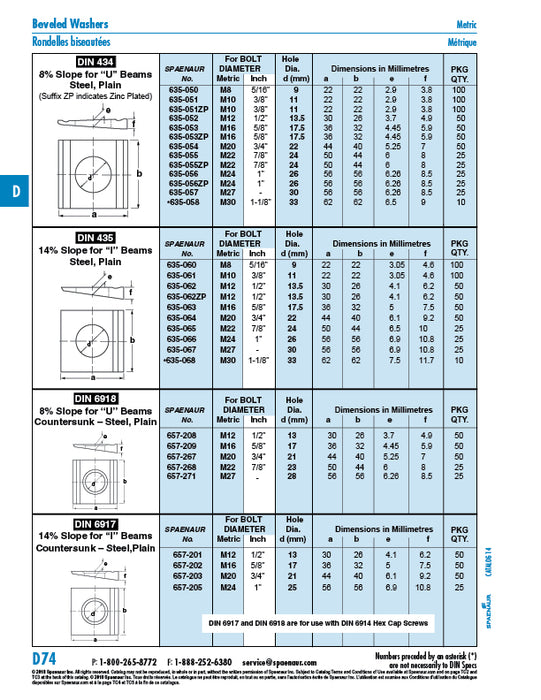

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 8%
Compatible Bolt Size M16
Hole Diameter 17.5 mm
Material Steel
Finish Zinc Plated
Standard DIN 434
For Use With "U" Beams
Across Flats 32 mm
Length 36 mm
Thickness at Large Taper 5.9 mm
Thickness at Mid Taper 4.45 mm
With Countersunk Hole [no]
