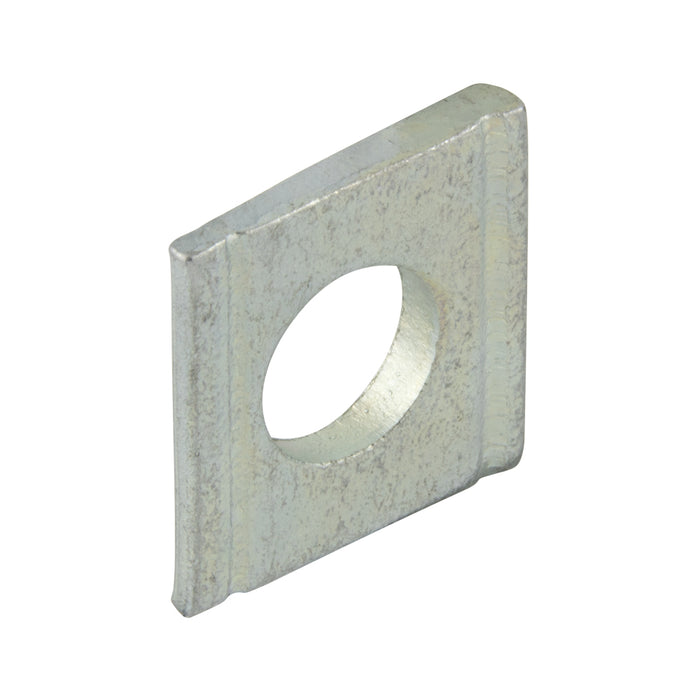

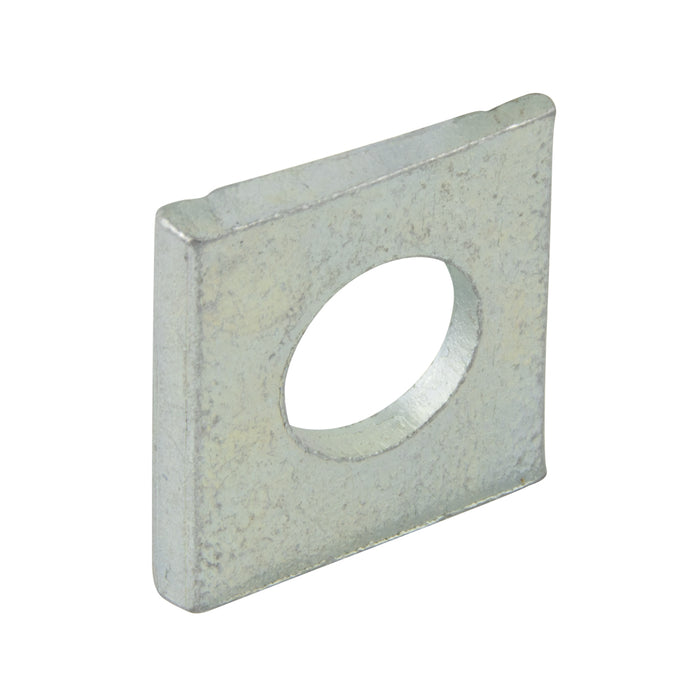

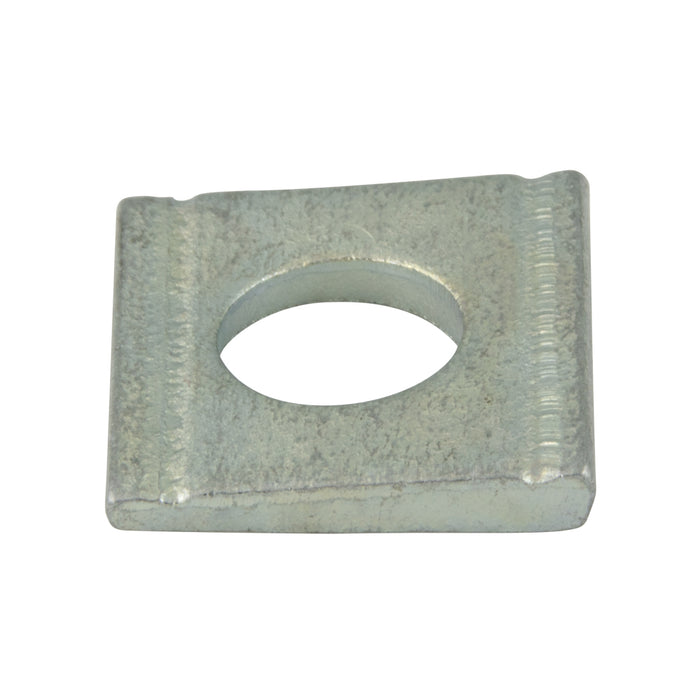

Square Bevel Washer DIN434 ID 11 mm (M10) Steel Zinc Plated DIN 434/ST-ZP 11(M10) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-051ZP

Square Bevel Washer DIN434 ID 11 mm (M10) Steel Zinc Plated DIN 434/ST-ZP 11(M10)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-051ZP

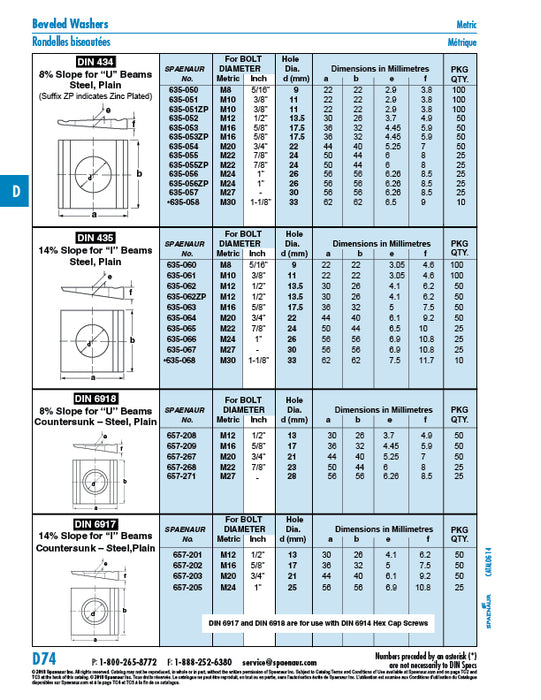

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 8%
Compatible Bolt Size M10
Hole Diameter 11 mm
Material Steel
Finish Zinc Plated
Standard DIN 434
For Use With "U" Beams
Across Flats 22 mm
Length 22 mm
Thickness at Large Taper 3.8 mm
Thickness at Mid Taper 2.9 mm
With Countersunk Hole [no]
