Bevel Washer,8% Slope for "U" Beams for M8 or 5/16" Bolt Size Steel Plain DIN 434/ST 9(M8) by Spaenaur Inc.

*Representative images - please refer to the product specifications for exact product information

Part Number: 635-050

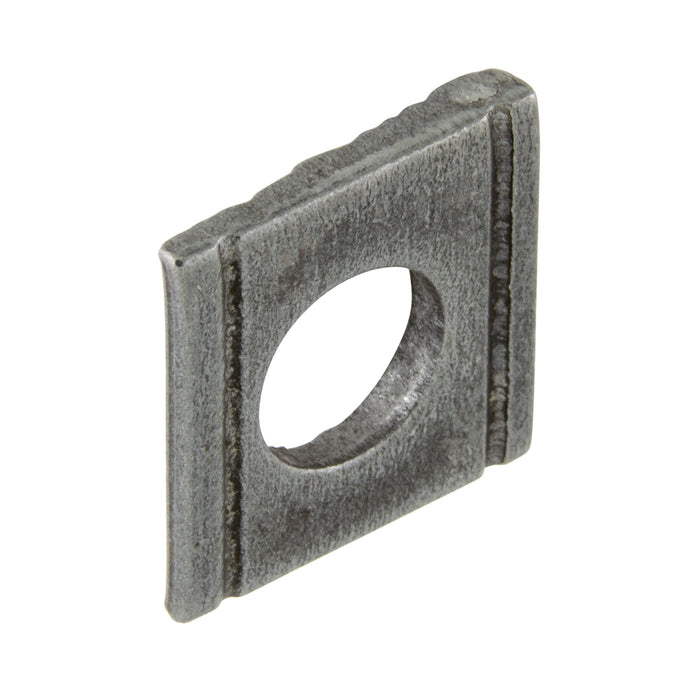

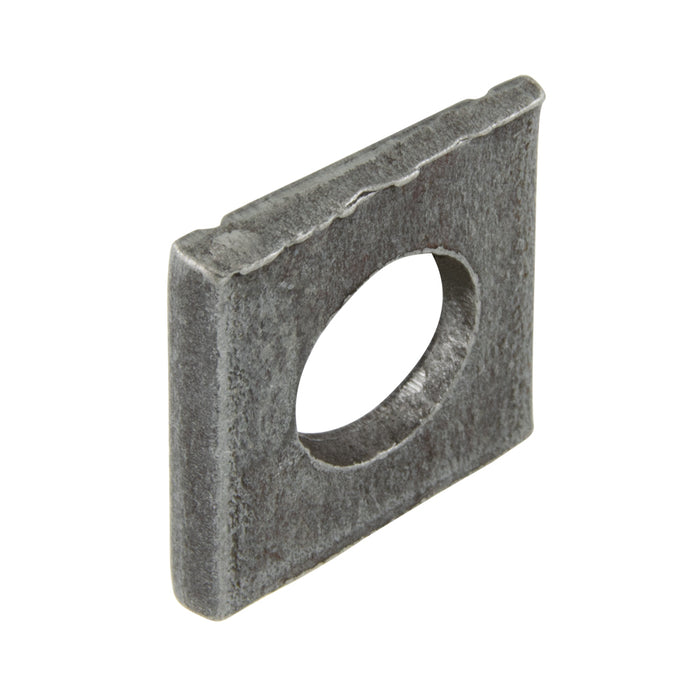

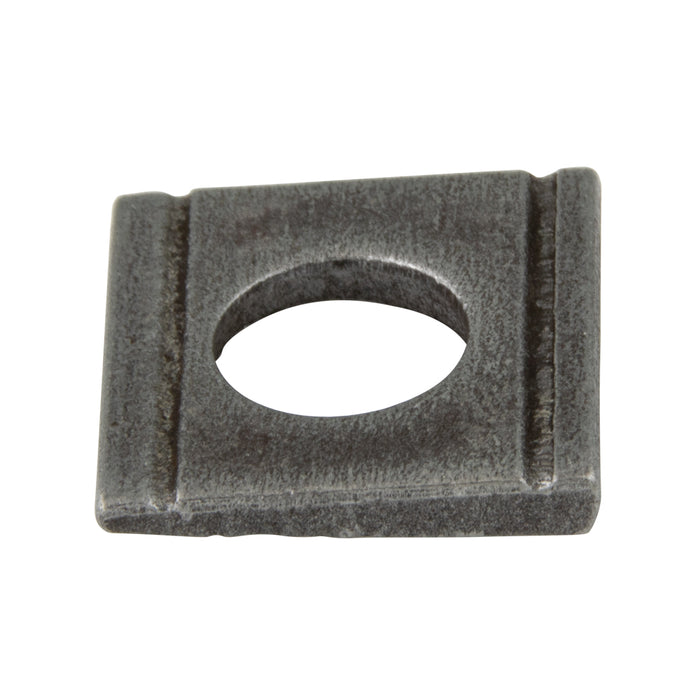

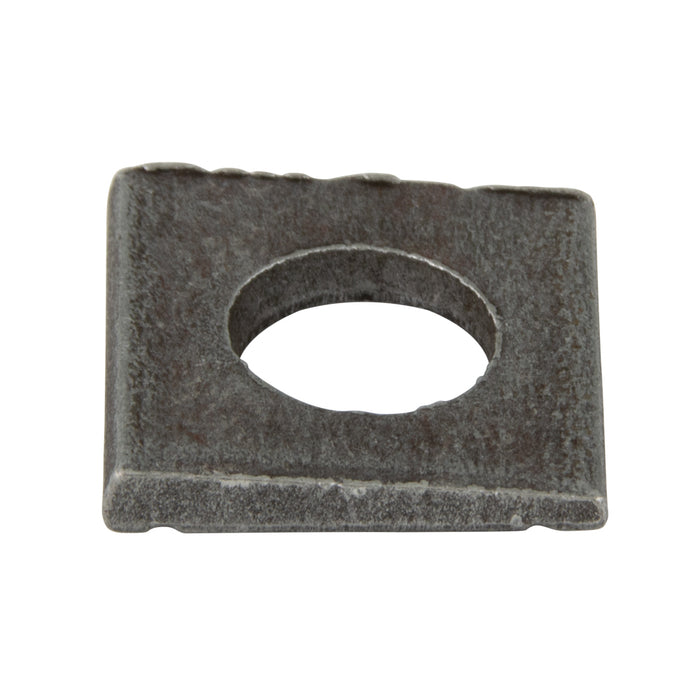

Bevel Washer,8% Slope for "U" Beams for M8 or 5/16" Bolt Size Steel Plain DIN 434/ST 9(M8)

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 635-050

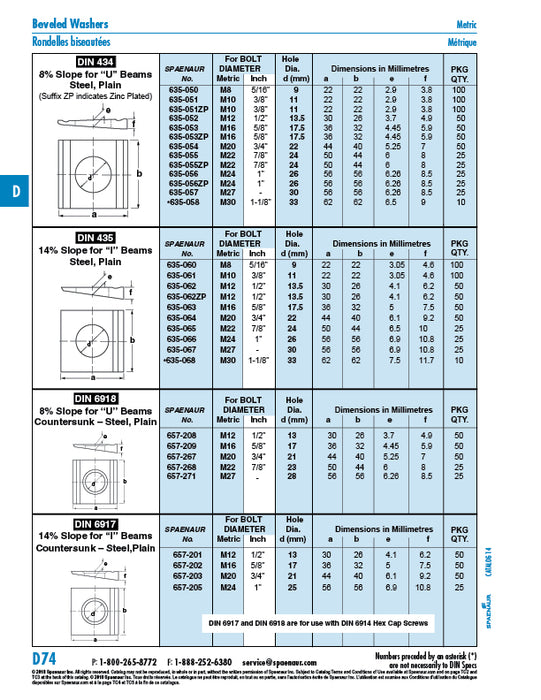

Catalog Page(s) D74
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Slope 8%
Compatible Bolt Size M8
Hole Diameter 9 mm
Material Steel
Finish Plain
Standard DIN 434
For Use With "U" Beams
Across Flats 22 mm
Length 22 mm
Thickness at Large Taper 3.8 mm
Thickness at Mid Taper 2.9 mm
With Countersunk Hole [no]
