Machine Screw Phillips Pan DIN 7985 M2.5 x 0.45 Pitch x 25mm LGTH A2 Stainless Steel DIN 7985/A2 M2.5X25

Part Number: 425-108

Machine Screw Phillips Pan DIN 7985 M2.5 x 0.45 Pitch x 25mm LGTH A2 Stainless Steel DIN 7985/A2 M2.5X25

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 425-108

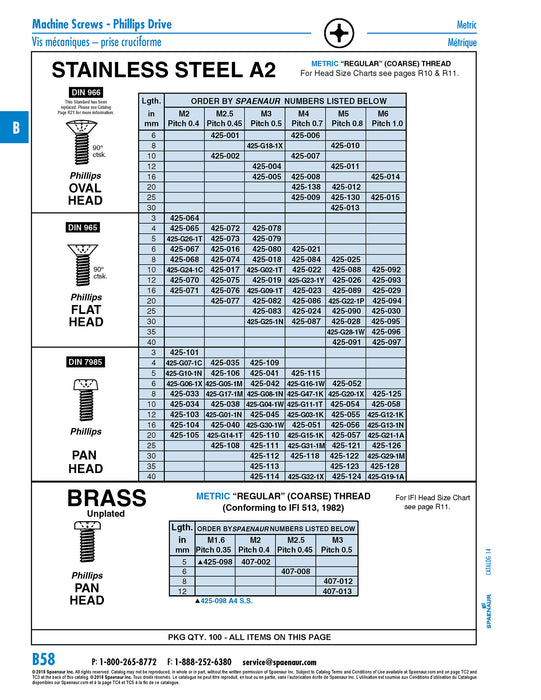

Catalog Page(s) B58
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Raised Cheese Head
Drive Type Phillips
Thread Size M2.5 x 0.45 mm
Thread Standard UNC
Length 25 mm
Material Stainless Steel
Material Grade | Material Class A2
Standard DIN 7985
Head Diameter/Width Across Flats 5 mm
Head Height 2 mm
