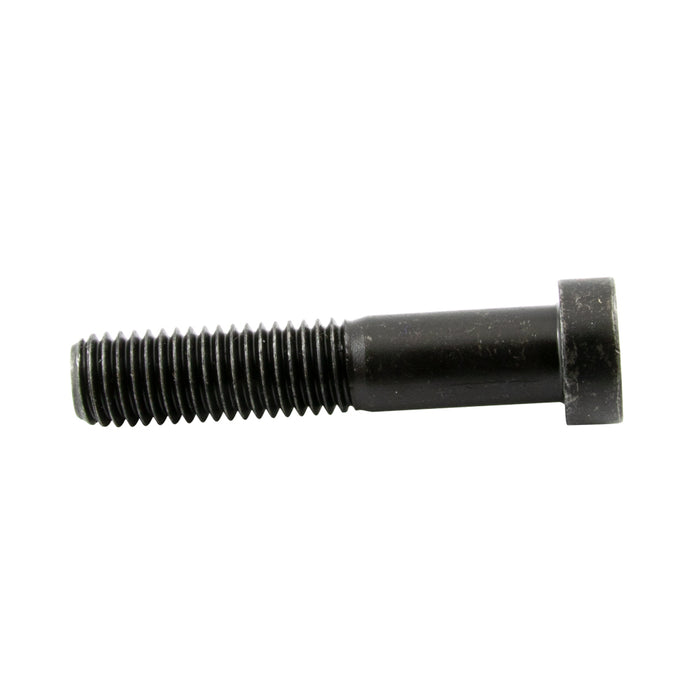

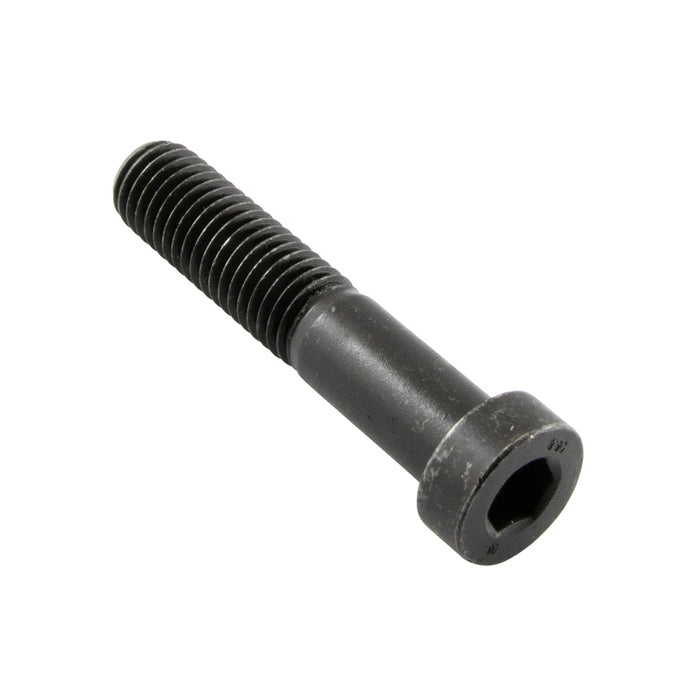

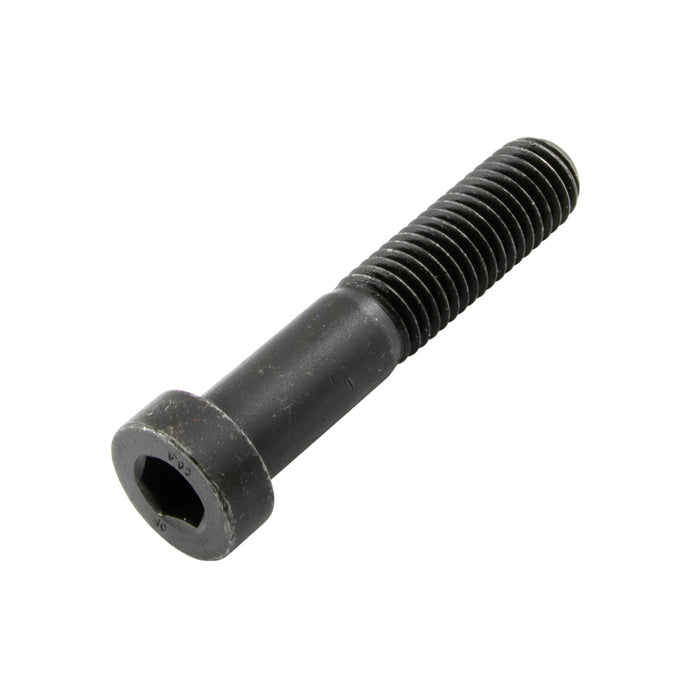

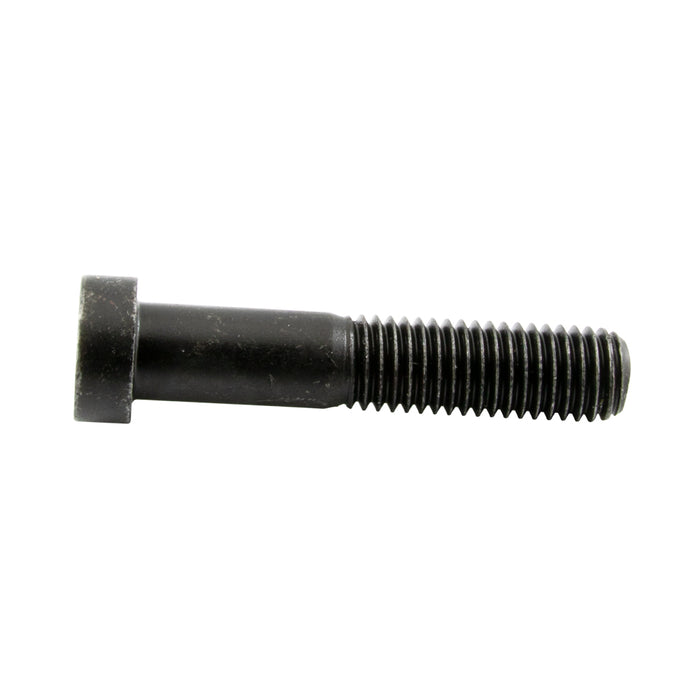

Low Head Hex Socket Cap Screw W/Pilot Recess, DIN 6912 M5 x .80 x 12mm CL 8.8 Steel Plain DIN 6912/8.8 M5X12

*Representative images - please refer to the product specifications for exact product information

Part Number: 366-1178

Low Head Hex Socket Cap Screw W/Pilot Recess, DIN 6912 M5 x .80 x 12mm CL 8.8 Steel Plain DIN 6912/8.8 M5X12

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 366-1178

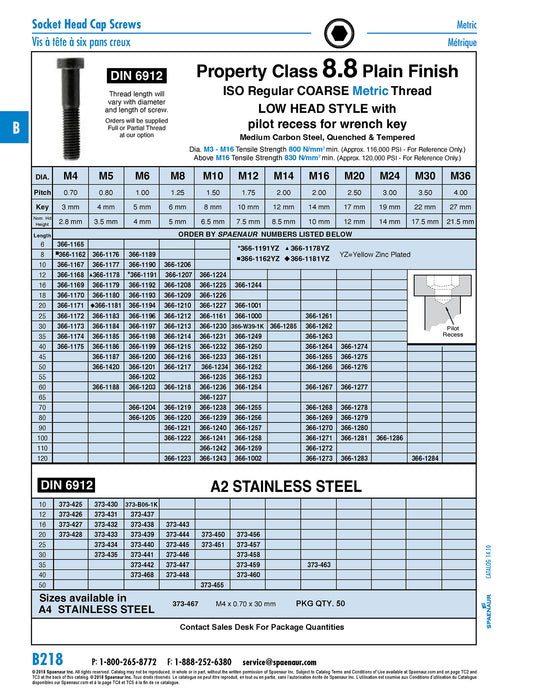

Catalog Page(s) B218
System of Measurement Metric
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Low Head
Drive Type Hex Socket
Length 12 mm
Material Medium Carbon Steel
Finish Plain
Material Grade | Material Class Class 8.8
Head Diameter 8.5 mm
Head Height Max 3.5 mm
Thread Size M5 x 0.80 mm
Key Size 4 mm
Standard DIN 6912
