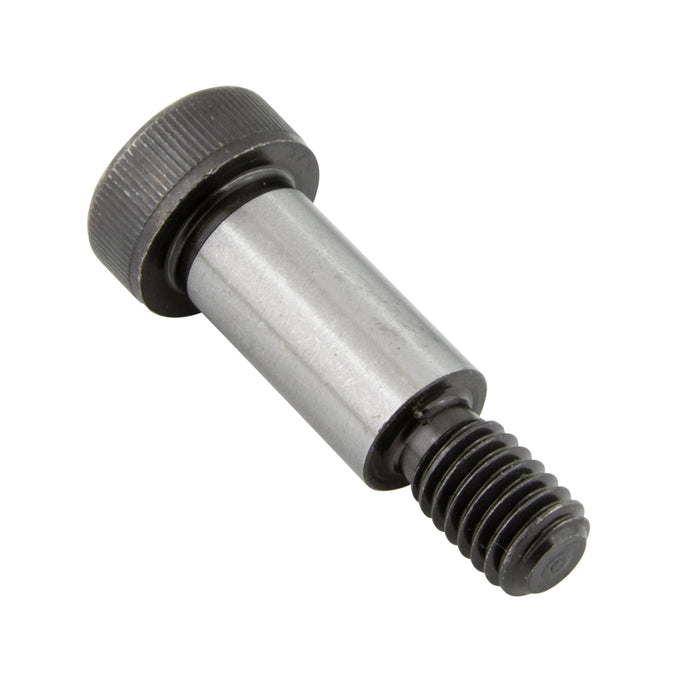

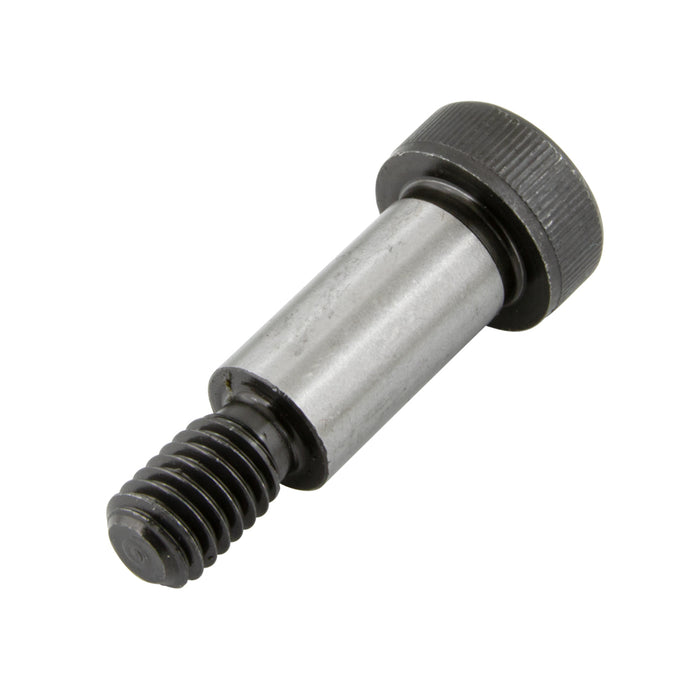

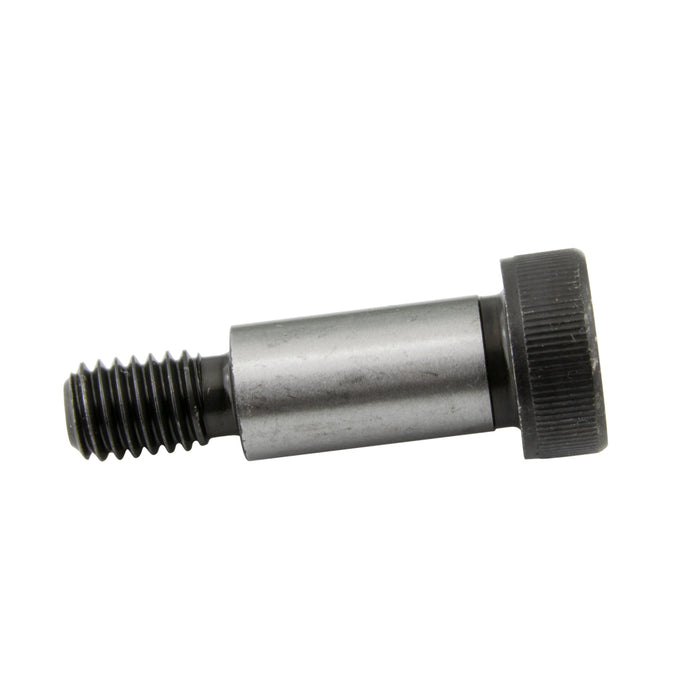

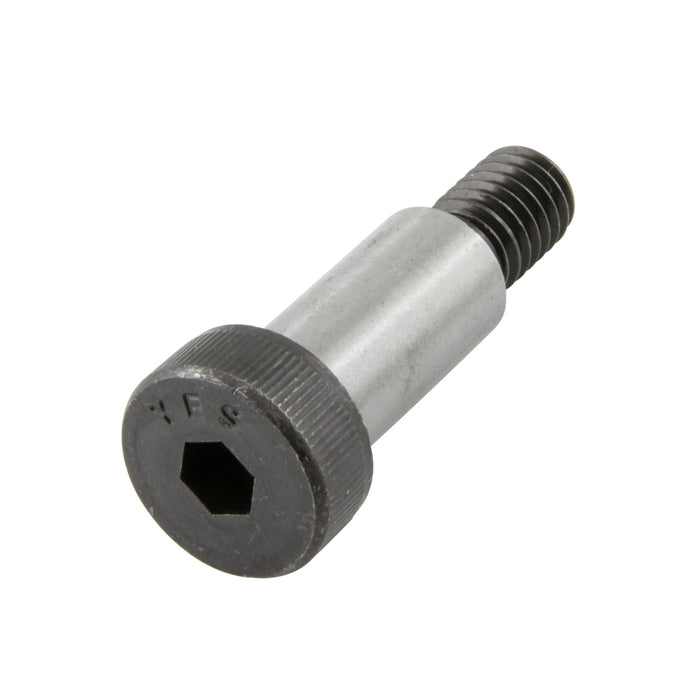

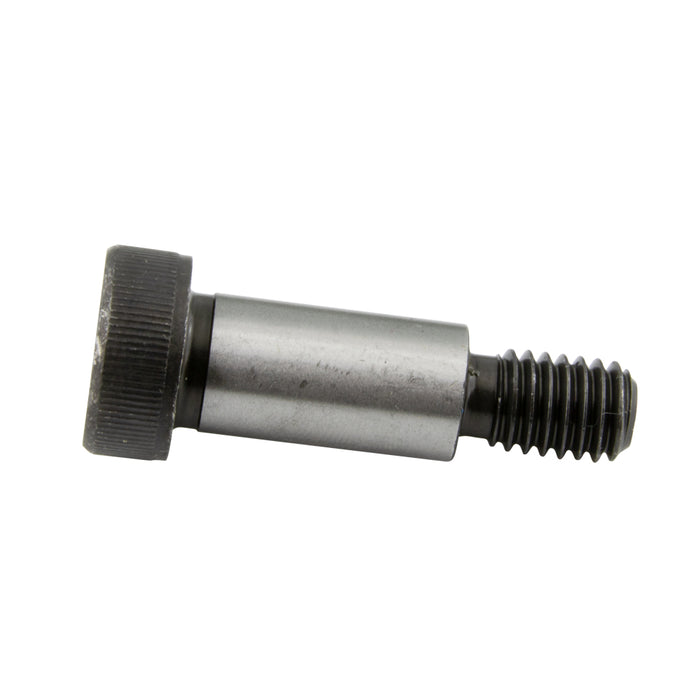

Hex Socket Shoulder Screw with Pellet Nylon Insert 1/4" x 5/8" Shoulder (#10-24 THRD) Alloy Steel Plain / Nylon Insert

Part Number: 359-201

Hex Socket Shoulder Screw with Pellet Nylon Insert 1/4" x 5/8" Shoulder (#10-24 THRD) Alloy Steel Plain / Nylon Insert

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-201

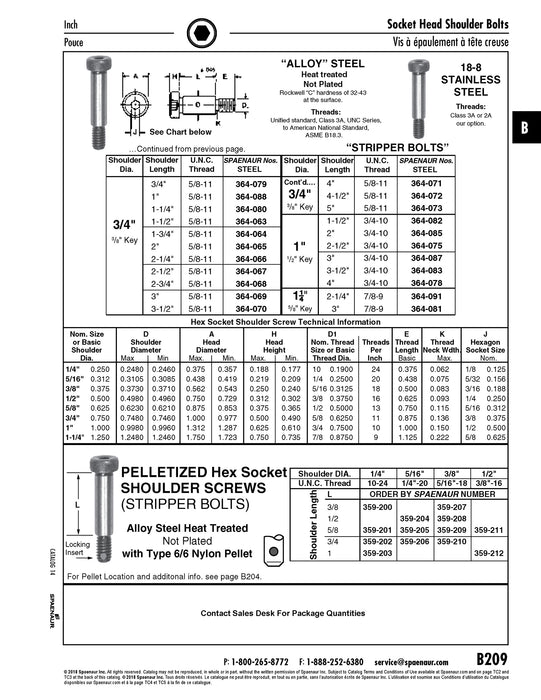

Catalog Page(s) B209
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Material Alloy Steel
Finish Plain
Material Grade | Material Class Grade 8
Head Type Plain or Knurled Head
Drive Type Hex Socket
Head Diameter 0.375 Max.; 0.357 Min.
Head Height 0.188 Max.; 0.177 Min.
Thread Size #10-24
Thread Class 3A
Thread Length 0.375 Basic
Shoulder Diameter 0.250 Nom; 0.2480 Max; 0.2460 Min
Shoulder Length 5/8 "
