Flat Head Hex Socket Cap Screw with Pellet Nylon/Insert UNC 1/4"-20 UNC x 3/4" Alloy Steel Plain/ Nylon Insert ANSI B18.3-1986

*Representative images - please refer to the product specifications for exact product information

Part Number: 359-091

Flat Head Hex Socket Cap Screw with Pellet Nylon/Insert UNC 1/4"-20 UNC x 3/4" Alloy Steel Plain/ Nylon Insert ANSI B18.3-1986

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 359-091

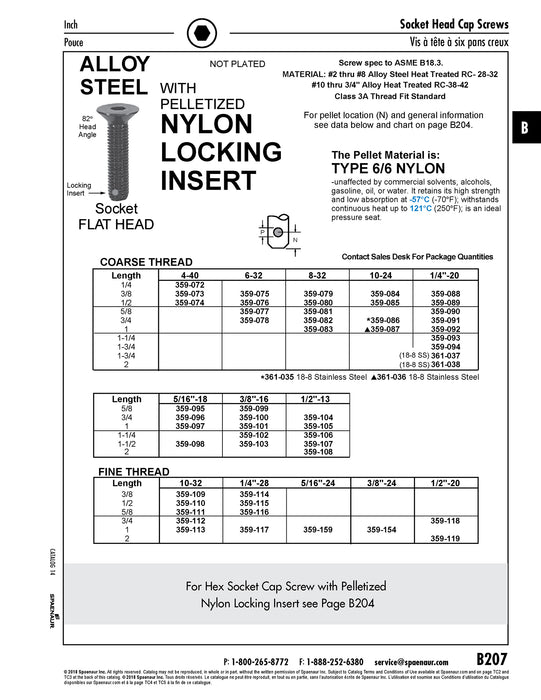

Catalog Page(s) B207
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Flat Head
Drive Type Hex Socket
Length 3/4"
Material Alloy Steel
Finish Plain
Thread Size 1/4"-20
Thread Locking Pellet Diameter .109 "
Thread Locking Pellet Location 3/16 "
Countersunk 82°
Standard ASME/ANSI B18.3
