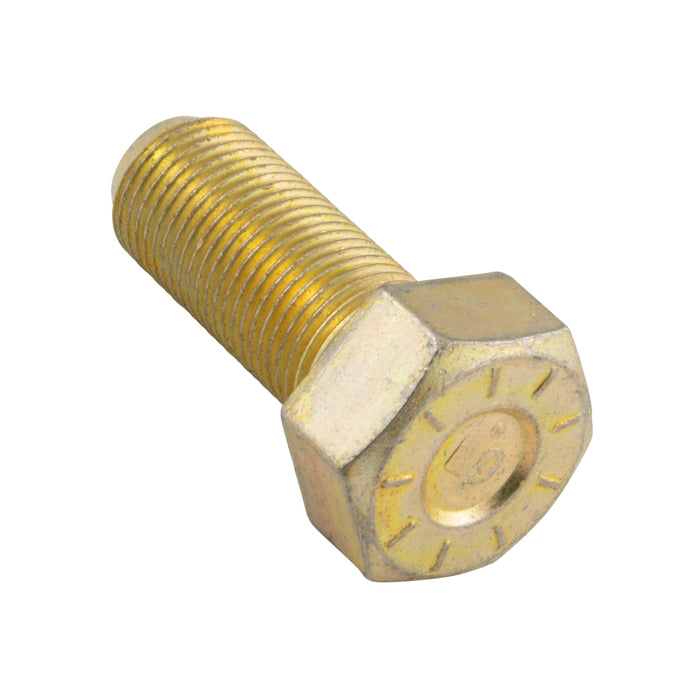

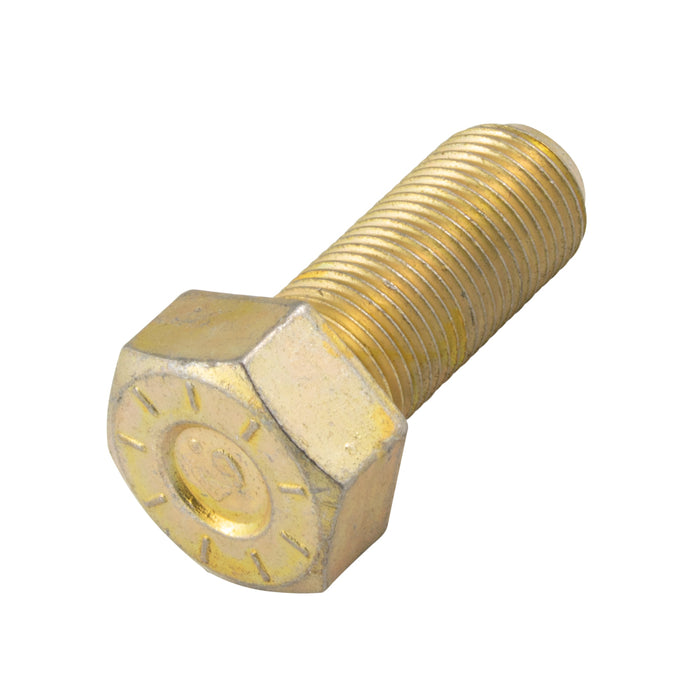

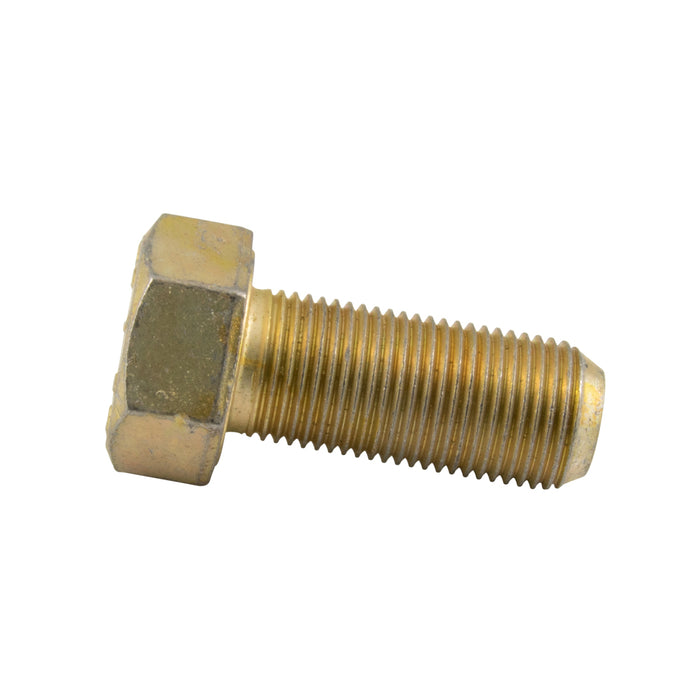

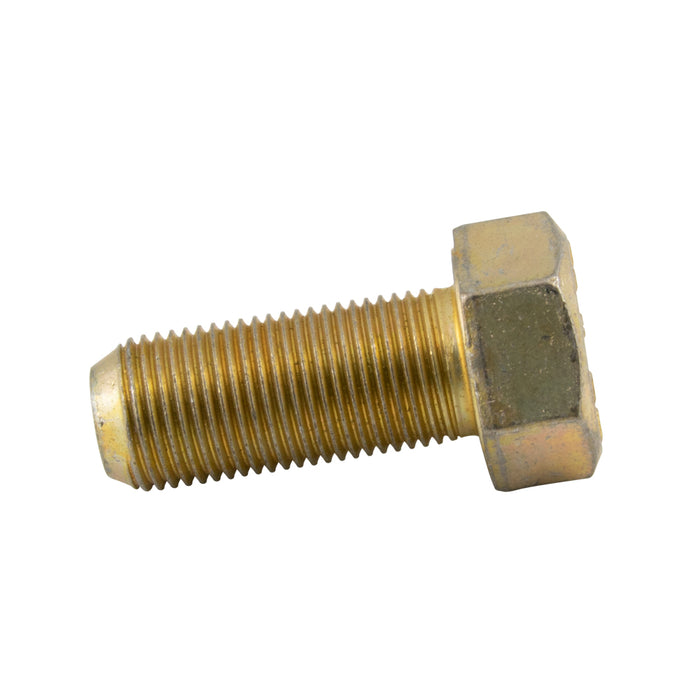

Hex Head Cap Screw, L9 Fastening 9/16"-18 UNF x 2"LONG Lamalloy L9 Zinc Dichromate-Gold

*Representative images - please refer to the product specifications for exact product information

Part Number: 329-222

Hex Head Cap Screw, L9 Fastening 9/16"-18 UNF x 2"LONG Lamalloy L9 Zinc Dichromate-Gold

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 329-222

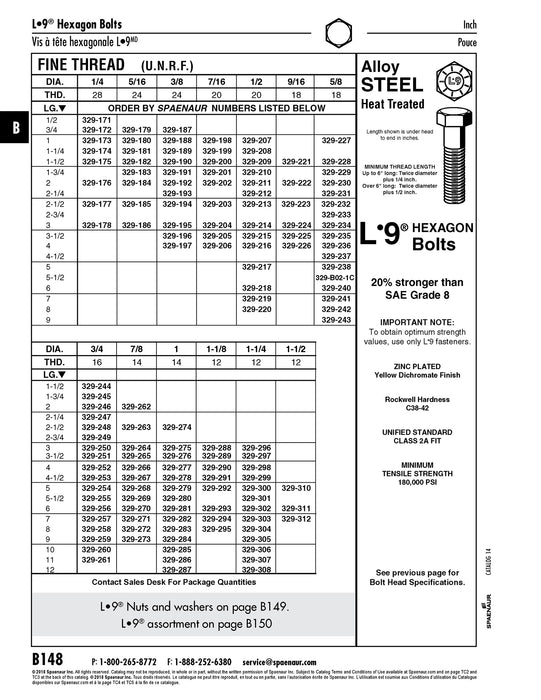

Catalog Page(s) B148
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Lamalloy
Finish Yellow Zinc Plated
Material Grade | Material Class L9®
Thread Type Partially-Threaded
Thread Size 9/16"-18
Length 2"
Head Diameter Nom 13/16";Max 0.812";Min 0.798"
Head Height Min 0.410" to Max 0.433"
Hardness C38-C42
