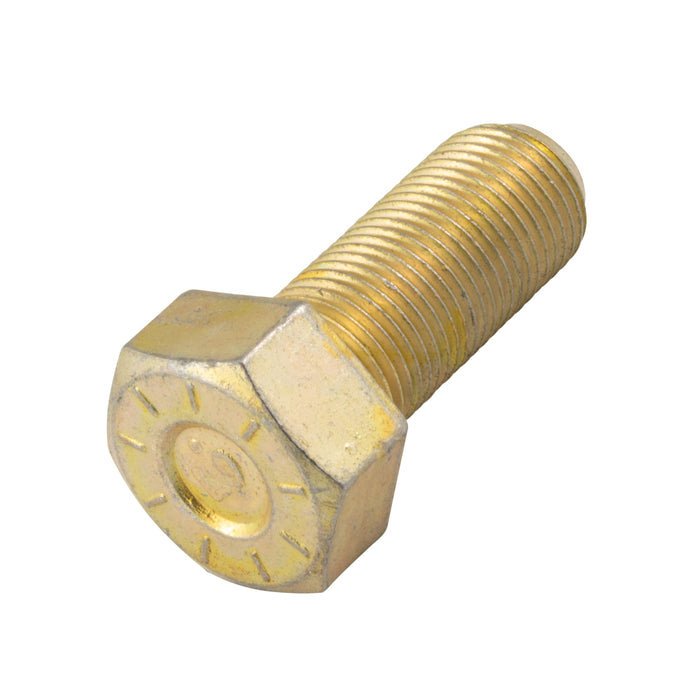

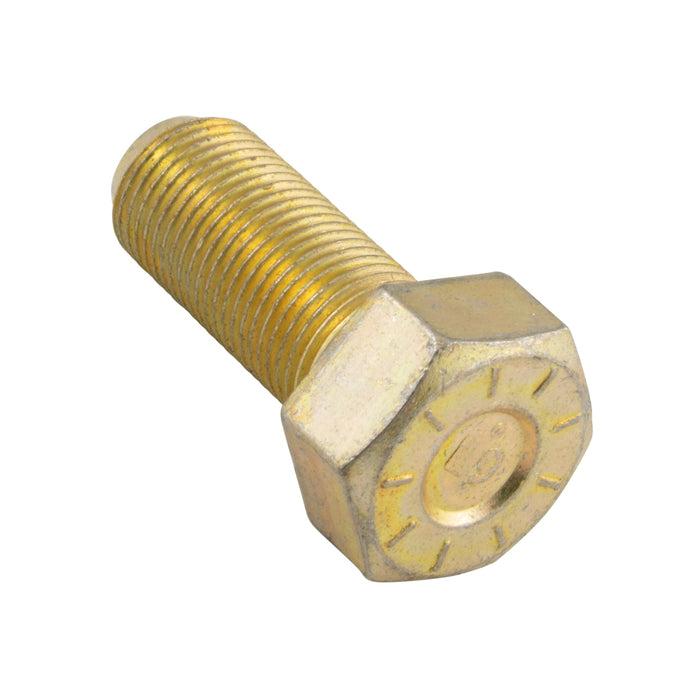

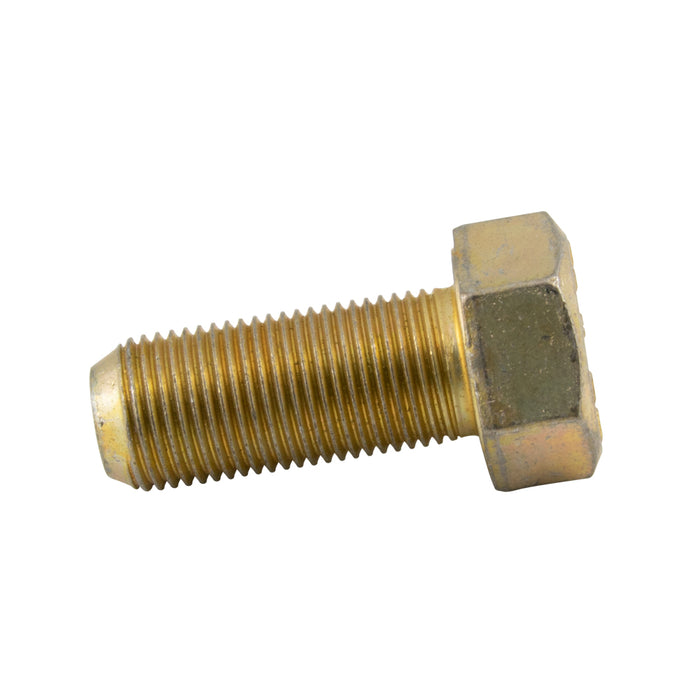

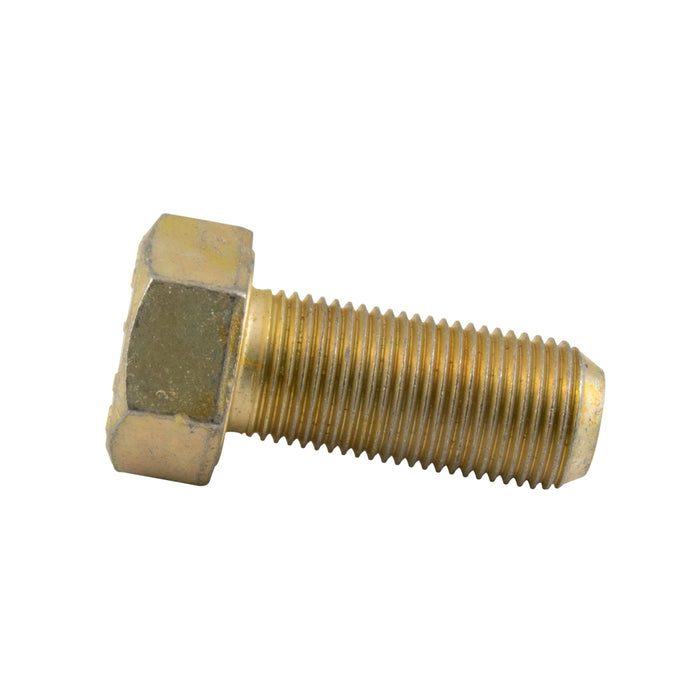

Hex Head Cap Screw, L9 Fastening 5/16"-24 UNF x 2 1/2" LONG Lamalloy L9 Zinc Dichromate-Gold

*Representative images - please refer to the product specifications for exact product information

Part Number: 329-185

Hex Head Cap Screw, L9 Fastening 5/16"-24 UNF x 2 1/2" LONG Lamalloy L9 Zinc Dichromate-Gold

Availability:
To view pricing and availability please either log in with a registered email address or register a free account.

Specifications

Part Number 329-185

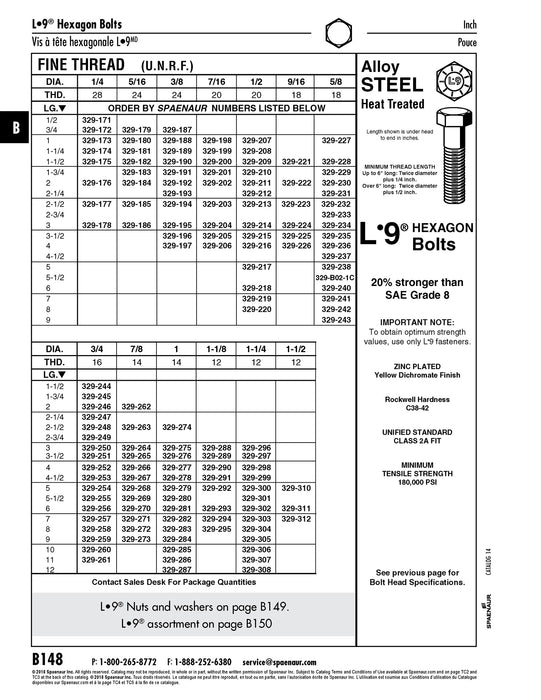

Catalog Page(s) B148
System of Measurement Imperial
ROHS Compliant [yes]
Certificate of Conformance Available [yes]
Head Type Hex Head
Material Lamalloy
Finish Yellow Zinc Plated
Material Grade | Material Class L9®
Thread Type Partially-Threaded
Thread Size 5/16"-24
Thread Class 2A
Length 2-1/2"
Head Diameter 0.489" to 0.500"
Head Height Min 0.227" to Max 0.242"
Hardness C38-C42
Tensile Strength 180,000 Minimum PSI
